IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

Categories Prime Mover Truck
Brand Name: CLW GROUP
Model Number: SINOTRUK HOWO
Certification: ISO
Place of Origin: CHINA
MOQ: 1
Price: 35600
Supply Ability: 10pcs/month
Delivery Time: 30DAYS
Packaging Details: Rain shelter fabric packaging
material: carbon steel
Engine Model: F1A / SOFIM Advanced Turbocharged Diesel Engine
Fuel Type: Diesel
Displacement: 2.0L - 3.0L
Emission Standard: Euro 5 / Euro 6 Compliant
Transmission: Manual 5/6-Speed (Automatic optional)
Brake System: 4-Wheel Disc Brakes with ABS
Oxygen Cylinders: 2 units of 10L high-pressure
Power Inverter: 500W pure sine wave
Power Sockets: 4 units of 220V
Stretcher Material: High-strength aluminum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IV-ECO Patient Transfer Ambulance with Automatic Loading Stretcher

IVE-CO Patient Transfer Ambulance Transport Type Emergency Vehicle
IVE-CO Advanced Mobile Clinic Ambulance - Fully Equipped Transport Type Emergency Vehicle
Engineered by CLW GROUP, this premium IV-ECO Transport-Type Ambulance combines professional medical configuration with high-performance mobility. It delivers a safe, hygienic, and highly responsive environment for medical transit and urgent patient transfers.
Key Product Highlights
Integrated Power & Control System
  • 500W High-Efficiency Inverter: 1 unit onboard to support critical medical hardware
  • 22V Power Sockets: 4 multi-purpose units strategically placed for easy equipment access

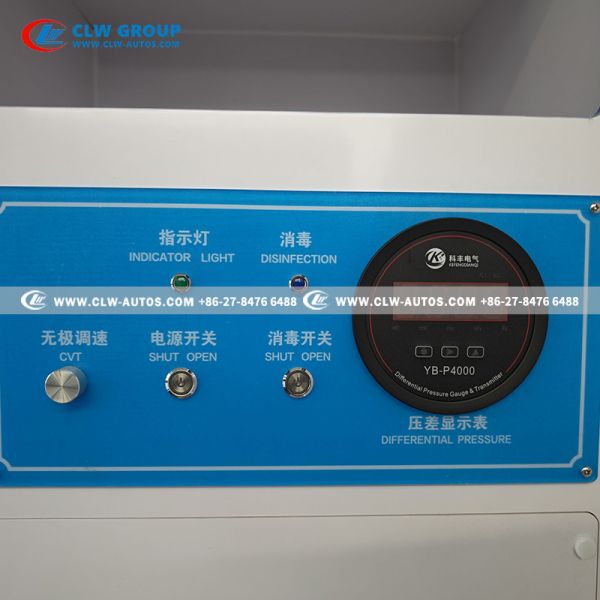

  • Central Control Panel: Features integrated control system with individual switches for ventilating fan, 220V indicator light, air-conditioning, and warm wind
Technical Specifications
CategoryItemDetailed Specifications
Vehicle OverviewManufacturerCLW GROUP
Drive Type4x2 Rear-Wheel Drive (4x4 optional for off-road demands)
Overall DimensionsApprox. 5670 × 2011 × 2740 mm (Subject to final layout)
Gross Vehicle Weight (GVW)4,000 kg
Seating Capacity7-8 seats (Flexible medical crew layout + patient bed area)
Chassis & EngineChassis BrandIVEC-O High-Rigidity Special Chassis
Engine ModelF1A / SOFIM Advanced Turbocharged Diesel Engine
Fuel Type / DisplacementDiesel / 2.0L - 3.0L High-Efficiency Turbo
Emission StandardEuro 5 / Euro 6 Compliant (Tailored to destination country)
TransmissionManual 5/6-Speed (Smooth Automatic Transmission optional)
Oxygen Supply SystemOxygen Cylinders2 units of 10L high-pressure medical oxygen cylinders
Pressure ValvesEquipped with premium dual-gauge pressure reducing valves
Cylinder CabinetDedicated secure oxygen cylinder cabinet on front right side
Power & ControlPower Inverter1 unit of 500W pure sine wave inverter for medical devices
Power Sockets4 units of 220V standard medical-grade power sockets
Central Control PanelIntegrated cabin electrical switchboard with safety indicators
Patient TransitStretcher System1 automatic loading stretcher built from high-strength aluminum

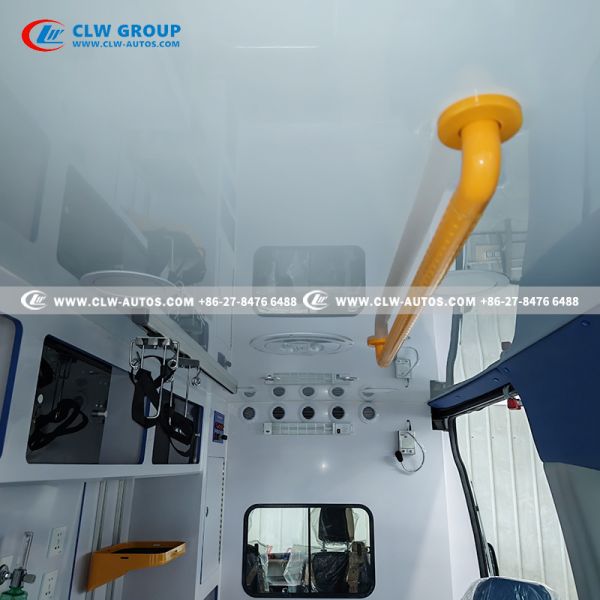

Infusion Rails1 overhead heavy-duty infusion slide rail with 2 hooks
Safety HandrailsErgonomic yellow high-visibility safety grab rail on top
Cabin EnvironmentVentilation System1 high-power electric cabin exhaust/ventilation fan
Sterilization System1 built-in ultraviolet (UV) air disinfection lamp
Partition AssemblyHigh-polymer partition wall with upper movable sliding window
Floor AssemblyEco-friendly laminated wood with wear-resistant medical flooring
Floor PropertiesFlame-retardant, anti-slip, mildew-resistant, acid/alkali-resistant
Cabinet AssemblyFlat-window medical equipment storage cabinet on rear left side
Auxiliary Seats1 doctor single seat + 1 two-person long bench with seat belts
Alert & VisualsWarning LightsLong row of high-visibility LED warning lights on front roof
Siren System100W multi-tone electronic siren with handheld control mic
Exterior MarkingsCustomizable First Aid decals, colors, and logos on request
Medical Waste1 integrated, easy-to-clean specialized waste bin
Safety EquipmentFire SafetyHeavy-duty fire extinguisher stored in rear medical cabinet
Professional Patient Care & Medical Systems

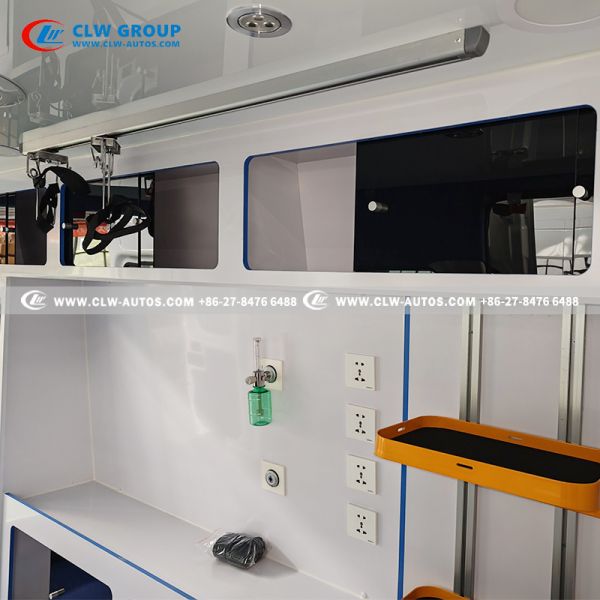

  • Gas Supply System: 2 units of 10L medical oxygen cylinders with precise pressure-reducing valves
  • Oxygen Cylinder Cabinet: Safely integrated into the front right side of the medical compartment
  • Equipment Storage: Flat-window medical equipment storage cabinet on rear left side
  • Advanced Stretcher System: Automatic loading stretcher made of high-strength aluminum alloy for smooth operation
Safety, Hygiene & Ergonomic Design
  • Full Partition Wall: High-polymer partition with movable sliding window separating driver and medical cabin
  • Seamless Communication: Built-in Intercom System for two-way communication between driver and medical crew
  • Medical-Grade Flooring: Corrosion-resistant laminated wood with flame-retardant, anti-slip, mildew-resistant properties
  • Flexible Seating: 1 single seat and 2-person bench with safety belts on left side
  • Ergonomic Fittings: Overhead infusion slide rail with hooks, yellow safety handrail, and integrated waste bin
Alert & Sterilization Systems
  • Warning System: Front-roof LED warning lights with 100W siren and handheld control
  • Sterilization System: Built-in ultraviolet (UV) disinfection lamp for cabin hygiene
  • Ventilation System: High-power electric ventilation fan
  • Customizable Exterior: First Aid markings, colors, and logos fully customizable to client requirements
