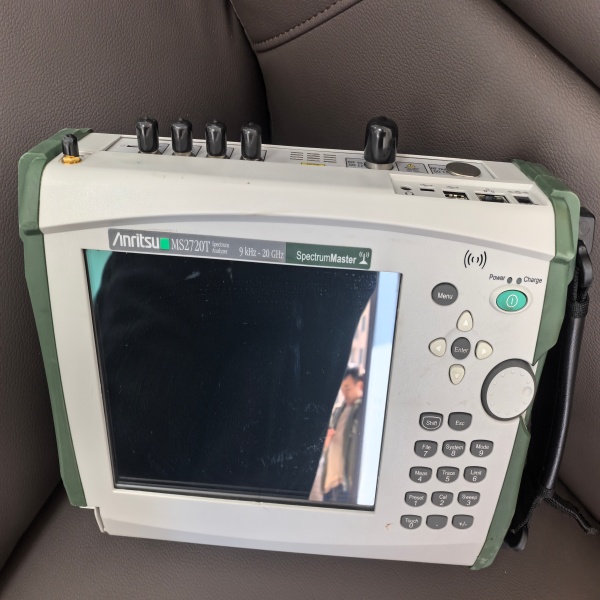

Anritsu MS2720T High Performance Handheld Spectrum Analyzer

Product Description

Features:

• Frequency Ranges: 9 kHz to 9 GHz, 13 GHz, 20 GHz, 32 GHz and 43 GHz
• Internal Atomic Clock option for the ultimate in handheld frequency accuracy
• Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Mask, Field Strength
• 3G and 4G Measurement options for LTE, CDMA, W-CDMA, WiMAX, GSM, and TD-SCDMA
• Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
• Dynamic Range: > 106 dB in 1 Hz RBW @ 2.4 GHz
• DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
• Phase Noise: –104 dBc/Hz @ 10 kHz offset at 1 GHz
• 1 Hz to 10 MHz Resolution Bandwidth (RBW)
• Tracking Generator up to 20 GHz

List of Options

007	Secure Data Operation
009	RF and Demodulation Hardware
019	High-Accuracy Power Meter (utilizes USB Power Sensor)
024	I/Q Waveform Capture (requires Option 9)
025	Interference Analyzer (Option 0031 strongly recommended because it is required for interference mapping)
027	Channel Scanner
031	GPS Receiver (requires GPS Antenna PN 2000-1528-R, 2000-1652-R or 2000-1760-R, sold separately)
089	Zero-Span IF Output
090	Gated Sweep
098	Standard Calibration (ANSI Z540-1-1994)
099	Premium Calibration (ANSI Z540-1-1994 plus test data)
431	Coverage Mapping (requires Option 31)
444	EMF Measurement System
509	AM/FM/PM Analyzer
709	9 kHz – 9 GHz Spectrum Analyzer
713	9 kHz – 13 GHz Spectrum Analyzer
720	9 kHz – 20 GHz Spectrum Analyzer
732	9 kHz – 32 GHz Spectrum Analyzer
743	9 kHz – 43 GHz Spectrum Analyzer
809	100 kHz – 9 GHz Tracking Generator (only with Option 709)
813	100 kHz – 13 GHz Tracking Generator (only with Option 713)
820	100 kHz – 20 GHz Tracking Generator (only with Option 720)
880	GSM/GPRS/EDGE RF Measurements (requires Option 9, Option 31 recommended)
881	W-CDMA/HSPA+ Measurements (requires Option 9, Option 31 recommended)
882	TD-SCDMA/HSPA+ Measurements (requires Option 9, Option 31 recommended)
883	LTE (FDD and TDD) Measurements (requires Option 9, Option 31 recommended)
884	CDMA2000 1X & EV-DO Measurements (requires Option 9, Option 31 recommended)
885	WiMAX Fixed/Mobile Measurements (requires Option 9, Option 31 recommended)
