Construction Dump Tipper for Minery Mining Construction Truck

Categories Tipper Dump Truck
Place of Origin: CHINA
Brand Name: CLW
MOQ: 1
Price: 15000-35000 per unit
Load Capacity: 31-40t
Drive Wheel: 6×4
Engine Capacity: >8L
Horsepower: 310HP-385HP
Tire Design: Tubeless
Thickness of The Box: Side 8mm, Bottom 10mm
Engine: 336HP, 371HP, 380HP
Lifting Type: Front Lifting, Middle Lifting
Usage: Transportations of Mineral, Stone, Sand, and So on
Certificate: ISO, CCC, BV, SGS
Transport Package: Naked, Waxed, Bulk Ship, RO-RO
Specification: 8860x2500x3450mm
HS Code: 8705909090
Production Capacity: 500pieces/Month
Name: Tipper Dump Truck
Model Number: CLW
Payment Terms: 50% Deposit,Balance should be paid before ship out
Supply Ability: 10unit per month
Model NO.: CLW6688ZXCA05
Emission Standard: Euro 2
Seats: ≤5
Tire Certification: ECE, GCC, ISO
Dumping Type: Middle and Front Lifting Style
Condition: New
Delivery Time: 35 Days
Tire: Radial Tire 12.00r20 or Tubeless Tire 12r22.5
Dump Material: Carbon Steel Q235
Oil Cylinder Brand: International Brand Hyva or Chinese Brand
Color: as Customer's Request
Testing: Products Inspection Before Shipment
Warrenty: 1 Year
Trademark: CLW
Origin: Suizhou, China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

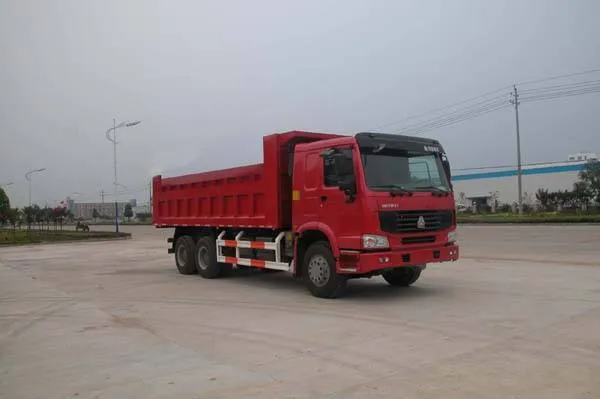

Construction Dump Tipper for Minery Mining Construction Truck

6X4 HOWO LHD 30tons 35tons 18cbm Construction Dump Tipper for Minery Mining Construction Truck
Product description:

Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,FOTON...

Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.

Used in construction site for transportation of mineral,stone,sand and so on.

Specification of dump truck:
ConditionNew condition/Left hand drive/6x4

















Chassis

BrandSINOTRUK
ModelHOWO
Curb weight(kg)12400 kg
Axle loading(Front/Rear)(kg)7000/16000/16000kg
Wheelbase(mm)3800+1350 mm
Dimensions(mm)8560*2490*3430 mm
Wheel track (front/rear) (mm)2036/1860/1860 mm
Front/Rear overhang(mm)1525/1660 mm
Approach/Departure angle(°)28/18
Max. driving speed(km/h)95 km/h
ClutchReinforced diaphragm clutch
Fuel tank volume(L)300 L
Brakes

Service brake: dual circuit compressed air brake.
Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels.
Auxiliary brake: engine exhaust valve brake

Steering GearPower steering, hydraulic steering with power assistance
TireQuantity10pcs with one spare tire
Specifications12R22.5
TransmissionManual type, 10 Forwards and 2 reverses
CabinIt can accommodate three people, With Air conditioner.







Engine

BrandSINOTRUK
Fuel typeDiesel
Displacement(ml)9726 ml
Power(kw)235 kw
Horsepower(HP)310-385 HP
Cylinder number6
Emission standardEuro 2









Upper

Size(mm)5400*2300*1600 mm
Max. Loading weight(kg)35 tons
Button Thickness(mm)8.0 mm
Side plate Thickness(mm)6.0 mm
MaterialQ235 Carbon steel
Tipping typeMiddle Tipping
Oil cylinder brandChina local brand
Oil cylinder size(mm)220 mm
Remarks1. Color is optional
