| Categories | Garbage Truck |
|---|---|
| Certification: | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Model Number: | CLW |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
| Place of Origin: | CHINA |
| Brand Name: | CLW |
| Model NO.: | CLW6688YSLJCA32 |
| Volume: | 6001-10000L |
| Emission Standard: | Euro 3 |
| Transmission Type: | Manual |
| Payload: | 4tons, 5tons |
| Fuel: | Diesel |
| Drive Wheel: | 4×2 |
| Brand: | JAC |
| Models: | Small |
| Usage: | Dump, Swing Arm Type, Sealed, Hang Barrel Type, Arm Type, Compression Type, Eat Hutch Type |
| Condition: | New |
| Chassis Brand: | Dongfeng, Foton, Sinotruk, JAC, etc. |
| Compression Ratio: | 0.72~0.8 Ton/M3 |
| Logo: | as Per Customer's Request |
| Garbage Box Thickness: | Side 4mm, Bottom 4mm, Carbon Steel |
| Hydraulic Systemtime: | One in Cab, One on The Back of The Truck |
| Hopper Volume: | 0.8cbm |
| Dirty Water Tank Volume: | 0.2cbm |
| Loading Capacity: | 4tons, 5tons, 6tons |
| User Manual: | Yes |
| Operating Video: | Yes |
| Horsepower: | 125HP or 140HP |
| Wheelbase: | 3360mm, 3815mm |
| Cabin: | 2/3 Persons with A/C |
| Transport Package: | Naked, Waxed, Bulk Ship, RO-RO |
| Specification: | 6tons, 8cbm |
| Trademark: | CLW |
| Origin: | Suizhou, China |
| HS Code: | 8705909090 |
| Production Capacity: | 500 Unit/Month |
| Name: | Garbage Truck |
| Company Info. |
| Chengli Special Automobile Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
| JAC 6cbm or 8cbm Garbage Refuse Compactor truck | |||||
|---|---|---|---|---|---|
| Overall Dimension | 7400×2250×2750 mm | Gross Vehicle Weight | 8280 kg | ||
| Curb Weight | 6430 kg | Loading Weight | 1655 kg | ||
| Wheel Base | 3360 or 3800 mm | Front / Rear Axle | 2500 kg / 6000kg | ||
| Cabin | Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio, | ||||
| Engine horsepower | 140HP, EURO III | ||||
| Max Driving Speed | 90 km/h | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear, | ||||
| Tire | 7.00R16 (6 pieces with one spare) | ||||
Garbage Bin | Capacity | 8CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body | ||||
| Design | Whole unit with Leakage Proof Design | ||||

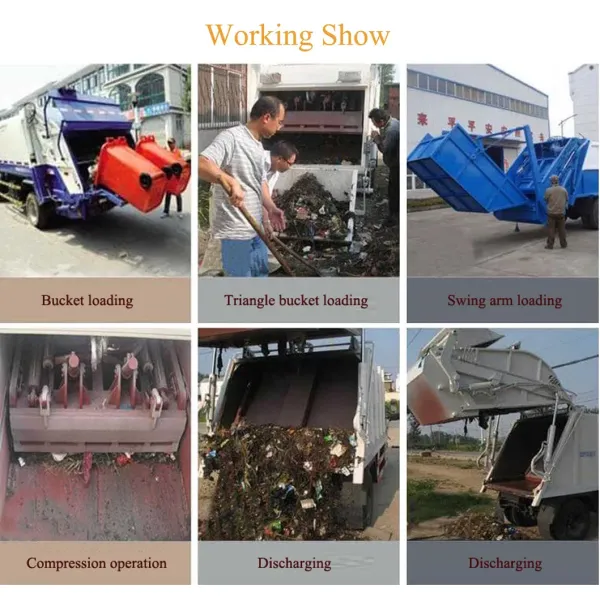

| Ways of Loading | Rear Loading with optional Bucket Lifting System | ||||
| Garbage Compact Ratio | 1/3 - 1/4 | ||||
| Control System | One control Panel on the back, One Control system in back of Cabin | ||||
Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system. | ||||
| 2. Automatic loading, compressing and discharging, all handled by 1 person | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation | |||||
| Dependable Security | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s | |||||
| Remarks | 1. Color is optional | ||||
| 2. Customized LOGO painting as per customer request. | |||||




|
