| Categories | Rectangular Connector |
|---|---|
| Low pressure: | 4.4 KPa, 150 V |
| Environmental temperature: | -55°C to +125°C |
| Model Number: | MDC1-15SW1 |
| Price: | 10$-500$ |
| Impact: | 490 m/s² |
| cInsulation resistance: | ≥5000 MΩ |
| Contact resistance: | ≤12 mΩ |
| Payment Terms: | L/C,T/T,Western Union |
| MOQ: | 10pcs |
| Mechanical lifespan: | 500 insertion and removal cycles |
| Relative humidity: | +40°C, 98% |
| Supply Ability: | 10000pcs per month |
| Brand Name: | Jovelix |
| Place of Origin: | China |
| Delivery Time: | 2-9weeks |
| Vibration: | 10 Hz to 2000 Hz, 196 m/s 2 |
| Rated current (maximum): | 2A Max |
| Certification: | AS9001 |
| Pressure rating: | 500V |
| Packaging Details: | standard export package |
| Company Info. |
| Wuxi Juhuili Technology Development Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The MDC1 Series Micro-Rectangular Electrical Connector is a compact, lightweight, and high-density interconnect solution designed for reliable electrical signal transmission in miniaturized electronic systems. With a 1 mm contact pitch and 0.866 mm row spacing, this series provides stable connection performance while saving installation space.

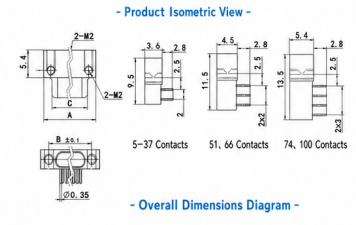

The product range includes 5, 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100-pin configurations, offering flexible options for different circuit density requirements. It supports conductor crimping cross-sections from 0.035 mm² to 0.1 mm², making it suitable for compact wiring layouts and high-density equipment integration.
With vibration resistance from 10 Hz to 2000 Hz at 196 m/s², impact resistance of 490 m/s², an operating temperature range of -55°C to +125°C, and a mechanical life of 500 mating cycles, the MDC1 Series provides reliable performance for demanding miniature interconnection applications.
| Order number | Classification Feature | Category Content | Label Code |
|---|---|---|---|
| 1 | Subject Code | Micro-rectangular connector | MDC1 |
| 2 | Number of contact points | Number of contact points | Represented in Arabic numerals |
| 3 | Types of Contact Parts | Pin contact piece | P |
| Plug contact piece | S | ||
| 4 | Product type | Closed type | M |
| 5 | End termination type | Crimping(with wire) | Not labeled |
| Weld | S | ||
| Straight PCB Solder Mount | N | ||
| Right-angle PCB Solder Mount | W | ||
| Vertical Label Type | N1 | ||
| 6 | Installation Attachment | Free-end locking accessory | L |
| Fixed-end installation accessory | P |
|
