Product Overview
The YPM-TLT Textile RFID Laundry Tag Personalization Machine is a professional all-in-one intelligent equipment specially
developed for mass personalization, data encoding, quality
inspection and laser marking of custom-shaped textile RFID laundry
tags. It is also widely known as the RFID Linen Tag Personalization Machine or Washable Electronic Tag Personalization Machine. This machine integrates automatic feeding, UHF chip encoding,
performance testing, visual laser marking, NG rejection and
finished product counting into one fully automated workflow,
realizing high-efficiency and high-precision one-stop production
for washable RFID textile tags.
Core Advantages & Features
Equipped with a state-of-the-art visual intelligent grasping system, the YPM-TLT machine breaks the limitations of traditional
fixed-fixture processing equipment. It can independently identify
the irregular shapes, different sizes and random placement
positions of special-shaped textile RFID laundry tags, realizing
automatic, flexible and accurate robotic arm grabbing and
positioning. This intelligent grasping technology perfectly solves
the industry main point that traditional devices cannot stably
process non-standard flexible textile materials, greatly improving
the compatibility of diverse tag products. Furthermore, equipped
with a high-precision visual laser marking module, the machine
features intelligent pattern recognition and automatic position

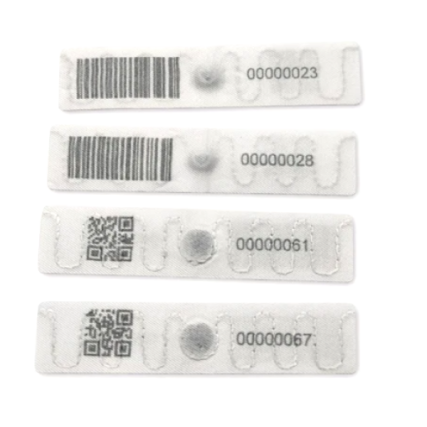

calibration. It can accurately locate the blank marking area of
each tag, and clearly print variable UID numbers, custom data
codes, brand logos and anti-counterfeiting marks without offset,
blurring or ghosting, delivering ultra-fine and durable marking
effects.
This machine is fully compatible with mainstream high-performance
UHF chips in the industry, especially Ucode 8 and Ucode 9 chips which are widely used for laundry-resistant RFID tags. It supports
comprehensive one-stop chip processing functions, including
automatic UID reading, custom user data writing, access key
modification, data encryption and full electronic performance
testing. During operation, the system intelligently judges chip
validity, data writing accuracy and tag electrical performance. All
defective products such as empty chips, damaged chips, unreadable
tags and data writing failure products will be automatically
screened and rejected. This strict real-time quality inspection
mechanism ensures zero defective products in finished output,
effectively guaranteeing stable and consistent product quality for
mass production.
Wide Application & Industry Value
RFID textile laundry tags (also known as RFID linen tags) are core
consumables for intelligent industrial laundry and asset
circulation management, with excellent characteristics of high
temperature resistance, water washing resistance, chemical
corrosion resistance, bend resistance and long-term reusability.
Correspondingly, the YPM-TLT machine is tailored for the
personalized batch production of such special flexible tags, with
extremely wide application coverage. It is widely applicable for
intelligent tracking and management of hotel linen, hospital medical textiles, enterprise staff uniforms,
school student uniforms, commercial towels, bedding products,
catering work clothes and all washable circulating textiles. These tags can withstand repeated high-temperature washing, dry
cleaning and ironing, and can be recycled for multiple years,
helping enterprises realize full-life cycle asset tracking,
transparent inventory management and efficient laundry scheduling.
For tag manufacturers and customized processing factories, the
YPM-TLT intelligent equipment solves many production bottlenecks in
traditional laundry tag processing, such as single processing
function, poor compatibility, low manual positioning accuracy, low
efficiency and high defective rate. It integrates feeding, chip
encoding, performance testing, laser marking, defective rejection
and counting collection into one fully automatic workflow. It can
flexibly meet mass standardized production and small-batch
personalized customized orders, effectively improve product added
value, realize anti-counterfeiting and traceability of laundry
tags, and greatly enhance market competitiveness for processing
enterprises.
Full Automatic Working Process
Automatic tag feeding → UHF chip data encoding (UID reading / data
writing / key modification) → Visual precise laser marking → NG
defective product rejection → Automatic finished product counting &
collection
Functional Module Introduction
- Material Feeding Module: Stable material storage and automatic continuous feeding to
ensure uninterrupted production.
- Visual Intelligent Grabbing Module: Real-time position identification and automatic robotic arm
grasping, suitable for irregular textile tags.
- Vacuum Conveying Module: Precise vacuum adsorption transportation ensures stable and
accurate station delivery.
- Multi-frequency Chip Processing Module: Supports LF, HF and UHF chip reading, writing, encryption and
performance testing.
- Visual Laser Marking Module: Intelligent positioning and high-definition variable data marking
for personalized content.
- NG Rejection Module: Automatically removes non-chip, unreadable and writing-failed
defective products.
- Automatic Counting & Collecting Module: Real-time quantity statistics and classified box collection.
Machine Technical Parameters
- Overall Dimension: 1120mm (L) × 800mm (W) × 1500mm (H)
- Machine Weight: 220 KG
- Power Supply: AC 220V, 50/60Hz, 1.5KW
- Compressed Air Requirement: ≤6.5 KG/CM²
- Control System: Industrial Computer + High-precision Visual Positioning System
- Applicable Materials: All sizes of textile RFID laundry tags embedded with U8 / U9
chips
- Working Speed: 2000–2500 pieces per hour
Key Selling Points
- Fully Automatic Integrated Operation: Realizes unmanned full-process production from feeding, encoding,
marking, testing to finished product collection, drastically saving
labor costs and improving production efficiency.
- Strong Compatibility & High Flexibility: Adopts visual intelligent positioning, no need for custom
fixtures, supports all sizes and irregular-shaped textile laundry
tags with U8/U9 chips, adapting to diverse customized orders.
- High-precision & Stable Performance: Matches industrial computer control system and high-end visual
recognition technology, ensuring accurate encoding and zero-offset
laser marking with stable long-term operation.
- Strict Quality Control: Real-time automatic detection and NG rejection eliminate
defective products, guaranteeing 100% qualified finished products
and reducing material waste.
- Multi-functional Integration: Supports LF/HF/UHF multi-frequency chip reading, writing and
encryption, meeting diverse chip personalization and processing
demands.
- High Production Efficiency: Stable working speed reaches 2000-2500 pieces per hour, suitable
for large-scale mass production and fast order delivery.
- Compact & Easy Maintenance: Reasonable overall structure, small floor space, low failure rate
and convenient daily maintenance, suitable for formal factory
production lines.
