PCB Desktop Selective Coating Machine
Professional manufacturer of cost-effective PCB desktop selective
coating machines for precision conformal coating applications.
Application Scope
- Selective spraying of PCBA components and solder surfaces
- Multi-panel and offline spraying operations
- Small batch trial production and assembly line applications
- Limited space environments and research facilities
Main Features
- Desktop bench design with sheet metal cover for odor containment
- Intuitive air pressure adjustment with 2-axis positioning
- Teaching functions for points, lines, arcs, and irregular curves
- User-friendly teaching box with streamlined operation interface
Application Fields
- Automotive electronics: vehicle control boards, BMS, lamp PCBs
- New energy: battery protection boards, inverter & energy storage
PCBs
- Industrial control & security: controllers, cameras, access-control
boards
- Consumer electronics: home appliances, smart wearable circuit
boards
- Medical electronics: precision medical equipment PCBs
- Communication: routers and communication module PCBs
Technical Specifications
| Parameter Type | HN-VisionT400 | HN-VisionT600 |
|---|
| PCB Spraying Range | X=400mm, Z=100mm | X=600mm, Z=100mm |
| Platform Configuration | Single Y: X=400mm, Y1=400mm | Double Y: Y1=Y2=600mm |
| Drive System | Stepper motor + synchronous belt module |
| Maximum Speed | X/Y: 600mm/s; Z: 300mm/s |
| Repeatability | ±0.03mm |
| Valve System | Multiple valve body combinations available |
| Dimensions | 660×600×660mm | 860×800×660mm |
| Power Requirements | AC220V 50-60Hz; 1.0KW |

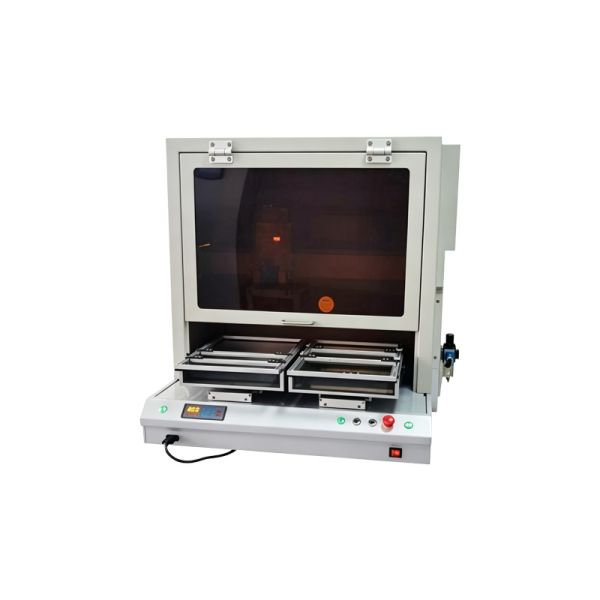

Our compact desktop coating machine features three-axis precision
transmission for selective and precise spraying. Automatic
connector and plugin avoidance eliminates manual shielding, saving
materials while ensuring complete three-proof protection.
Versatile compatibility with UV, acrylic, and silicone conformal
coatings. Quick valve body replacement enables fast changeover
between coating types. Customizable stroke, valve group, and body
configurations available for industrial control boards, power
boards, and automotive electronic circuit boards.
Safety Precautions
- Operators must be familiar with equipment procedures - no hands or
objects in spraying area during operation
- Maintain proper ventilation, avoid open flames and high temperature
sources
- Regular cleaning of valve body, material cup, and work surface
after each use
- Professional maintenance of motion guide rails and transmission
components
- Factory-tested equipment with warranty coverage for non-human
damage
- On-site installation, training, and technical support provided
Customer Feedback
"The CNSMT desktop selective coating machine provides precise
spraying and compatibility with various three-proof paints. High
efficiency for small batch sampling with low equipment failure
rate. Excellent after-sales response and on-site training. High
cost-effectiveness ensures continued cooperation."
Frequently Asked Questions
Coating Machine Model Comparison
- Needle Valve Type: No splashing, paint-saving, suitable for high viscosity silicone
paint; lower efficiency, ideal for small area precision sampling
- Spray Type: Fast coating, uniform film formation, suitable for acrylic paint;
slight overspray, preferred for mass production of conventional
power boards
- Spray Valve (Visual Version): CCD precise avoidance, UV paint compatible, high precision; higher
cost, preferred for automotive electronics and high-precision PCBs
Certifications
CNSMT specializes in R&D and production of desktop selective
conformal coating machines for the PCB industry. Our equipment
supports non-standard customization to meet diverse production
demands with precise coating and cost-effective pricing.
Contact Information
Phone: +8613537875415
Email: Lizzy@smtlinemachine.com
Address: Xintian Industrial Area, Baoan, Shenzhen City, China
