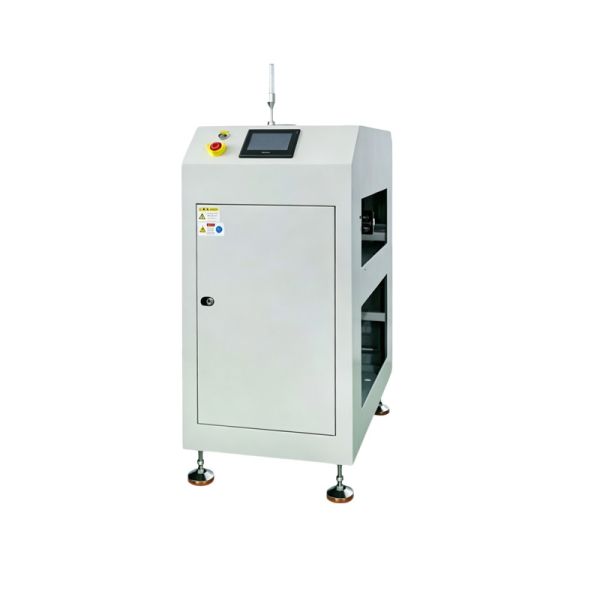

SMT Circuit Board Automatic Lift/Assembly Line PCB Automatic
Flipping Machine
Advanced automation equipment designed for SMT production lines,
providing efficient PCB lifting and flipping solutions for
electronic manufacturing processes.
Scope of Application
- Applicable to SMT coating production line and non-standard
equipment production line
Key Features
- PLC + touch screen control with fault sound and light alarm and
menu display
- Equipped with SMEMA communication signal port
Application Fields
- SMT patch production line for PCB feeding, lifting and board
turnover before & after reflow soldering
- PCB post-process: AOI inspection, conformal coating, component
insertion
- New energy industry: energy storage PCB, power supply & battery
circuit board manufacturing
- Industrial control & home appliance circuit board automated
assembly line
Technical Specifications
| Specification | HN-L450 Automatic Elevator | HN-F180 Automatic Flipping Machine |
|---|
| Work direction and PCB edge space | Left L <--> Right R; PCBA process edge ≥ 5mm |
| Transport height and maximum height of components | 920 ± 20mm: 100mm above and 90mm below the chain surface |
| Conveying speed | 2-5m/min | 8-13m/min |
| Transmission motor and amplitude modulation method | Stepper motor, electrically adjustable track width, amplitude
modulation width 50-460mm |
| Drive Type | Motor+chain driven lifting | Motor+synchronous belt driven flipping |
| Equipment stroke | Lifting height 450mm | Flip 180° |
| Overall dimensions | L640*W1000*H1350 (mm) | L640*W1100*H1350 (mm) |
| Equipment air pressure and power supply | ≥0.4Mpa, AC220V 50-60Hz |
| Total power consumption and weight of the equipment | 0.8KW, Approx. 180Kg |
| Control mode and communication port | PLC+touch screen, SMEMA communication signal port |
Our factory specializes in supplying PCB automatic elevators,
circuit board lifting equipment, SMT loading and unloading
elevators, as well as PCB automatic flipping machines, circuit
board flipping machines, and SMT flipping equipment. We are the
core automation auxiliary equipment supporting SMT assembly lines.
The PCB automatic flipping machine is specially designed for the
production process of circuit boards, suitable for various
conventional and non-standard PCB circuit boards, widely used in
electronic SMT, testing, assembly, coating and other processes.
The PCB lifting equipment runs smoothly and has adjustable lifting
height, which can efficiently complete the material transfer work
on the SMT production line, effectively connect various production
processes, and prevent board collision and damage. The supporting
SMT flipping equipment can quickly complete the flipping conversion
of circuit boards, meet the production needs of double-sided
surface mounting and double-sided inspection, and greatly improve
the automation level of the production line.
The entire equipment is easy to operate, highly compatible, and has
a low failure rate. It supports docking with automated assembly
lines and can be customized with non-standard models as needed. The
equipment has high cost-effectiveness, stable quality, and is
popular in domestic and foreign markets. At the same time, it is
equipped with comprehensive after-sales service, providing
installation, debugging, and technical support to help enterprises
reduce costs and increase efficiency.
Precautions for Use
The equipment must be grounded in compliance and operate at rated
voltage. Overloading, forced lifting, and flipping are strictly
prohibited. During operation, it is prohibited to reach out and
touch the transmission parts. Non technical personnel are not
allowed to disassemble or modify the parameters without
authorization. Regular cleaning, maintenance, and inspection of the
air and electrical circuits are also required.
After Sales Maintenance Guarantee
Complete machine warranty, free maintenance for non-human faults.
Malfunctions can be quickly investigated and guided remotely, and
difficult problems can be repaired on-site. Lifetime cost price
provides original factory accessories, full process technical
support, equipment calibration, and after-sales follow-up services.
Customer Feedback and After-Sales Communication
The lifter and PCB flipper run smoothly and improve production
efficiency with low failure rate. After-sales responds quickly for
guidance and onsite service. Reliable quality and thoughtful
support gain high customer satisfaction and repeat orders.
Frequently Asked Questions
- What PCB boards and production lines are the devices compatible
with?
General SMT circuit boards, new energy PCBs, and industrial control
circuit boards can be connected to standard SMT assembly lines,
support non-standard customized fixtures and models, and adapt to
the production of multi specification boards. - What should I do if the equipment runs stuck, and the
lifting/flipping is not smooth?
First, stop the machine and cut off the power to check for
overloading of the board, dust accumulation and jamming in the
transmission parts, and incorrect parameter settings. Simple faults
can be remotely guided for debugging, and complex problems can be
arranged for engineers to come and inspect. - Can the device adjust speed and height?
Support speed regulation, height adjustment, timed start stop,
parameters can be set with one touch screen, easy to operate,
adapted to the production rhythm of different processes. - How to ensure after-sales warranty and accessories?
Complete machine warranty, free maintenance and replacement for
non-human faults; Lifetime cost price supply of original
accessories, providing remote technical support, equipment
calibration, and regular maintenance consulting services.
Certification
CNSMT specializes in manufacturing SMT PCB automatic lifters and
turnover machines. Durable and stable equipment fits SMT,
inspection and coating processes. Cost-effective products sell well
globally. We offer full after-sales including commissioning,
training and maintenance, winning wide trust from electronics
manufacturers worldwide.
