0 Degree PM Fiber Array, 250μm Pitch PMFA, Slow Axis Alignment Key PMFA, PM II Alignment Fiber Array

1. Product Overview

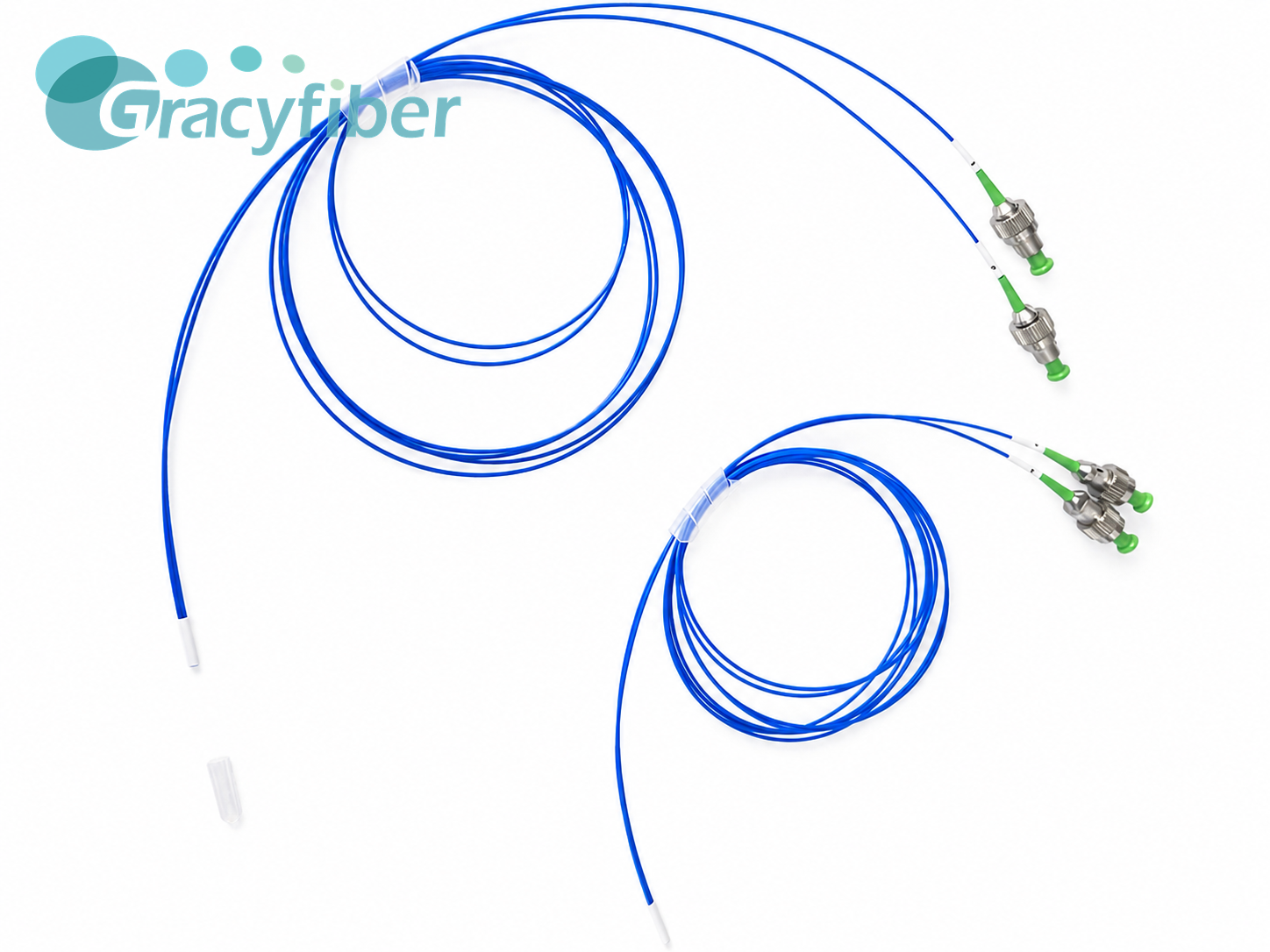

Gracyfiber's 8-channel polarization-maintaining fiber array (8CH PM FA) utilizes a high-quality quartz glass substrate and PM980XP polarization-maintaining fiber, specifically designed for optical systems with extremely stringent polarization requirements.

2. Core Product Features

Parameters	Unit	Spec.	Value
Channel	/	24	OK
Material	/	Quartz Glass	OK
Channel Spacing	μm	127	OK
Polishing Angle	Degree	0°	OK
Package(L)X(W)X(H)	mm	125.71.5	OK
Insertion Loss	dB	≤0.3
Extinction Ratio	dB	≥18	25
FA PM Fiber Alignment	/	PMII	OK
Connctor PM Fiber Alignment	/	Slow Axis Alignment Key	OK
Fiber Type	/	PM1550(Corning)	OK
Fiber Tube	mm	0.9	OK
Tube Color	/	Blue	OK
Length	m	1±0.1	OK
Connector	/	FC/APC	OK
Operating Temperature (℃)		0～65	OK
Storage Temperature (℃)		-40～85	OK

8-channel quartz glass substrate array, 250μm standard channel pitch, 0° end-face polishing
Utilizes PM980XP polarization-maintaining fiber with 0.9mm blue loose tubes
Ultra-low insertion loss (≤0.3dB) and high extinction ratio (≥18dB)
FC/APC connector with high-precision polarization alignment (slow axis key)
10×3.5×1.5mm ultra-compact package, supporting stable operation over a wide temperature range of 0~65℃

3. Application Areas

Silicon Photonics and PIC co-packaged interconnects
High-speed coherent optical communication modules
Polarization-maintaining waveguide devices and polarization-maintaining splitter (PM PLC Splitter) coupling packages
Fiber optic sensing systems and high-precision fiber optic gyroscopes (FOG)
LiDAR and polarization-sensitive optical testing equipment

Product Tags:

0 degree PM fiber array

250μm pitch PMFA

slow axis alignment PMFA
