High precision SMT PCB whole board coating machine

High Precision Whole Board Coating Machine
Application Scope
Suitable for multi-industry coating applications including:
  • Solder surface spraying on entire component surfaces
  • Large-area spraying of multi-panel panels
  • Solder surface spraying of plant lighting strips
  • LED large-pitch displays
V1/V1S Device Features
  • High-precision pressure regulating valve for accurate atomization air pressure adjustment
  • Open model material conveying track with special stainless steel chain and wear-resistant strips for extended lifespan
  • Dual transmission mechanisms for track amplitude adjustment ensuring long-term stability
  • Windshields at rail inlet/outlet with independent exhaust ports to improve workshop environment
  • Fault sound and light alarm with user-friendly menu display interface
Optional Functions
Intelligent paint capacity detection, automatic valve cleaning, automatic chain cleaning (available only for Vision1S)
Technical Specifications
Types ofProjectHN-Vision1HN-Vision1S
Coating parametersY-axis travel and component maximum heightY=420mm; 70mm above and 70mm below the chain surface
PCB edge space and single coating widthPCBA process edge ≥ 5mm: 2-30mm (small atomization, large atomization)
Y-axis drive modeStepper motor+belt moduleServo motor+belt module
Y-axis maximum running speed600mm/s
Conveyor systemWorking directionLeft L - Right R (standard), (right R - left L optional)
Conveying height and conveying speed920±20mm; 2-13m/min
Transmission motor and amplitude modulation methodAdjustable speed motor, speed digital display; Manual adjustment of track width, amplitude modulation width 50-460mm
Spray valve configuration systemValve arrangementConfigure 1 spray valve
Atomizing air pressure adjustmentPrecision pressure regulating valve+digital mechanical meter

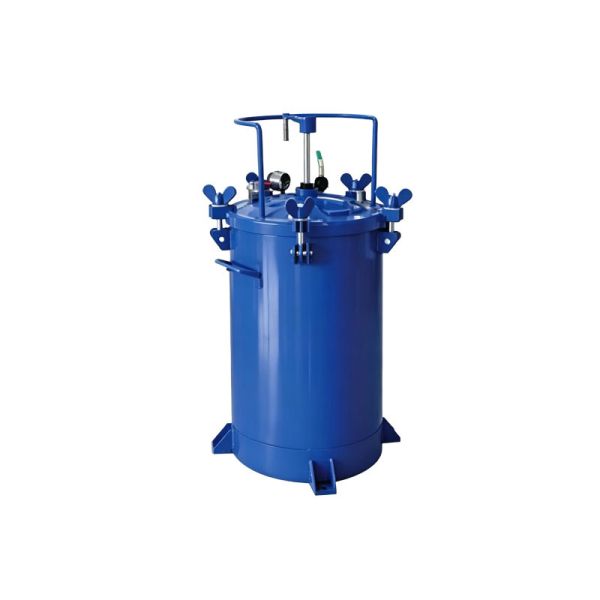

Feeding systemEquipped with a 10L pressure glue supply bucket and a 2L stainless steel cleaning bucket
Equipment site requirementsDimensionsL1060*W930*H1700(mm)L1060*W1000*H1700(mm)
Equipment weightApprox. 320KgApprox. 480Kg
Equipment air pressure≥0.4Mpa
Exhaust air volume requirements900m²/h, The diameter of the exhaust outlet is 100mm900m²/h, Exhaust outlet diameter φ150mm * 1
Device power and total power consumptionAC220V 50-60Hz 1.2KW
Control methodPLC + touch screen
PCB Whole Board Coating Machine Overview
The PCB whole board coating machine is an automated three-proof processing equipment specially designed for comprehensive protection of circuit boards. Also known as circuit board whole board coating equipment or PCB whole board spraying machine, it is widely used in batch protection production for SMT electronic manufacturing, industrial control, new energy, and home appliance industries.
This intelligent device replaces traditional manual painting and soaking processes, providing full coverage spraying of entire PCB circuit boards. It eliminates limitations of local spraying and achieves uniform coating of board surfaces, component surfaces, and pin gaps in all directions.
PCB coating machine technical details
Precision Coating Technology
Relying on high-precision spraying control systems, the equipment precisely adjusts glue amount, spraying speed, and atomization effects. This ensures uniform coating thickness while eliminating problems of missed coating, glue accumulation, and uneven thickness.
The resulting dense and stable three-proof protective film provides moisture resistance, insulation, corrosion prevention, salt fog resistance, and aging protection, significantly improving electronic product stability and lifespan.
Material Compatibility & Automation
With strong adaptability, the equipment is compatible with various conventional three-proof paints including acrylic, polyurethane, and silicone. It meets spraying needs for different viscosity coatings and protection requirements for both ordinary and precision circuit boards.
Supporting continuous batch operations with high automation levels, it eliminates manual repeated coating, greatly improving production efficiency while reducing labor costs and coating losses.
Operational Advantages

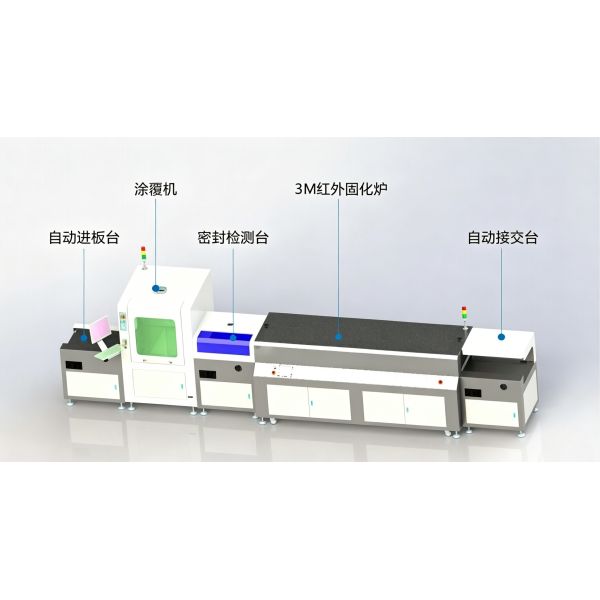

The PCB whole board coating machine features stable operation, simple controls, convenient maintenance, and strong universality. It can integrate with automated production lines or operate independently as a single machine, making it ideal for both small processing plants and large electronic manufacturing enterprises upgrading their circuit board protection technology.

Customer feedback and after-sales communication

Full-board coating machine realizes full uniform coating for mass PCB production with stable running. Fast after-sales completes commissioning and troubleshooting timely. Reliable equipment and considerate service win positive reviews and repeat orders.


Transport Cabinet and Glue Supply Monitoring System
Glue Supply System
Certification

Product certification document for HH Type Nitrogen Purification Equipment Quality certification document for HH Type Nitrogen Purification Equipment

CNSMT specializes in manufacturing full board coating machines, with stable operation, uniform coating, and excellent quality. Our products are sold well both domestically and internationally. The model has high cost-effectiveness and affordable pricing, helping enterprises reduce costs and increase efficiency.


We have comprehensive after-sales service, providing installation and debugging, technical support, and maintenance support, with timely response. Over the years, we have won a good reputation for our reliable products and attentive services. We welcome new and old customers to consult, purchase, and negotiate cooperation.
