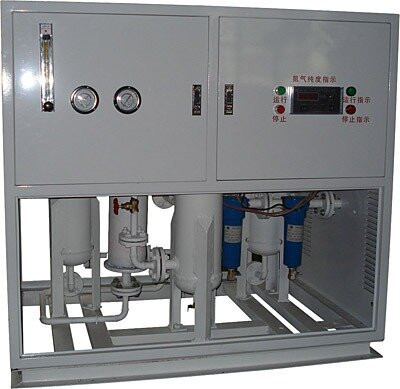

HNP Type Nitrogen Purification Equipment
Professional hydrogenation purification equipment operating
continuously for 24 hours with excellent purification performance
for SMT reflow soldering applications.
Key Features
- Advanced hydrogenation purification process with palladium
catalytic deoxygenation technology
- Multi-stage deoxygenation, dehydrogenation, deep drying and
precision filtration
- Purifies ordinary nitrogen to 99.999% ultra-high purity
- Intelligent PLC control system with fully automated operation
- 24-hour uninterrupted continuous operation capability
- Integrated cabinet modular structure with compact design
- Complete safety protection with pressure monitoring and fault
interlock systems
- Cost-effective replacement for bottled high-purity nitrogen and
liquid nitrogen
Working Principle
The HNP nitrogen purification equipment utilizes hydrogenation
catalytic deoxygenation as its core process. Raw nitrogen and
hydrogen are thoroughly mixed, with deoxygenation reactions
completed under palladium catalyst action. Subsequent
dehydrogenation, deep drying, and precision filtration processes
remove moisture, impurities, and residual hydrogen to produce
high-purity, low dew point clean nitrogen gas.
This specialized hydrogenation catalytic deoxygenation purification
equipment is designed for precision electronic manufacturing,
serving as the mainstream reflow soldering high-purity nitrogen
solution in the SMT industry.
Technical Specifications
| Model | Output | Nitrogen Purity | Dimensions (L*W*H mm) | Air Inlet | Gas Outlet | Weight (kg) | Power Supply |
|---|
| HN4010 | 10Nm³/h | ≥99.99% | 1300*950*1850 | G1/2" | G1/2" | 500 | AC220V/0.2KW |
| HN4020 | 20Nm³/h | ≥99.99% | 1400*950*1850 | G1" | G1/2" | 600 | AC220V/0.2KW |
| HN4030 | 30Nm³/h | ≥99.99% | 1500*950*1850 | G1" | G1/2" | 700 | AC220V/0.2KW |
| HN4040 | 40Nm³/h | ≥99.99% | 1600*1000*2000 | G1" | G1/2" | 800 | AC220V/0.2KW |
| HN4050 | 50Nm³/h | ≥99.99% | 1600*1200*2200 | G1" | G1/4" | 1000 | AC220V/0.2KW |
| HN4060 | 60Nm³/h | ≥99.99% | 1600*1200*2200 | G1" | G1" | 1200 | AC220V/0.2KW |
| HN4080 | 80Nm³/h | ≥99.99% | 1800*1400*2500 | G1" | G1" | 1600 | AC220V/0.2KW |
| HN4100 | 100Nm³/h | ≥99.99% | 2000*1600*2600 | DN32 | G1" | 1800 | AC220V/0.2KW |
| HN4150 | 150Nm³/h | ≥99.99% | 2200*1600*2700 | DN40 | G1" | 2400 | AC220V/0.2KW |
| HN4200 | 200Nm³/h | ≥99.99% | 2300*1600*2700 | DN50 | DN40 | 3000 | AC220V/0.2KW |
| HN4250 | 250Nm³/h | ≥99.99% | 2400*1600*2700 | DN50 | DN40 | 4000 | AC220V/0.2KW |
| HN4300 | 300Nm³/h | ≥99.99% | 2500*1600*2760 | DN65 | DN40 | 5600 | AC220V/0.2KW |
| HN4400 | 400Nm³/h | ≥99.99% | 2700*1800*2900 | DN65 | DN50 | 6500 | AC220V/0.2KW |
| HN4500 | 500Nm³/h | ≥99.99% | 3200*2400*3900 | DN80 | DN65 | 7500 | AC220V/0.2KW |
| HN4600 | 600Nm³/h | ≥99.99% | 3500*2500*4000 | DN80 | DN65 | 8500 | AC220V/0.2KW |
| HN4700 | 700Nm³/h | ≥99.99% | 3500*2500*4500 | DN100 | DN80 | 9500 | AC220V/0.2KW |
| HN4800 | 800Nm³/h | ≥99.99% | 3800*2600*4500 | DN100 | DN80 | 11000 | AC220V/0.2KW |
| HN4900 | 900Nm³/h | ≥99.99% | 3800*2600*5200 | DN100 | DN80 | 12000 | AC220V/0.2KW |
| HN41000 | 1000Nm³/h | ≥99.99% | 4000*2800*5500 | DN100 | DN80 | 15000 | AC220V/0.2KW |
Applications
SMT reflow soldering, precision electronics, semiconductor
packaging, automotive electronics, industrial control product
processing, and various high-end electronic manufacturing
scenarios.
Service Support
Comprehensive pre-sales technical consultation, project solution
design, equipment monitoring, training courseware, and personalized
planning services. Global service network with distributed
engineers equipped with specialized tools and spare parts for
prompt on-site support.
Customer feedback and after-sales communication
Customers are satisfied with HNP nitrogen purifier for stable
purity and low power consumption. Our after-sales team responds
quickly to handle installation and technical issues. Superior
products and thoughtful service gain favorable comments and repeat
orders.
Certifications
CNSMT manufactures HNP nitrogen purification equipment with high
purification precision, energy-saving and stable performance for
electronics and heat treatment industries. Our high-quality
products sell globally at competitive prices to reduce clients’ gas
cost. Complete after-sales including installation, commissioning
and maintenance is available with fast response. We welcome your
orders.
