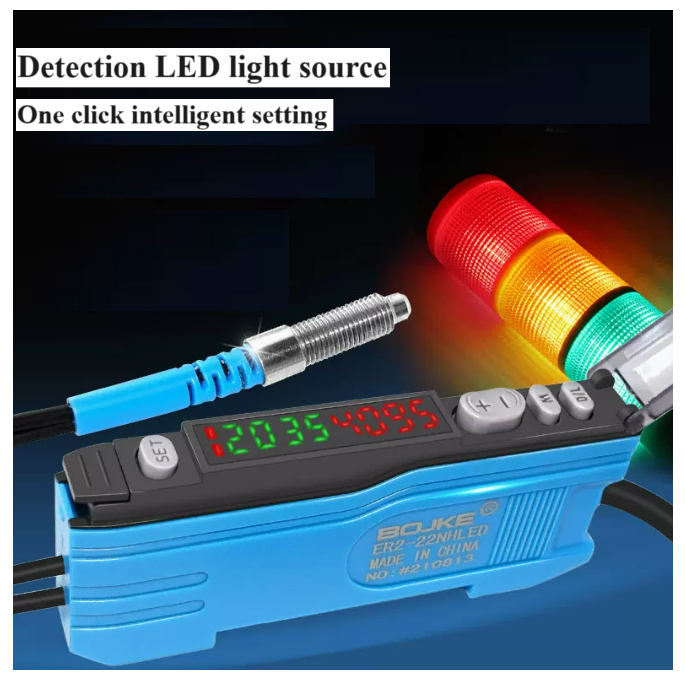

NPN / PNP Output Fiber Optic Amplifier LED Light Source Detector

Model #

ER2-22NHLED

Operation Voltage

DC12~24V±10%

No-load Current

≤40mA

Light Source

No light source, receiving the brightness of the detected object

Response Time

P0:<50μs;P1:<200μs;P2:<400μs;P3:<800μs;P4:<4ms

Response Frequency

10KHz

Delay Function

No delay/Single delay/Pull up delay/Pull down delay

Output Mode*1

NPN open-collectorNPN

Max input Current

100mA

Max Residue Voltage

<1.5V(at the load current is 100mA and the wire is 2m)

Switching Mode

Light.on/Dark.on switchable

Digital Display

Threshold setting value:4 digit green LED; Current value:4 digit red LED

Ambient Temperature

Operation:10℃~55℃; Storage:25℃~70℃, no freezing

Ambient Humidity

Operation:35%~85%RH; Storage:35%~95%RH,No condensation

Protection Circuit

Polarity reversal protection/surge protection/short circuit protection

Protection Level

IP64

Connection

3-core, standard cable length 2 meters

Housing Material

ABS

Withstand Voltage

AC500V,50/60Hz,1min

Vibration Resistance

10～55Hz,dual amplitude 1.5mm, 2 hours each in X/Y/Z directions

Impact Resistance

500m/S², XYZ derection each 10 times

Insulation Impedance

Above 20MQ (DC500V megger)
