| Categories | Special Sensors |
|---|---|
| Brand Name: | BOJKE |
| Model Number: | PUD-200NP |
| Certification: | CE |
| Place of Origin: | Dongguan China |
| MOQ: | 1pcs |
| Payment Terms: | T/T |
| Supply Ability: | 150k |
| Delivery Time: | 5~8 work days |
| Packaging Details: | kraft box with carton box; |
| Product name: | Transparent label sensor |
| Power supply: | DC 12~24V |
| Slot width: | 0.35mm |
| Slot length: | 85mm |
| Detected object: | Transparent or opaque labels |
| Response time: | less than 1ms |
| Repeatability: | less than 5% |
| Output: | NPN and PNP |
| Company Info. |
| Guangdong Boyijingke Sensing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

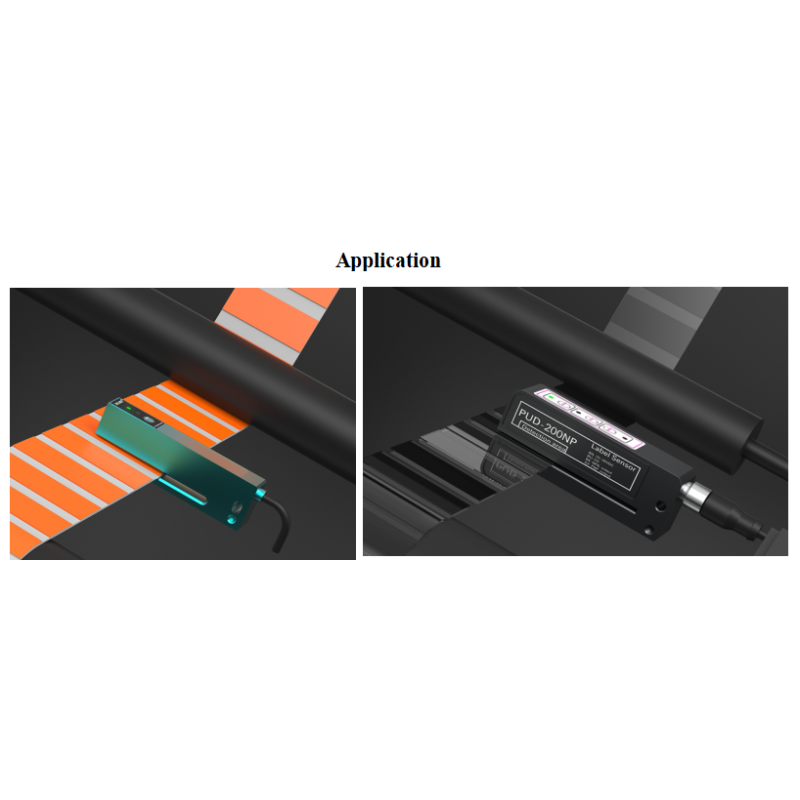

Label Sensor Detection Inspecting Counting Transparent Opaque Printed Labels
| Product Name | Capacitive label sensor |
| Housing material | Aluminum alloy |
| Function | detection labels |
Infrared detection and ultrasonic detection and capacitive detection are available
Stably detects those labels with 0.35mm gaps and 85mm length
With two-point and single-point teaching function
| Model | PUD-200NP |
| Detection Mode | capacitive sensing |
| Slot Wideth | 0.35mm |
| Slot depth | 85mm |
| Hysteresis Range | <20% |
| Detection Object | transparent and opaque label |
| Repeat Accuracy | <5% |
| Sensitivity Adjustment | button adjustable |
| Output Mode | NPN and PNP two channel output at same time |
| Switch Mode | NO/NC switchable |
| Response Time | <1ms |
| Response Frequency | 2KHz |
| Working Voltage | DC 12~24V ±10% |
| Residue Voltage | <2V (load current 50mA, cable 2 meter) |
| Max Load Current | 100mA |
| Consumption (no-load) current | <40mA |
| Ambient Temperature | working:-10℃~55℃；storage:-25℃~70℃,no freezing |
| Ambient Humidity | working:35%~85% RH；storage:35%~95% RH,no condensation |
| Protection Circuit | polarity reversal protection/surge protection/ short circuit protection |
| Protection Level | IP65 |
| Indicator Light | Red: working indicator light; Green: output indicator light |
| Connection Type | 4-PIN connector |
| Housing Material | aluminum alloy+anodized |
| Withstand Voltage | AC 500V, 50/60Hz, 1 minute |
| Vibration Resistance | 10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours |
| Impact Resistance | 500m/S2, X,Y,Z directions each 3 times |
| Insulation Impedance | above 20MΩ (DC 500V megohmmeter) |
|
