| Categories | Measuring Sensors |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | BOJKE |
| MOQ: | 1 |
| Price: | $226 |
| Model Number: | BDR-24A |
| Certification: | CE |
| Payment Terms: | T/T |
| Supply Ability: | 150k |
| Delivery Time: | 5~8 work days |
| Packaging Details: | kraft paper box with carton box; |
| Product name: | Photoelectric Laser Sensor |
| Description: | Laser Area Sensor |
| Usage: | Measurement, Sheet Edge Control |
| Theory: | Laser Reflection |
| Power supply: | 12~24v DC |
| Detection distance: | 0~40mm |
| Company Info. |
| Guangdong Boyijingke Sensing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

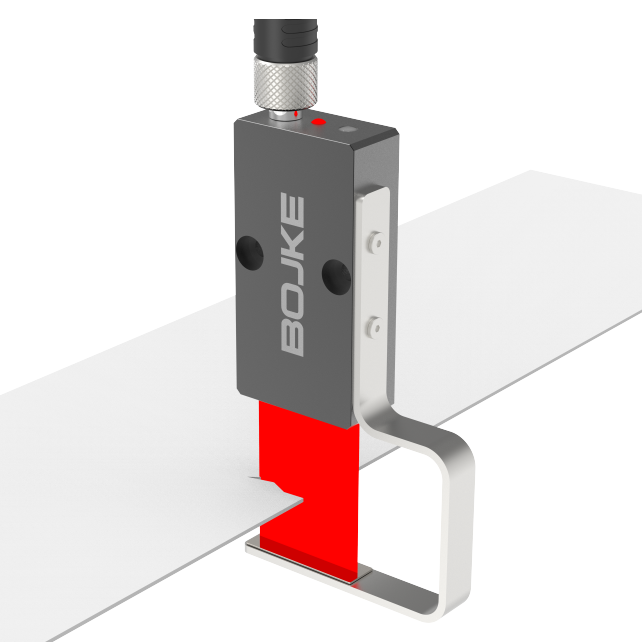

Photoelectric Laser Diffuse Reflection Edge Sensor Sensing Range 0~40mm
| Product Name | Reflective Laser Sensor |
| Material | Aluminum Alloy |
| Function | Detection |
| Package | Plastic box + inner box |
1. Suitable for edge measurement and width/gap measurement
2. Light reflective function for easy installation
3. Compact design for easy installation
4. Send the data of sheet edge positions to a controller to eliminate meandering.
| Model | BDR-24A | ||
| Measure range | 24mm | ||
| Detection distance(from workpiece) | 0～40mm | ||
| Light source | wavelength | Red laser 650nm | |
| maximum power | 7mw | ||
| Light spot | 3.5x25mm | ||
| linear accuracy | ±200μm | ||
| repeat accuracy | ±30μm | ||
| Response time | 500μs | ||
| Temperature drift | ±0.02%F.S./℃ | ||
| RGB indicator light | Slow flashing green light (2Hz): normal operating state | ||
| Long green light on: program restart loading in progress | |||
| Light off: The light path is completely blocked or in an abnormal state | |||
| Analog ouput | current:4～20mA (Input impedance of sampling terminal≤250Ω) | ||
| Supply power voltage | DC 12～24V ±10% | ||
| Cosumption current | <100mA(at DC 24V) | ||
| Connect type | M8 4 pin connector | ||
| protection degree | IP67 | ||
| Operation temperature/humidity | -10 ～ + 50℃/35～85%RH(No condensation, no freezing) | ||
| Storage temperature/humidity | -20～+60℃/35～85%RH(No condensation, no freezing) | ||
| Ambient illuminace | sunlight:< 10000lux,incandescent lamp:< 3000lux 以下 | ||
| Vibration resistance | 10～55Hz amplitude 1.5mm | ||
| X,Y,Z directions 2 hourse | |||
| Shock resistance | about 50G(500 m/s2) | ||
| X,Y,Z directions 3 times | |||
| Protection circuit | Reverse connection protection,overcurrent protection | ||
| Weight | 75g | ||
| Material | housing material:aluminium alloy lens:glass | ||
|
