Fast Install Decorative WPC Wall Cladding Panels For Commercial Construction

Fast Install WPC Cladding Saves Commercial Construction Labor

Product Summary

This commercial WPC cladding features an interlocking tongue-and-groove system and hidden clips, cutting onsite installation time by 40%. Perfect for large facades, it eliminates surface drilling and aligning errors, allowing two workers to complete a standard wall in hours, drastically lowering total project labor costs.

About this Product

• 40% Faster Interlocking Setup

• The engineered tongue-and-groove profile allows boards to snap into place instantly, reducing measuring and alignment overhead.

• Hidden Clip Fixation

• Utilizes stainless steel clips secured directly to the joists, eliminating visible screw heads and preventing board splitting.

• Standard Tool Compatibility

• No specialized equipment needed; the cladding can be cut, drilled, and routed using standard woodworking circular saws.

How to Install

Installing the Joists (Battons):

If the cladding panels are installed horizontally, the joists must be installed vertically (and vice versa). Fix the joists to the wall using expansion screws. Keep the center-to-center distance between the joists at 30cm - 35cm (if the spacing is too wide, the wall will sag or flex).

Fixing the First Panel:

Start from the bottom or the side. Use a starter clip (or screws) to secure the edge of the first panel to the joists. Make sure to double-check that this first piece is perfectly level or vertical.

Interlocking & Securing:

Insert the tongue (male profile) of the next panel into the groove (female profile) of the previous one. Snap the dedicated fixing clip onto the exposed joint where the panel meets the joist, and tighten the screw. Repeat this process, stacking them like building blocks.

Finishing & Trimming:

Cut the final panel to fit the remaining space. Cover and seal all perimeter edges and corners using matching L-shape corner trims (secured with structural adhesive or a brad nailer).

Performance Advantages

Technical Specifications

Certification

Section Designs

Our Factory

Colors

FAQ

Q1: What is the recommended joist spacing for installing this fast-install WPC cladding?

A1: For standard commercial vertical or horizontal installations, we strictly recommend a maximum center-to-center joist spacing of 300mm to 350mm to ensure optimal structural stability and prevent any warping.

Q2: Do we need to leave expansion gaps during the quick interlocking process?

A2: Yes. WPC expands and contracts with temperature. While the interlocking sides automatically manage lateral fit, you must leave a 3mm to 5mm expansion gap at the butt joints (end-to-end) depending on the local climate during installation.

About Us

Haining Vanshine New Materials Co., Ltd. is a premier, innovation-driven WPC manufacturing factory and global exporter specializing in high-performance Wood-Plastic Composite (WPC) building materials. Our fully-owned, modernized production facility is located at No. 88 Sanyou Road, Tongyuan Town, Haiyan, Zhejiang, China, situated at the absolute center of East China’s premium manufacturing hub. As a true, factory-direct source, we are strategically close to both Shanghai Port and Ningbo Port, granting our international buyers seamless logistics and direct ocean shipping advantages.

Vanshine integrates independent R&D, large-scale production, and global sales under one roof. We operate our own advanced manufacturing workshops dedicated to redefining modern architectural spaces with sustainable, low-carbon, and weather-resistant composite materials. Through years of technical expertise and capacity scaling, Vanshine has become the trusted, first-hand supply chain source for building material importers, regional distributors, and commercial contractors worldwide.

Factory-Direct Infrastructure & Core Products

As a true manufacturing facility, Vanshine controls the product quality right from the raw material formulation—fusing eco-friendly polymer resins and refined wood fibers through state-of-the-art, high-pressure thermal extrusion lines. Our factory-direct export catalog includes:

• Interior WPC Wall Panels: Driven by our dedicated indoor high-precision extrusion lines. These fluted and flat profiles offer superior impact resistance, achieving international Class B1 fire retardancy and zero-VOC indoor air safety certifications for instant occupancy.

• Exterior WPC Wall Panels / Cladding: Powered by our industry-leading 360° co-extrusion production lines. The core composite is fully encapsulated in an advanced, high-density polymer armor shield built to withstand heavy UV exposure, torrential rain, and extreme temperature shifts without cracking or fading.

• WPC Decking Panels: Commercial-grade, barefoot-friendly outdoor flooring. Engineered with high flexural strength and excellent anti-slip ratings, our decking is naturally immune to rot, moisture, and termite infestations, making it the top choice for residential patios, commercial poolsides, and public boardwalks.

Why Partner with the Vanshine Factory?

1. Direct-from-Factory Pricing & Massive Capacity

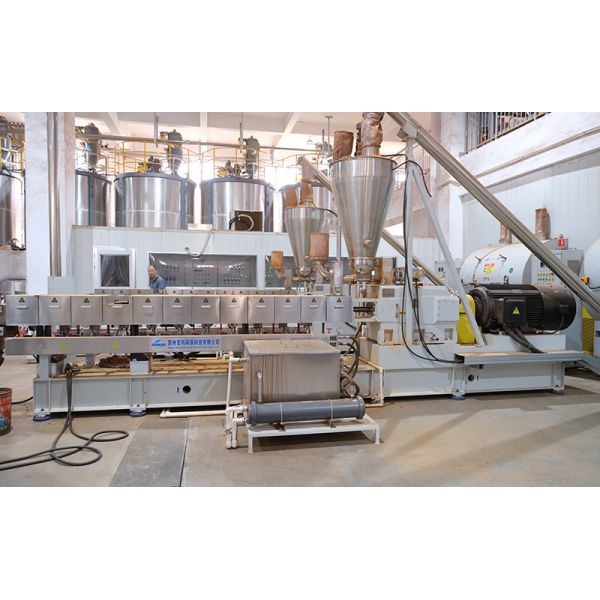

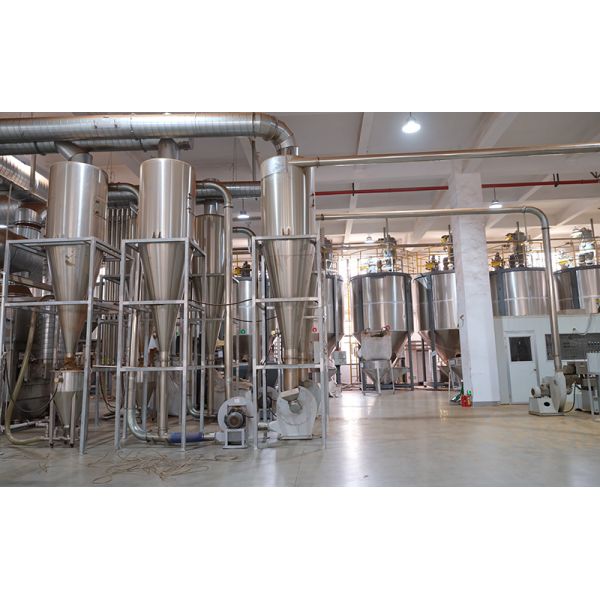

We operate expansive production workshops equipped with multiple automated WPC extrusion and co-extrusion lines, guaranteeing stable monthly output and on-time delivery for high-volume container orders. By completely eliminating trading companies and middleman markups, we deliver the most competitive factory-direct FOB prices to maximize your market profit margins.

2. In-House QC & Full Supply Chain Traceability

Our factory enforces a rigorous, multi-stage Quality Control (QC) matrix covering raw material screening, blend formulation, extrusion temperature calibration, and final packaging. Equipped with specialized in-house laboratory testing tools, we guarantee precise mechanical tolerances and flawless surface finishes across all batches, eliminating post-project customer claims from the source.

3. Dedicated Factory R&D and Custom Tooling (OEM/ODM)

Different global markets demand distinct technical specifications and aesthetics. Backed by our own specialized mold-making workshop and engineering team, Vanshine offers comprehensive OEM/ODM customization. We can rapidly develop custom profile tooling from your drawings or samples, adjust density and profile weights, and match bespoke color palettes or deep 3D wood-grain textures.

4. International Compliance & Audit-Ready Facility

We speak the language of international building codes. Vanshine products are regularly tested by premier third-party laboratories (such as SGS and Intertek), comfortably complying with global ASTM and EN standards for flame retardancy, UV weathering, flexural load, and anti-fungal properties. Furthermore, our factory fully supports on-site audits by international inspection bodies (such as BV, SGS, or TUV), helping you smoothly secure large-scale commercial tenders.

Our Vision

At Haining Vanshine New Materials Co., Ltd., we operate under the core mission: "Empowering Architectural Aesthetics with Factory Quality, Safeguarding Green Living with Composite Innovation." We do not just supply products; we protect your supply chain, elevate your brand's reputation, and maximize project ROI through superior factory engineering.

We warmly welcome global building material importers, wholesalers, and project developers to visit our manufacturing facility in Zhejiang for face-to-face inspections, and establish a long-term, mutually beneficial factory-direct partnership.
