Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C
Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C
Categories MPO MTP Patch Cord
Return Loss: 55dB
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union,T/T,L/C
Fiber: OS1
Packaging Details: PE bag, carton box, wooden roll
Place of Origin: Guangdong, China
Diameter: 2.0mm, 3.0mm
Connector: MPO/APC
Length: 1, 3, 5, 7, 10, 15, 20, ...
Model Number: MPOA-MPOA-12fo-LSZH-xM
Core: 9/125
Color: Yellow
Price: Negotiation
Fiber count: 8fibers, 12 fibers, 24 fibers
Cover: PVC, LSZH
Brand Name: KCO
Certification: ISO9001, RoHS
Insertion loss: 0.2dB
MOQ: Negotiation
Contact Now
Company Info.
KOCENT OPTEC LIMITED
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C

Description:

KCO Fiber factory directly sell MPO Trunk Cable, MTP Fiber Optic Patch Cable

MPO patch cables / MTP Trunk Cables are high-density fiber optic cables that used for fast data networks. It uses a Multi-fiber Push-On connector to link many fibers at once.

MTP MPO (Multi-Fiber Push-On) trunk cables are high-density fiber optic cables that used to transmit multiple optical signals through a single interface.

It consolidates anywhere from 8 fibers to 48 fibers into one compact connector, making it the backbone for high-speed data centers, enterprise networks, and telecom systems.

MTP MPO trunk cables typically have MPO connectors (or MTP® connectors) on both ends.

In standard structured cabling, the trunk cable serves as a permanent backbone, linking between switches or from a main switch to a server. At each end, the MPO connector plugs into a patch panel cassette or breakout cable, which then transitions the multi-fiber connection into traditional, single-fiber links (like LC or SC connectors) that plug directly into the equipment.

MTP MPO trunk cables use for High-Speed Migration, they serve as the physical foundation for scaling up to 40G, 100G, 400G, and 800G Ethernet architectures, which require parallel optics.

Application

  • High density big data center such as bank data center, telecom data center, icloud data center, ...
  • AI data center, AI & Machine Learning Networks
  • Starlink data center
  • High-Speed Transceiver Upgrades
  • Telecommunication networks
  • Local Area Networks(LANs)
  • Data Processing networks
  • Test Equipment
  • Hyperscale & Enterprise Data Centers
  • Wide Area Networks(WANs).
  • FTTx (FTTH, FTTO, FTTB, FTTA, ...)
  • High speed transport data center such as metro, high-speed railway, light railway...

Features

  • Long Distance: They can send data over miles instead of feet.
  • Laser Light: They use powerful laser light sources instead of LEDs.
  • Yellow Jacket: They almost always have a bright yellow outer cable jacket.
  • Angled Connectors: They use green APC connectors to stop light from bouncing back.
  • Infinite Bandwidth: The glass fiber material has no theoretical limit on data speed.
  • 100% factory tested before shipment.
  • Test report come with each piece.
  • OEM service: available

Product photos:

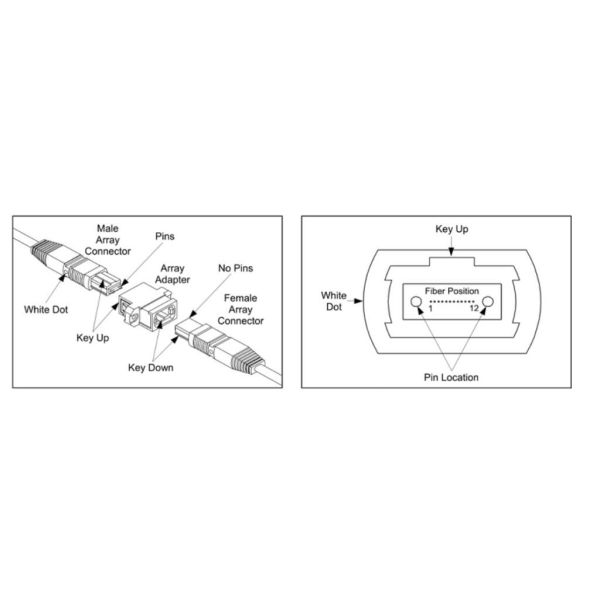

Single MPO MTP connector type

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C

Single Mode G657A 24F MPO Trunk Cable MTP Fiber Optic Patch Cable Type A / Type B / Type C Detail information:

Connector side A: MPO female / MTP female

Connector side B: MPO female / MTP female

Fiber type: Single mode G657A1 / G657A2

Fibe count: 24F

Cable diameter: 3.0mm

Cable out-sheath material: LSZH, PVC, OFNR

Cable color: Yellow (customized)

Polarity: Type B (exwork, optional: type A, type C)

IL: Ultra Low Loss (0.35dB)

RL: 55dB

Cable length: 1m, 3m, 5m, 10m, 15m, 25m, 50m, 75m, 100m, 150m, ...

Specification:

ParametersStandard Fiber Cable Assemblies
Fiber TypeSM(G.657A)
Jacket MaterialsLSZH/OFNR/PVC
Connector TypeMPO APC female
Ferrule MaterialsGlass-filled polyme
Testing Wavelengths1310±30/1550±30nm
Insertion Losss IL (dB)

≤ 0.35dB (ultra low loss)

≤ 0.65dB (standard loss)

Return Loss RL (dB)≥ 55dB(APC)
Exchangeability≤ 0.2dB
Cable AssembliesTrunk cable
Operating Temperature (° C)-10~ + 70
Storage Temperature (° C)-40 ~ +85
Package1unit/bag
*All values specified are with connectors.

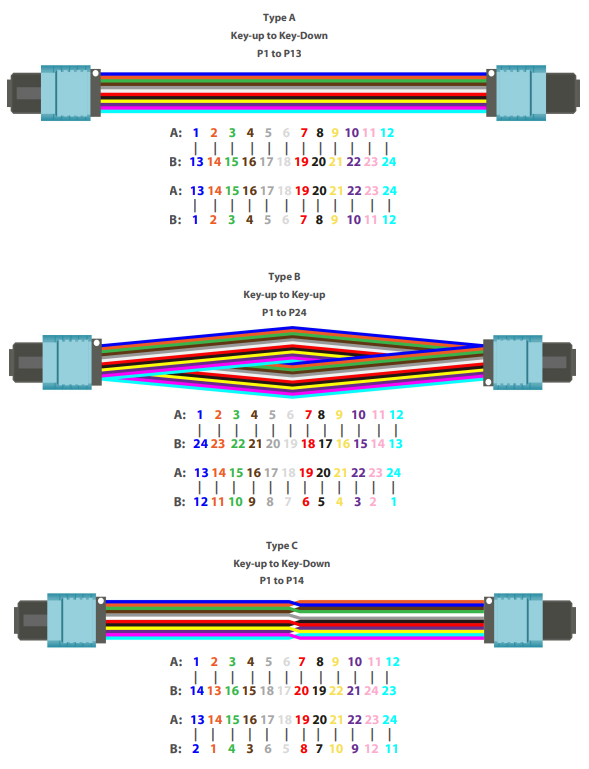

MPO-24 MTP-24 Polarity type A B C:

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, pallet.

Standard marking.

Shipping:

  • International express such as UPS, TNT, DHL, etc
  • Internatioal air: CA, AA, EA, etc
  • By sea
