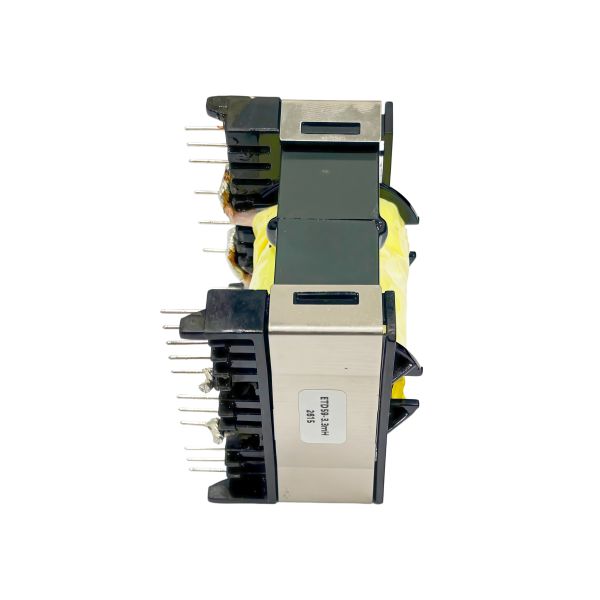

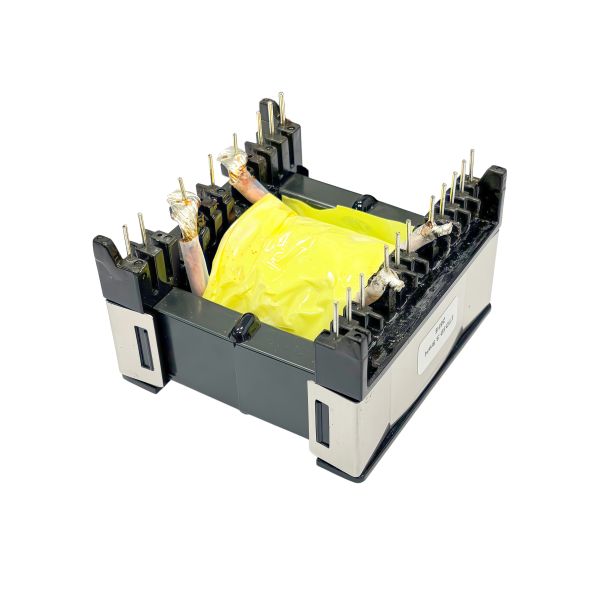

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED

ETD59 High Frequency Transformer PCB Electrical Transformer For Lighting LED

1.Product Description

The ETD59 high-frequency transformer is specially designed for LED lighting driver power supply, using high-performance manganese zinc ferrite core, supporting a wide working frequency range of 20kHz-500kHz, with an energy conversion efficiency of over 95% and ultra-low core loss. Specially designed for direct PCB pin soldering installation, with a compact structure, high power density, and reliable insulation strength. This transformer can withstand operating temperatures ranging from -40 ℃ to+125 ℃, and has undergone rigorous comprehensive electrical testing to meet requirements. It supports customized winding parameters, pin layout, and packaging solutions. Please contact kath@zxycoil.com Customize your parameters! Zhixiangyuan core magnetic components, with stable batch quality and short sample delivery time, can be used for global bulk orders

2.Performance Characteristics

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers，switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL，FCC，CE，RoHS、Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in high quality audio equipments, audio conference room equipments，communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments，LED lighting，and consumer electronics etc.

We are committed to providing high quality coils, inductors, transformers and other products. We can also accept OEM and ODM orders. We sincerely welcome customers at domestic and oversea to visit and cooperate with us with high-quality products, preferential prices and excellent reputation.
