Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System

Touch Screen Offline PCBA Cleaning Machine With Quick Connector Spray Bar System
The HS-810 integrated offline PCBA cleaning machine is an economical and efficient batch cleaning system designed to remove various residues from electronic products. This advanced system handles water-soluble residues, RMA (moderately active rosin), lead-free flux without washing, electroplating salts, fingerprints, dust, and solder balls. The complete cleaning, rinsing, and drying process occurs within a single chamber, effectively reducing chemical usage and consumption.
Key Features
  • 304 Stainless steel machine body with touch screen control
  • Suitable for all cleaning requirements with programmable cycle cleaning
  • Cleaning solvent recycling system saves chemical consumption
  • Multiple cleaning nozzles for fast cleaning times
  • Three cleaning bars (top, middle, bottom) for 360-degree cleaning without blind spots
  • Observation chamber for monitoring the entire cleaning process
  • Circulating hot water system for chemical cleaning section
  • External exhaust port with regulating door and quick connector spray bar system
  • Low liquid level automatic water filling function
  • Oversized cleaning basket (L610×W560×H100mm) with dual layer design for large PCBA requirements
Standard Configuration
ComponentIncluded
Touch screen control systemYes
Alarm systemYes
Durable 304 stainless steel constructionYes
Programmable cycle cleaning solutionsYes
Cleaning solvent recycling systemYes
Three cleaning bars (top, middle, bottom)Yes
Observation cleaning windowYes
Stainless steel PCB structureYes
Chemical cleaning hot water cycle systemYes
Exhaust air connectorYes
Fast connection cleaning spray barYes
Low liquid automatic solvent filling systemYes
Cleaning basket: 610×560×100mm, dual layerYes
3 PH, 380 VAC, 5 wires power supplyYes
Optional Equipment
OptionAvailability
0.3T/H DI water producing device (resistivity above 15 meters)Yes
Customized fixturesYes
Technical Specifications
ParameterSpecification
Machine sizeL1500 × W1300 × H1830 (mm)
Inner chamber sizeL690 × W620 × H715 (mm)
Cleaning basket size610 × 560 × 100 (mm), dual layer
Machine powerApprox 26kW
Control modeTouch screen + PLC
Machine body material304 stainless steel
Mesh material304 stainless steel
Power supplyAC380V 50HZ 65A
Air supply0.45Mpa～0.7Mpa
WeightApprox 600kg
DI water requirement>15MΩ
DI water inlet0.5 m³/h
Noise< 70 dB
Spraying pressure30-40psi
PCBA thickness0-100mm
PCBA weightLess than 10kg
Chemical cleaning temperature25-75℃
Drying temperatureMax 99℃
Spray pipe installationFast connector, easy replacement
Water pipe installationFast connector, easy maintenance
Chemical solvent filter0.45μm (filters solder paste, rosin, and flux contaminants)
DI water filter0.45μm (filters solder paste, rosin, and flux contaminants)
Cleaning Fixtures

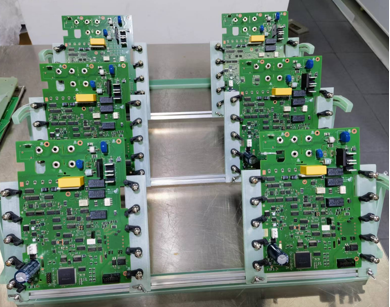

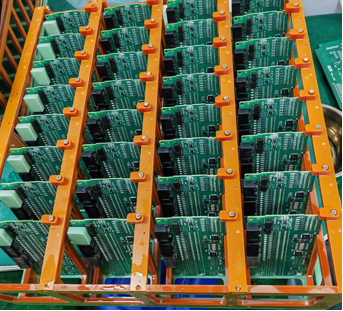

PCBA cleaning machine fixture configuration Cleaning fixture close-up view Cleaning basket and fixture arrangement
Cleaning Performance
PCBA cleaning performance results Cleaning efficiency comparison chart Residue removal performance data
Applications
Communications & Consumer Electronics: Post-soldering cleaning of PCBs/PCBAs for routers, base station equipment, and precision instruments. Removes rosin and solder paste residues to prevent short circuits and signal interference.
R&D Prototyping / Pilot Production: Cleaning of sample boards and small-batch pilot production boards in laboratories and R&D centers. Offers flexible adaptability to various PCBA models and contamination levels.
PCBA Repair & Rework Cleaning: Cleaning of circuit boards following repair or rework procedures. Removes residual solder, flux, and contaminants to restore board performance and reduce scrap rates.
Precision Electronics Packaging: Cleaning of semiconductor packages and micro-modules. Removes microscopic particles and organic residues to meet stringent high-precision assembly requirements.
PCBA cleaning machine in operation Industrial PCBA cleaning process Cleaning machine interior view
