| Categories | Container Generator Set |
|---|---|
| Brand Name: | Global Power, MTU |
| Model Number: | GP M800 |
| Certification: | CE / ISO |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | negotiable |
| Supply Ability: | 2000 sets / year |
| Delivery Time: | 25 days after receiveing the down-payment |
| Packaging Details: | plastic foam or plywood case packing |
| Engine Brand:: | MTU, Cummins, Perkins, VMAN available |
| Output Power (kw):: | 600 |
| Alternator:: | Stamford / Meecalt / Copy Stamford |
| Engine Model:: | 12V2000G65 |
| Rated Frequency (Hz): | 50/60 hz |
| Type:: | Container |
| number of phase: | 3 |
| Dimension L*W*H/mm: | 4500*1700*2250 |
| Weight/kg: | 7100 |
| Alternator: | HCI 634J/824 |
| Company Info. |
| WUXI GLOBAL POWER TECHNOLOGY CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

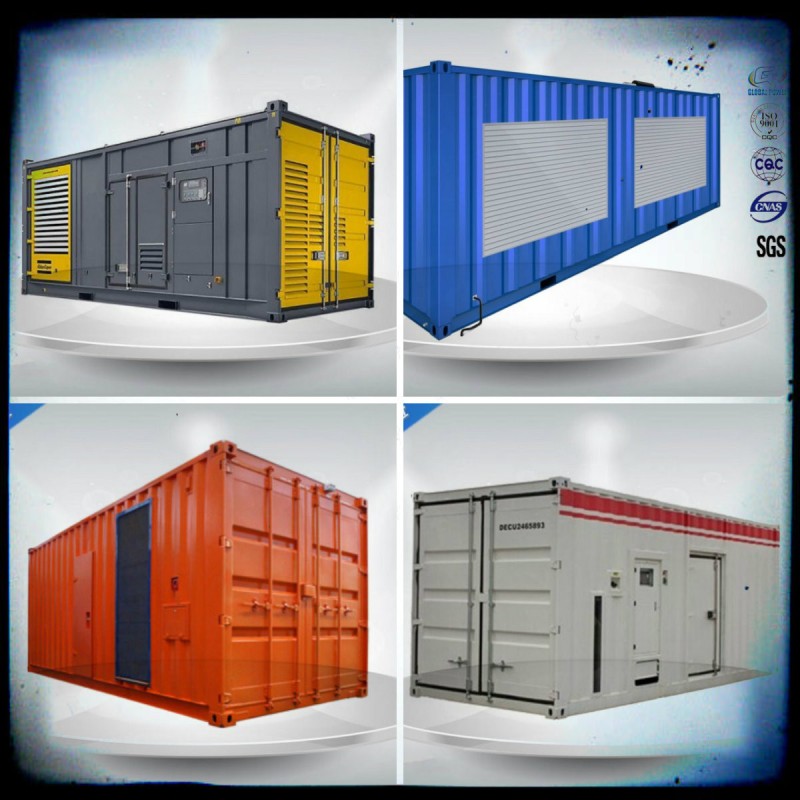

800Kw / Kva Container Generator Set 3 Phase Powered By Perkins Engine
Generator data
Diesel Generator GPM800 (three phase)
Prime Power (kw/kva) | 800/1000 |
Standby Power (kw/kva) | 880/1100 |
Rated Voltage (V) | 400/230 |
Voltage Recovery Time | ≤1S |
Rated Current (A) | 1443 |
Rated Frequency (Hz) | 50 |
Frequency Recovery Time | ≤5S |
Wave Distortion | ≤5%, sine wave |
Running Noise db(A)/7m(Silent type) | 75 |
Battery capacity (V-Ah) | 12V 100Ah |
Open Type-Dimension (L*W*H) (mm) | 4500*1700*2250 |
Open Type-Weight (kg) | 7100 |
Soundproof Type- Dimension (L*W*H) (mm) | / |
Soundproof Type-Weight (kg) | / |
Fuel Tank Capacity(L) | / |
Continuous Running Time(hr.) | 6 |
Engine specifications
Engine
Main features:
l Sixteen-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 16V2000G65
Engine brand | MTU |
Output Power (kw) | 890 |
Cylinder No. & Config. | 16,in “V” |
Combustion System | direct injection |
Compression Ratio | 16:1 |
Displacement (L) | 31.84 |
Bore X Stroke (mm) | 130*150 |
Engine Speed (r/min) | 1500 |
Speed Governing | Electronic / ADEC |
Starting System | 24V DC Electric |
Filter System | Dry oil filter/Fuel filter/Oil filter |
Cooling system | Water-cooled |
Coolant capacity (L) | 200 |
Fuel Consump. (g/kw·h) | 198 |
Oil Capacity (L) | 102 |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
|
