| Categories | Trackless Transfer Cart |
|---|---|
| Model Number: | BWP |
| Brand Name: | BEFANBY |
| MOQ: | 1 set/sets |
| Packaging Details: | The railway transfer car will be packed by the tarp, the parts will be shipped in the high quality wooden case. |
| Supply Ability: | 1000 set/sets per year |
| Power Supply: | Cable reels power |
| Motor Power: | 1-6.3 kW |
| Delivery Time: | 20-30 days as usual delivery |
| Load Capacity: | 1-70T |
| Payment Terms: | L/C,T/T,Western Union |
| Table Length: | 2000-5600 mm |
| Certification: | CE,SGS,ISO9001 |
| Place of Origin: | Henan, China |
| Material: | Q235 |
| Table Width: | 1500-2500 mm |
| Company Info. |
| Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

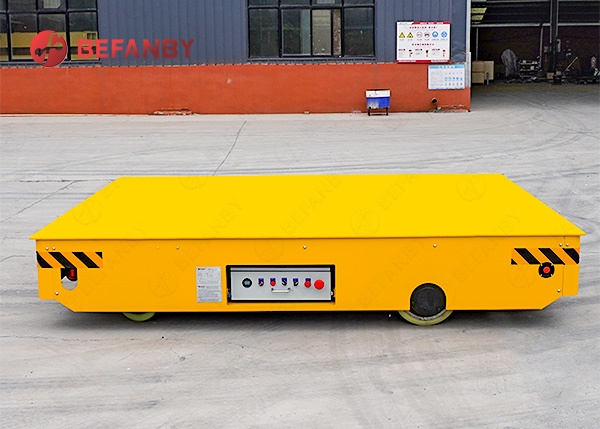

The trackless transfer cart is a highly efficient and flexible modern material transport vehicle capable of moving freely within factory grounds and workshops without the need for installed rails. Powered by batteries and a DC motor drive system, and equipped with wear-resistant, non-slip rubber-coated wheels, it operates stably on various surfaces—such as concrete and epoxy flooring—and easily maneuvers forward, backward, and in multiple directions. It offers safe, reliable handling solutions for a wide range of loads, including large molds, steel structures, and machinery, as well as for semi-automated material transport. Key specifications—such as load capacity, platform dimensions, operating speed, and control methods—can be custom-engineered to suit specific operational conditions and meet the unique requirements of different enterprises.
| Model | BWP-2t | BWP-5t | BWP-10t | BWP-16t | BWP-20t | BWP-25t | BWP-30t | BWP-40t | BWP-50t | BWP-63t | |
| Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
| Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
| Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
| Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
| Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
| Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
| Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
| Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
| Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
| Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | |
1) Q: How can I operate the transfer cart ?
A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
2) Q: How to ensure your product quality ?
A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
3)Q: Whether you can offer customized transfer car?
A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
4)Q: Whether there is professional technician assist our installation?
A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
|
