High-Efficiency UPVC Pipe Belling Machine for Fast Production

Categories Pipe Belling Machine
Payment Terms: L/C,T/T
Plate: single plate or double plate
Packaging Details: NORMAL PACKAGE
Certification: CE ISO
Place of Origin: ZHANGJIAGANG
Delivery Time: 45 WORKING DAYS
Heatingtemperaturerange: 0°C - 300°C
Power Supply: 220V / 380V / 415V
Production Output: 120-800kg/hr
Materialcompatibility: PVC Pipes
Productname: Pipe Belling Machine
Screw Design: Conical twin screw extruder
Price: Negotiable(USD EUR)
Cooling: water recycling and fan
Supply Ability: 15 SETS PER MONTH
Expansion Shape: U shape, R shape, Rectangle shape
Central Height: According to customer's request
Brand Name: LB
Model Number: LB-160
MOQ: 1 SET
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High-Efficiency UPVC Pipe Belling Machine for Fast Production

High-Efficiency UPVC Pipe Belling Machine for Fast Production
Product Overview

The SGK Series Full Automatic Plastic Pipe Belling Machine features motor control bracket height adjustment for easy operation. This advanced system is configured with material-receiving pulling device and related process interfaces that integrate seamlessly with the main machine, enabling both collaborative and standalone operation.

  • Horizontal pipe movement ensures stable, accurate actions that prevent pipe damage
  • Infrared ray heating system with double-heating furnace configuration
  • Each heating furnace equipped with central heating furnace core
  • Expansion tube head shaping method for precise nozzle dimensions
  • Control panel includes conversion switches for expansion solvent plug (direct type) and expansion flexibility sealing washer type plug (R type)
  • Main electric control components utilize imported parts for stable, reliable system performance
Technical Specifications
Pipe Expand Range (Outer Diameter)Φ 20-315mm
Belling TypeR type & U type
Used Oil LabelNo. 40/Hydraulic Oil
Quantity of Heater2
Highest Temperature in Heater280°C
Gas Pressure0.6~0.8Mpa
Water Pressure0.2~0.3Mpa
Pipe Length3-6m
Center Height900mm ± 50mm
Machine Dimensions8615 * 3125 * 2500mm

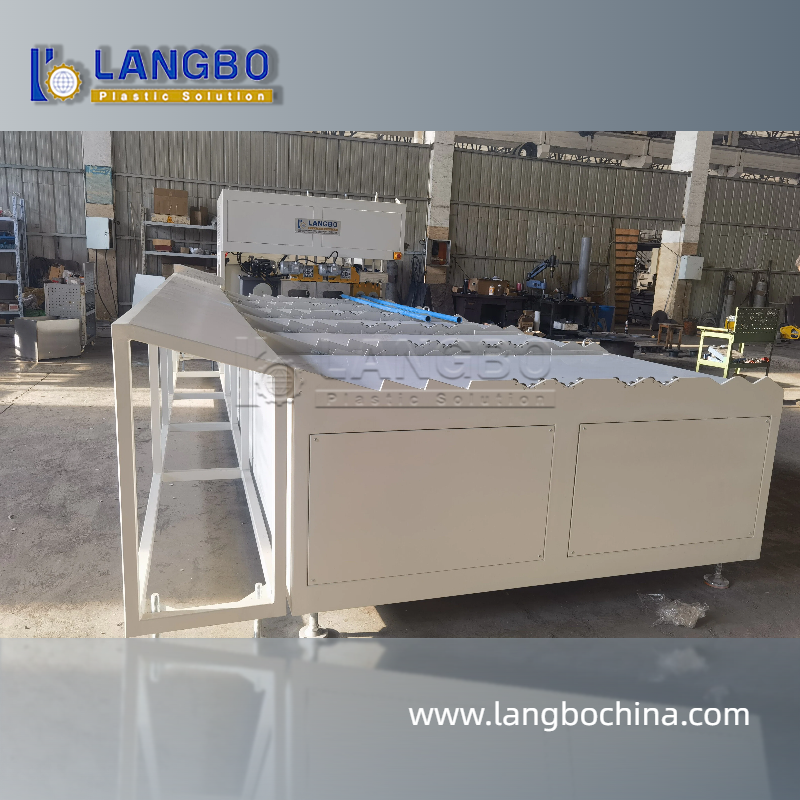

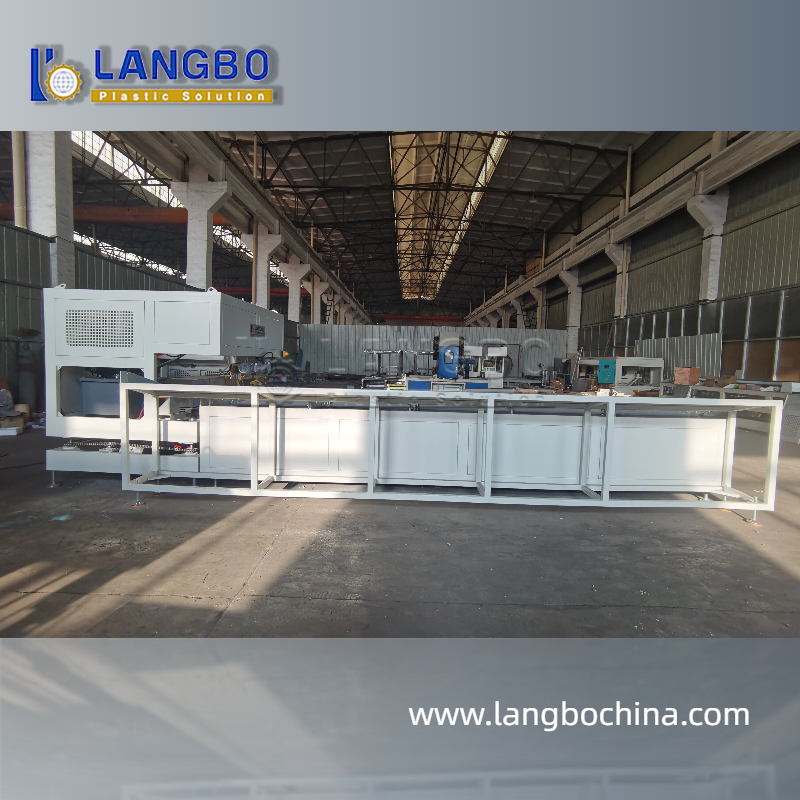

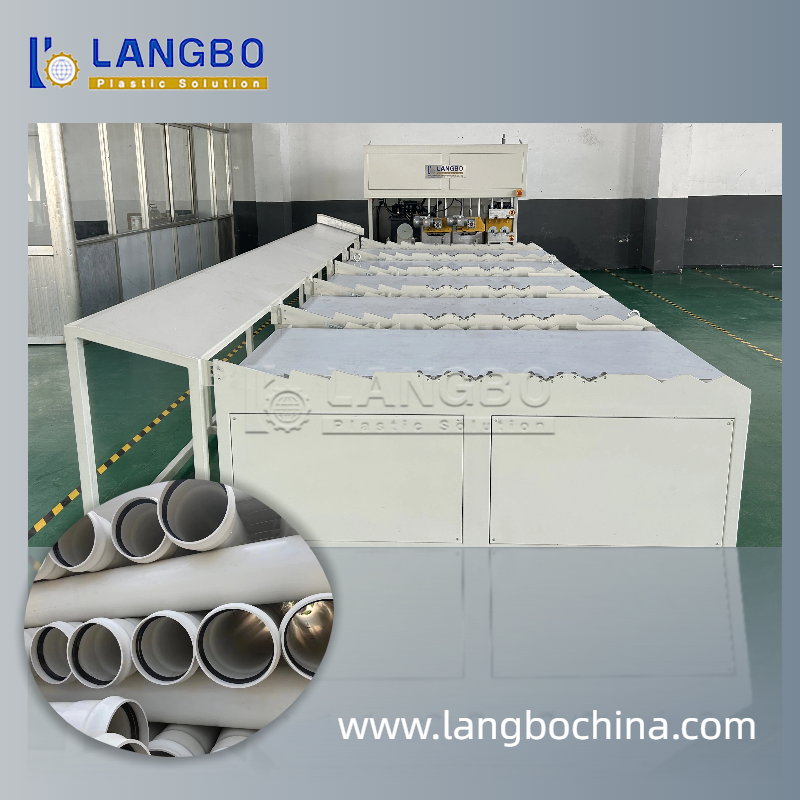

Product Gallery
