| Categories | 3D Welding Table |
|---|---|
| Flatness Tolerance: | ≤0.1 mm/m |
| Standard Accessories: | Adjustable Leveling Feet, Grounding Connector |
| Certification: | CE |
| Brand Name: | WUXI LEMAR |
| Tabletop Thickness: | 12mm |
| Delivery Time: | 15-20 work days |
| Perpendicularity (Side to Top): | ≤0.05 mm/200 mm |
| Supply Ability: | 500 units/month |
| Supply Typ: | Factory Direct Supply |
| Place of Origin: | WUXI |
| Packaging Details: | 4000*2000*200mm |
| Tabletop Material: | Q355 High‑Strength Structural Steel / HT300 High‑Grade Cast Iron (Optional) |
| Hole Center‑Distance Tolerance: | ±0.05 mm |
| Price: | 500-1500 USD |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Standard Load‑Bearing Capacity: | 1 tonne per square meter |
| MOQ: | 1 PCS |
| Model Number: | D16 |
| Structure Type: | 3D Five‑Sided CNC‑Machined |
| Company Info. |
| Wuxi Lemar Machinery Equipments Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

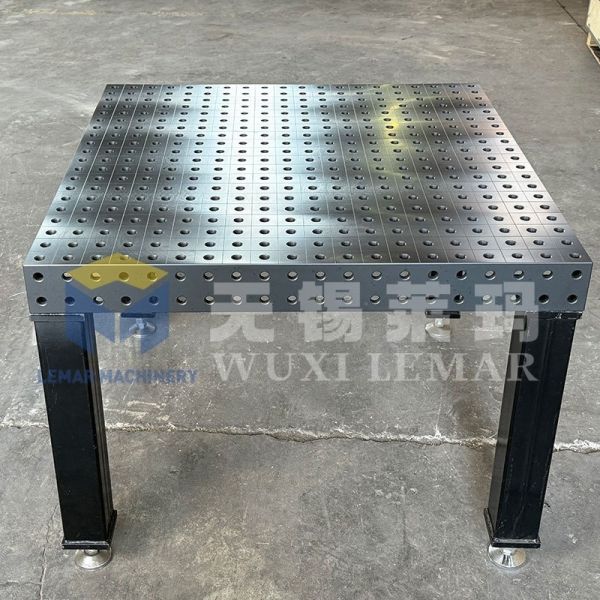

Our D16 16mm Hole Grid 3D Modular Industrial Welding Table Solution is a precision-focused industrial work platform engineered for small-to-medium workpiece welding, assembly, positioning and inspection. Featuring a universal Φ16 mm hole system with dense 50×50 mm grid and five-sided CNC-machined working faces, it enables flexible X/Y/Z three-dimensional fixturing. Plasma nitriding surface treatment delivers superior anti-spatter, wear-resistant and anti-corrosion performance. Factory-direct supply offers standard & custom sizing, full documentation and bulk-order support for global industrial clients, workshops and educational institutions.
Φ16 mm locating holes arranged in dense 50×50 mm orthogonal grid, hole-center tolerance ±0.05 mm. Fully compatible with universal D16 modular fixturing components.
Top surface plus four vertical sides are precisely milled. Supports multi-angle, three-dimensional clamping for irregular, tubular and small-complex workpieces.
Optimized lightweight reinforced structure. 3D Welding Table standard load-bearing capacity up to 1 t/m², stable under regular industrial working loads.
Flatness ≤0.1 mm/m, perpendicularity ≤0.05 mm/200 mm. Each D16 welding table is inspected with professional measuring equipment; inspection reports can be provided upon request.
Reserved grounding terminal for welding safety; all sharp edges chamfered. Optional adjustable leveling feet, brake casters, forklift pockets and lifting lugs.
Our D16 modular welding tables are widely adopted in:
Compatible with MIG, TIG, MMA, plasma welding and other common light-to-medium industrial welding processes.
|
