Factory Direct Automatic PCB Soldering Machine For Electronic Assembly

Categories Automatic Soldering Machine
MOQ: 1
Packaging Details: wood case
Soldering methods: Soldering methods
Payment Terms: T/T
Power: 850W
Tin Diameter: 0.4-2.0mm
Supply Ability: 1000sets/month
Voltage: AC 110~240V
Model Number: ZT-HXJ041-R
Repetition accuracy: ±0.05mm
Brand Name: ZhongTu
Moving speed: 0-800mm/sec
Dimensions: 60*75*85cm
X Axis: 300mm
Price: 2580
Weight: 55Kg
Heating Temperature Range: 0-550ºC
Certification: CE, ISO, RoHS
Place of Origin: China
Machine Axis Number: 3axis
Model NO.: ZT-HXJ041-R
Y Axis: 300mm
Z Axis: 100mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Factory Direct Automatic PCB Soldering Machine For Electronic Assembly

Automatic Soldering Robot High Precision Desktop PCB Soldering Machine

Company Introduction

Shenzhen Zhongtu Automation Technology Co., Ltd is a high‑tech manufacturer specialized in automatic soldering machines, dispensing machines, screw fasteners and vacuum laminators.

Integrating R&D, production, sales and after‑sales. With 10+ years of precision automation experience.

We deliver high‑precision, stable, cost‑effective soldering solutions for 3C electronics, new energy, automotive electronics and medical devices.

All machines are CE/RoHS certified, factory direct sales, 1‑year warranty and customization available.


Product Overview

Zhongtu Automatic Soldering Machine – 3/4/5 Axis High‑Precision Soldering Robot

With ±0.01mm Repeat Accuracy, 360° Rotation Optional, Dual‑Station Optional, High‑Frequency Heating 200–400W, Auto Tin Feeding & Break‑tin Alarm.

Ideal for PCB, FPCB, LED, connectors, sensors, wire harnesses soldering in 3C, new energy, automotive electronics and medical devices.


Key Feature

  • ±0.01mm High Precision – Consistent solder joints, minimal error
  • 3/4/5 Axis CNC Motion – 3D interpolation for complex paths
  • 200–400W Fast Heating – Rapid heat recovery, stable temperature

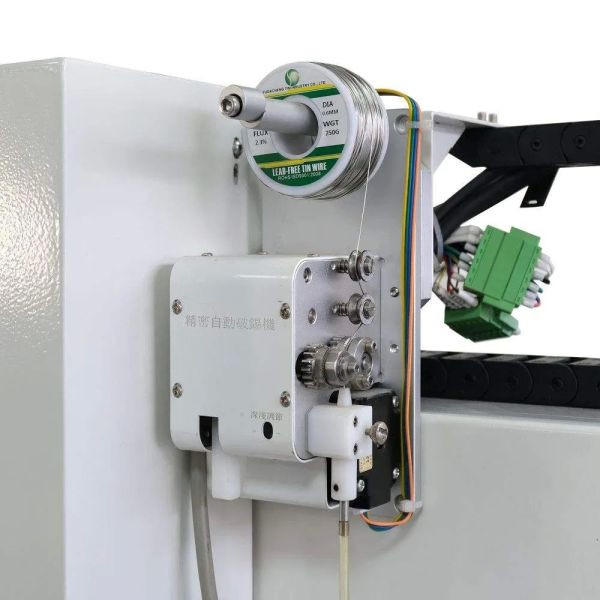

  • Auto Tin Feeding System – Precise tin output, no wast
  • Break-tin & Alarm – Anti-splash, reduce defects
  • 360° Rotation Axis Optional – Multi-angle soldering for complex parts
  • PLC + Handheld Control – Stable & easy operation

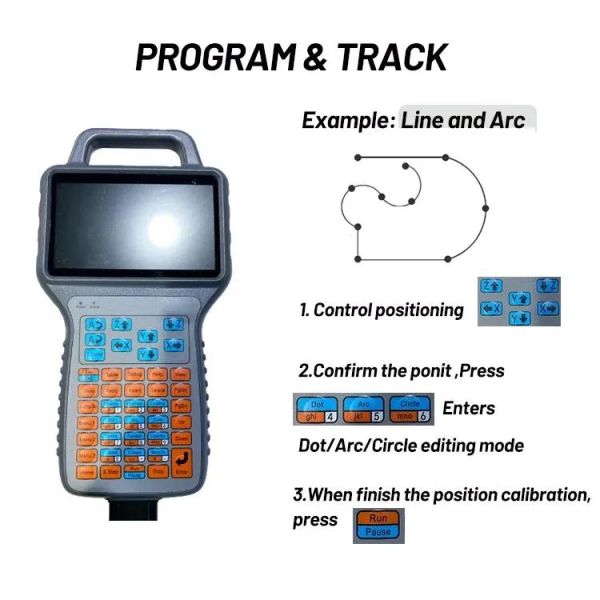

  • Easy Programming – Teach pendant / DXF import
  • Rigid Aluminum Frame – Low noise, long service life
  • Multi Soldering Modes – Spot/drag/arc/circle soldering
  • CE/RoHS Certified – Global safety compliance
  • Custom Fixture & Solution – Tailormade for your products
  • Low Maintenance – Easy tip replacement & cleaning
  • Wide Industry Application – 3C/new energy/auto/medical
Product Specifications

Model

ZT-HXJ041-R

single head single station

ZT-HXJ441-R

single head dual station

ZT-HXJ4411-02R

dual head dual station

ZT-HXJ4411-02

dual head dual station(without rotating)

Motion range

X

300mm

500mm

500mm

500mm

Y1

300mm

300mm

300mm

300mm

Y2

300mm

300mm

300mm

Z

100mm

R

360 degree

Worktable material

Aluminum alloy with surface electrophoretic treatment

Max load

Y/X-axis

5KG

Z-axis

3KG

Soldering methods

Spot welding,drag welding,tack welding

Repetition accuracy

±0.05mm

Moving speed

0-800mm/sec

Control system

PES Soldering Control System

Parts for option

Temperature controller(150W/200W/400W),solder feeding, and solder fume extraction box

Driving mode

Taiwan HIWIN linear guide

Italy Iraty conveyor

Closed-loop stepper mote(Leadshine/JMC)

Tin Diameter

0.4-2.0mm

Power input

AC220V-240V

Power supply

850W

850W

1000W

1000W

Size

60*75*85cm

60*75*85cm

80*78*85cm

100*75*85cm

Weight

55kg

68kg

75kg

85kg

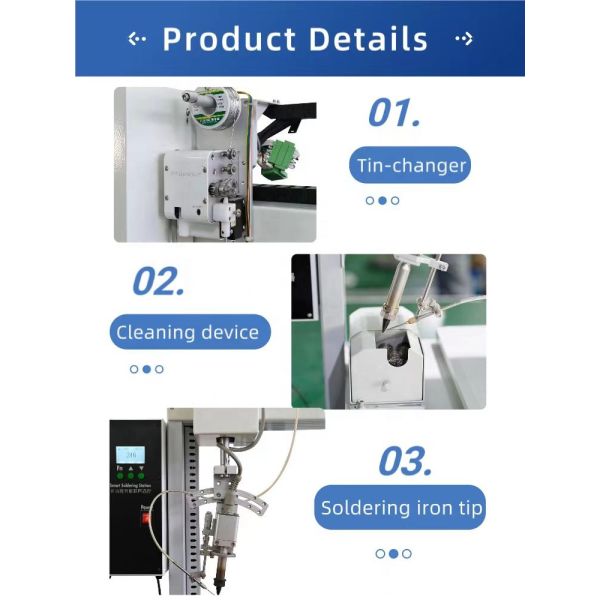

Product Image

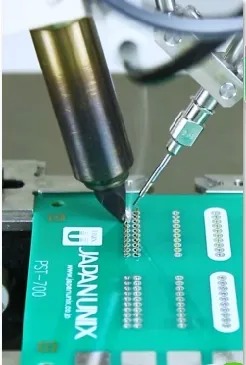

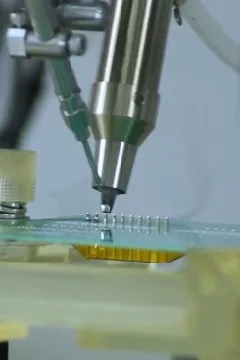

Automatic soldering robot detailed view Automatic soldering robot precision mechanism Automatic soldering robot complete setup


Zhongtu Automation manufacturing facility Zhongtu Automation production area


Automation technology showcase Precision manufacturing capability Technical expertise demonstration Advanced equipment portfolio
Industry Presence
Zhongtu Automation exhibition booth
Packaging & Shipping
Professional packaging for automation equipment Secure shipping preparation
Comprehensive Service Support
Pre-Sale ServicesIn-Sale ServicesAfter-Sale Services
  • Product Introduction
  • Technical Communication
  • Remote Consulting Service
  • Product Demonstration
  • Detailed Usage Instructions
  • Comprehensive Customer Support
  • Video Support Service
  • 1-Year Full Equipment Warranty
  • 3-Year Guide Rail/Motor/Control Parts Warranty
Frequently Asked Questions
Company Background
Who are we? We are based in Guangdong, China, established in 2015, with 11-50 professionals in our office.
Quality Assurance
How can we guarantee quality? Pre-production samples before mass production and final inspection before shipment ensure consistent quality standards.
Product Range
What can you buy from us? Soldering machines, precision spot welding machines, glue dispensers, and screw machines.
Competitive Edge
Why choose us over other suppliers? Ultra-professional service and technical expertise delivering high-performance equipment at competitive prices.
Business Terms
What services can we provide? Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.
Warranty Information
What is your warranty policy? 1-year warranty for complete units and 3-year warranty for main boards. Contact us for detailed warranty terms.
Sample Orders
Can I purchase samples? Yes! We welcome sample orders to experience our superior quality and service firsthand.
Manufacturing Capability
Are you a trading company or factory? We are professional automation machine manufacturers since 2015.
