2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface
2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface
Categories Square TFT Display
MOQ: 1000
Delivery Time: 6weeks~8weeks
interface: QSPI
Payment Terms: T/T
name: TFT color display
view angle: free view angle
resolution: 320*375
Model Number: HX0209S002
Driving IC: 9855
Brand Name: HuaXin
Supply Ability: 100K per month
Display Technology: Square LCD Display
Price: negotiation
size: 2.09"
Packaging Details: blister+foam box+bubble bag+inside carton+master carton
Certification: ISO14001/ISO9001/IATF16949
Place of Origin: China
Contact Now
Company Info.
HuaXin Technology (HK) Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2.09 Inch Square TFT Display Module with 320*375 Resolution and QSPI Interface

2.09 Inch square Type TFT Display with 320*375 Resolution and QSPI Interface 500c/d
Product Specifications
Part NO.HX0209S002
Display Typetft display
Diagonal Screen Size2.09 inch tft display
Active Area (mm)34.18*40.05
Panel size(mm)36.33x43.35x1.46
Resolution320*375
InterfaceQSPI
View angleALL
Brightness500c/d
Driving IC9855

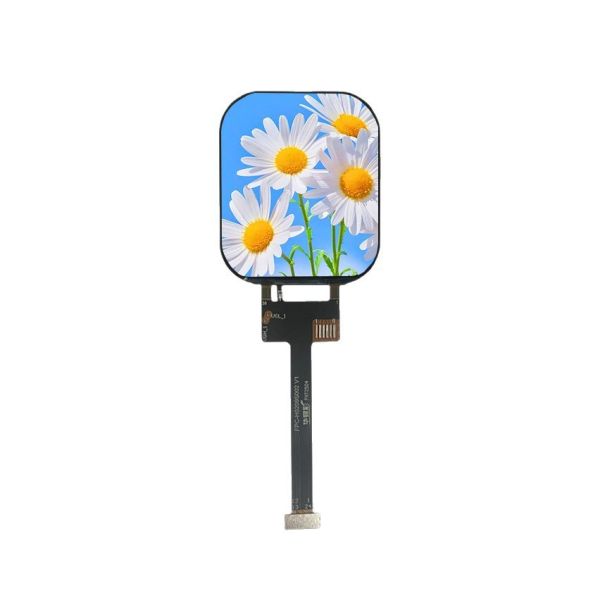

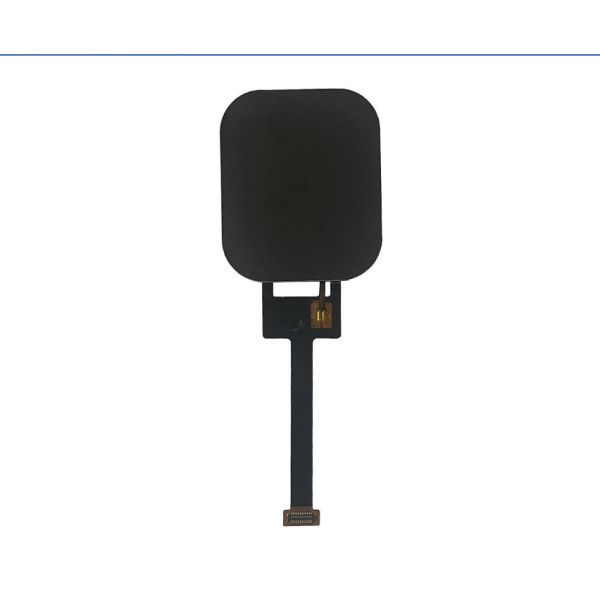

Product Images

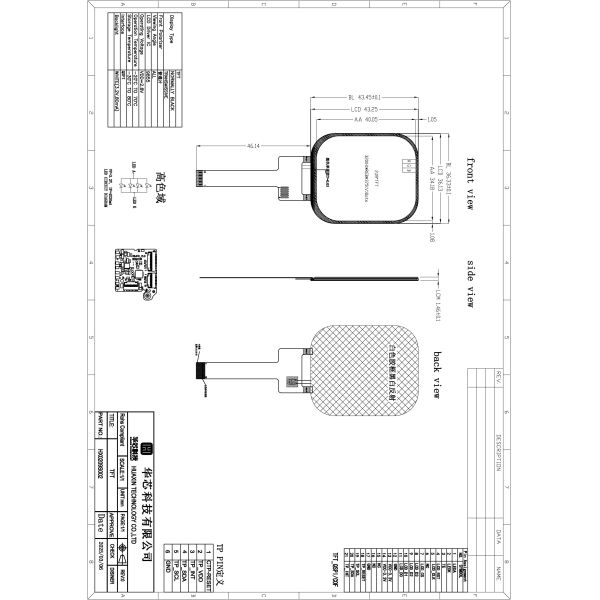

Technical Drawing



TFT Technology Overview
TFT substrate input and CF substrate input manufacturing process:
TFT and CF substrate input manufacturing flow chart
TFT structure diagram:
TFT display structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.
Company Advantages
  • Cost-effective factory base located in inland city
  • Advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineering team with 20+ years LCD experience
  • Custom product design capabilities
Certifications
  • ISO14001 Environmental Management
  • ISO9001/IATF16949 Quality Management
  • SGS LCD Module Certification
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM: COB, TBA, COG, TP, LED backlight and other series
Company Statistics
  • Registered Capital: 20 million
  • Current Staff: 500+ employees
  • R&D Team: 10% of workforce
  • Quality Control: 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: Excellent resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capabilities
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption compared to other technologies
  • Size Flexibility: Available in various sizes from small handheld to large panels
  • Backlighting: Compatible with LED backlighting systems
  • Application Range: Suitable for diverse industrial and consumer applications
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio in certain conditions
  • Backlighting requirements affect power consumption
  • Response time limitations may cause motion blur
  • Limited flexibility in physical form factors
  • Limited color gamut compared to advanced display technologies
