3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface

3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface

3.45 Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface
Categories Bar Type TFT
Model Number: HX0345S001
name: TFT LCD MODULE
Brand Name: HuaXin
Display Technology: Transflective TFT LCD
MOQ: 1000
Delivery Time: 6weeks~8weeks
Driving IC: ST7701S
Payment Terms: T/T
interface: MIPI
Supply Ability: 100K per month
Price: negotiation
view angle: ALL 0' clock
Certification: ISO14001/ISO9001/IATF16949
size: 3.45"
Place of Origin: China
resolution: 480*640
Packaging Details: blister+foam box+bubble bag+inside carton+master carton
Contact Now
Company Info.
HuaXin Technology (HK) Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3.45" Bar TFT LCD Module with 480X640 Resolution and MIPI Interface

3.45" Bar TFT LCD Module,480X640 Resolution, MIPI Interface, Driving IC ST7701S,ALL o'clock ,Transflective
Product Specifications
Part NO.HX0345S001
Display TechnologyTransflective TFT LCD
Diagonal Screen Size3.45inch
Active Area (mm)51.84(H)X69.12(V)
Panel size(mm)55.44(H)X78.89(V)X2.05(T)
Brightness(cd/m2)120
Resolution480*640
InterfaceMIPI
View angleALL o'clock
Driving ICST7701S

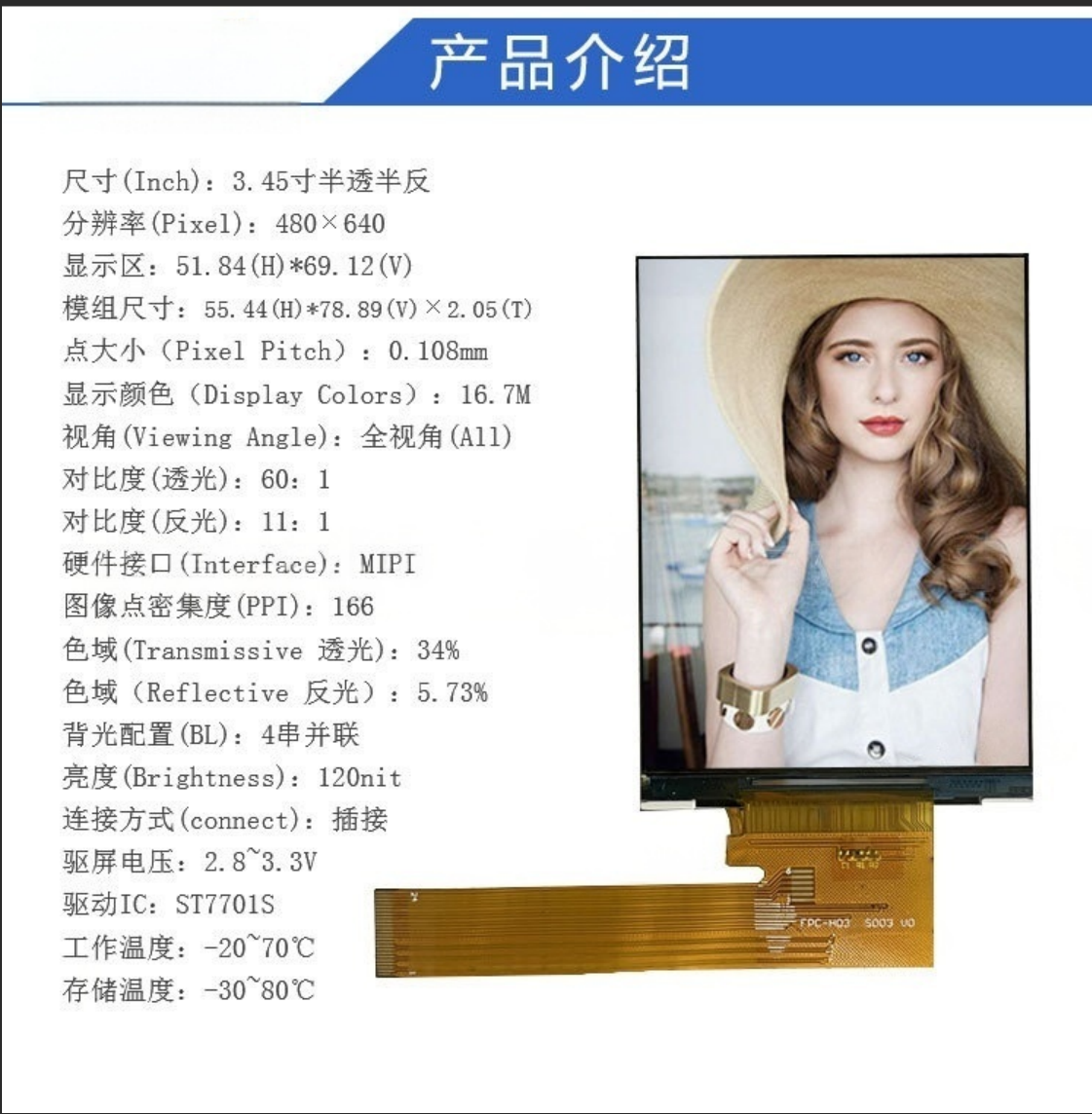

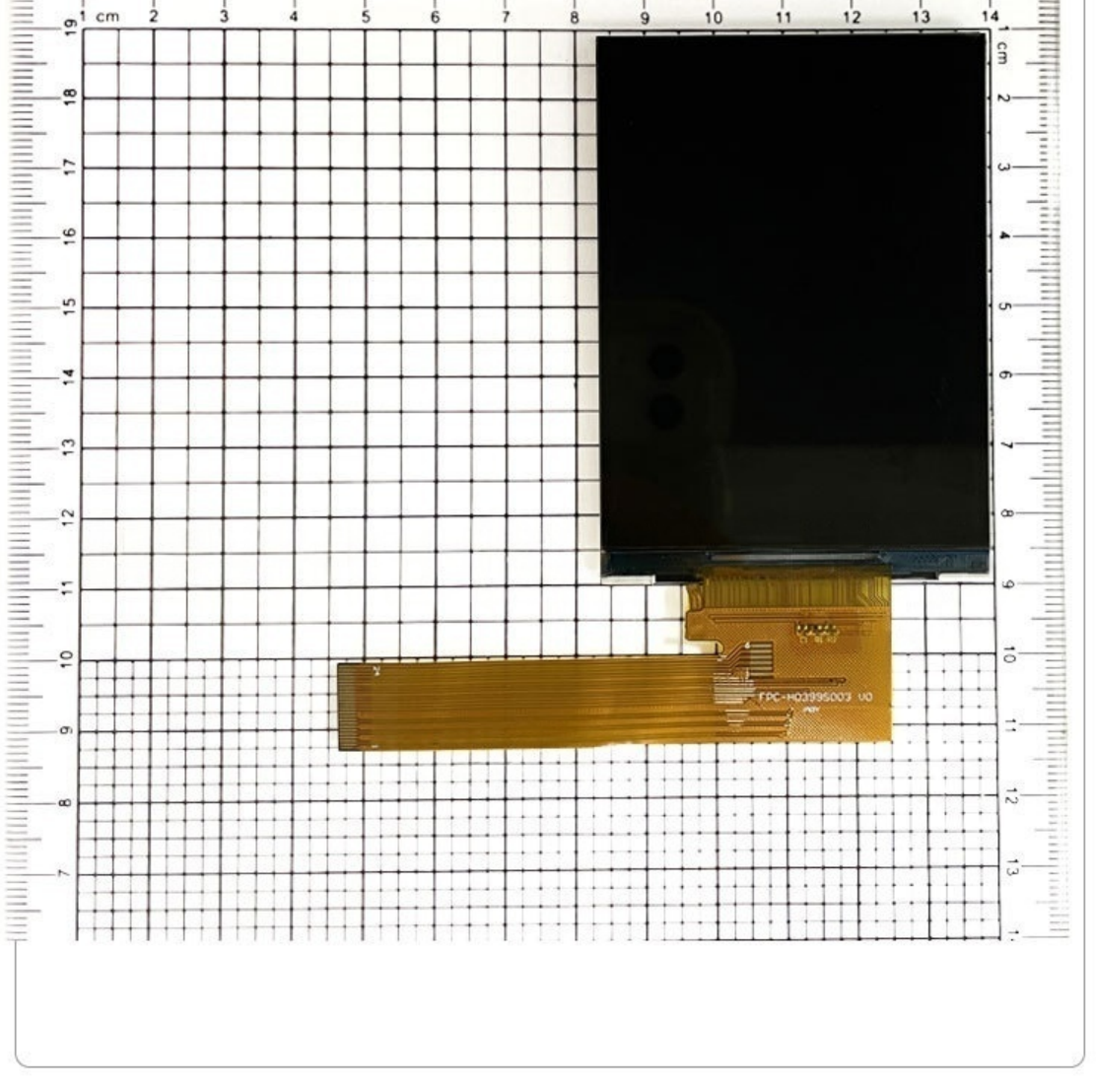

Product Picture

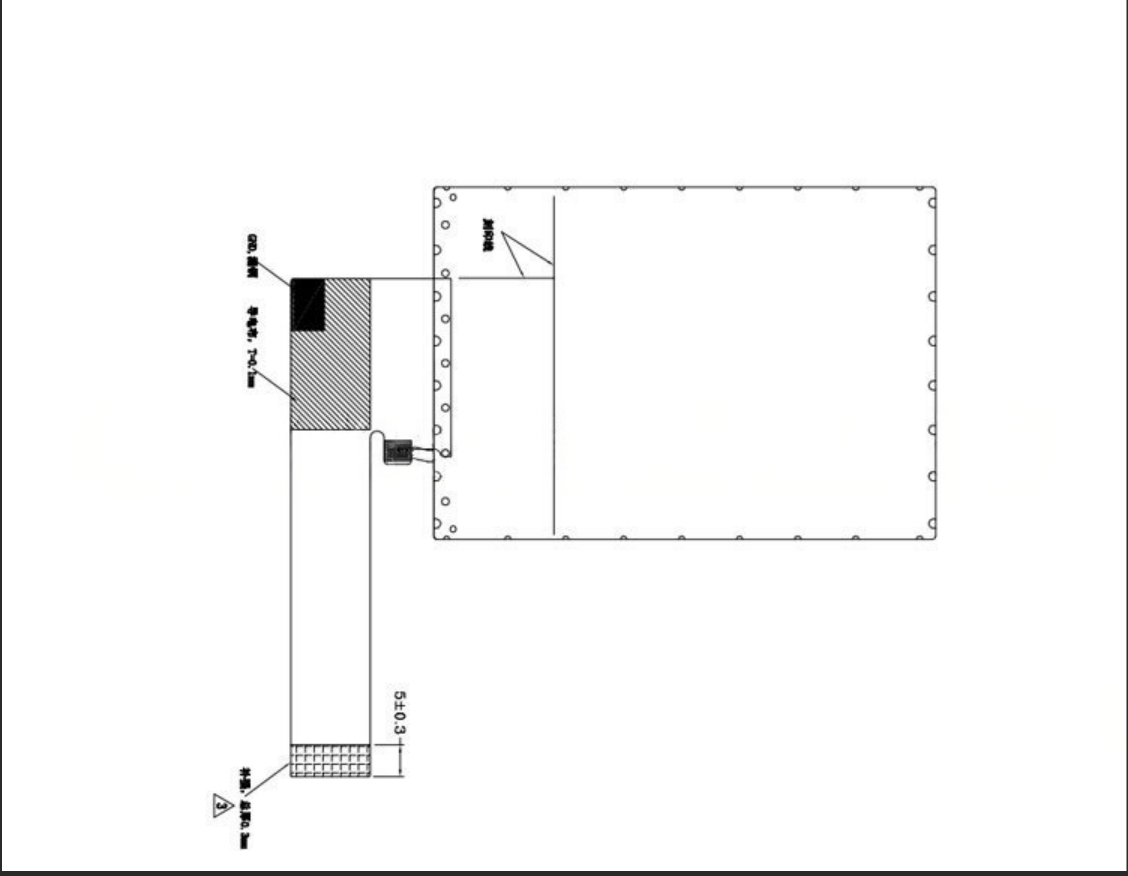

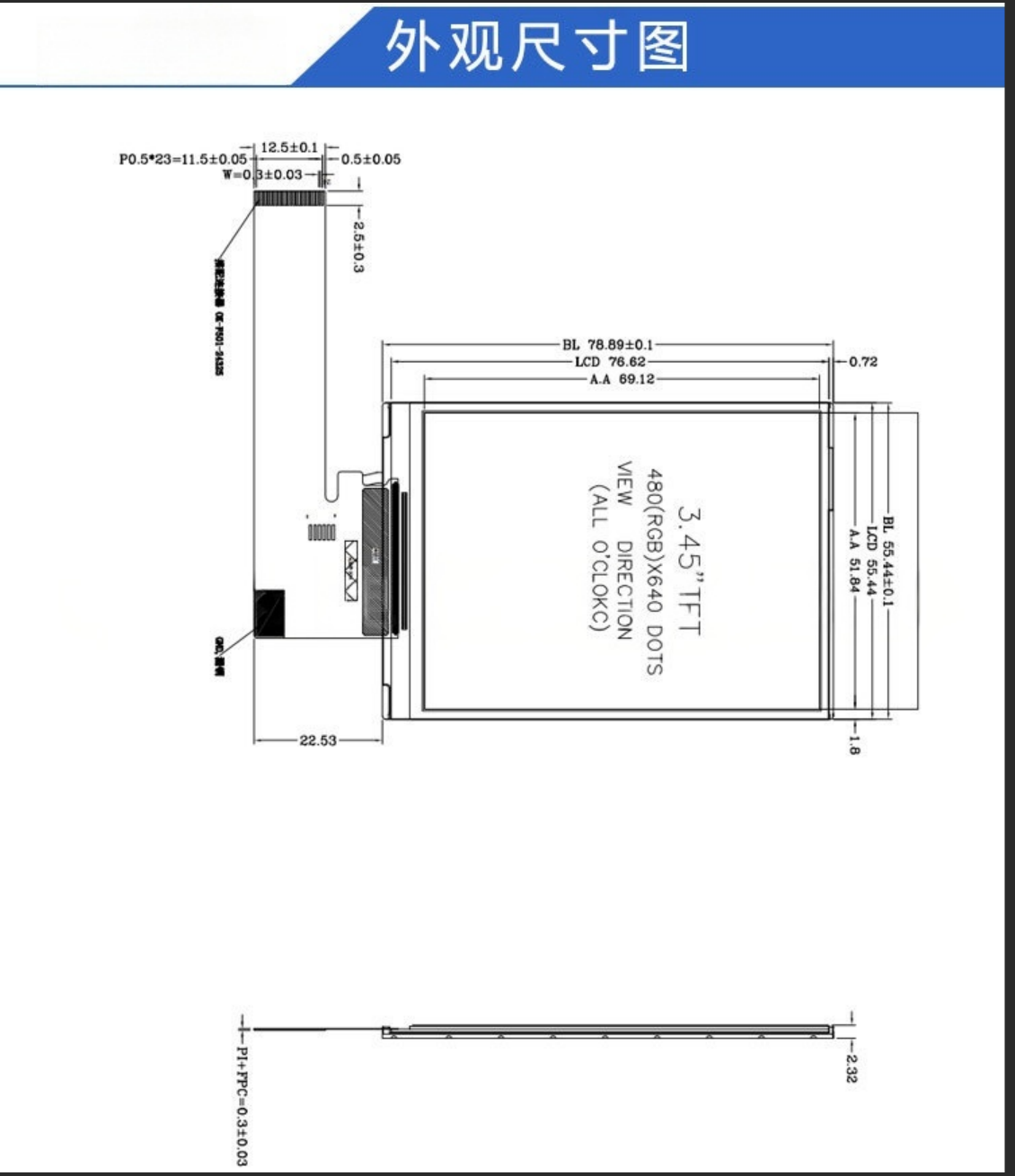

Technical Drawing


TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
