| Categories | FTTH Splitter Box |
|---|---|
| Adapter: | SC(single core) |
| Delivery Time: | 1-4weeks |
| Model.: | FDB1*2 splitting box |
| Brand Name: | Huajing |
| Material: | ABS/PC |
| Model Number: | FDB1*2 splitting box |
| Cable diameter: | Φ3 or 2x3mm drop cable |
| Price: | 10.5-21.5USD/PC |
| Max splitting: | PLC 1：2（1pcs） |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Size: | 85*187*32.5mm |
| Place of Origin: | China, Chengdu |
| Cable in/out: | 1/2 |
| MOQ: | 100 |
| Company Info. |
| Chengdu Huajing Communication Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

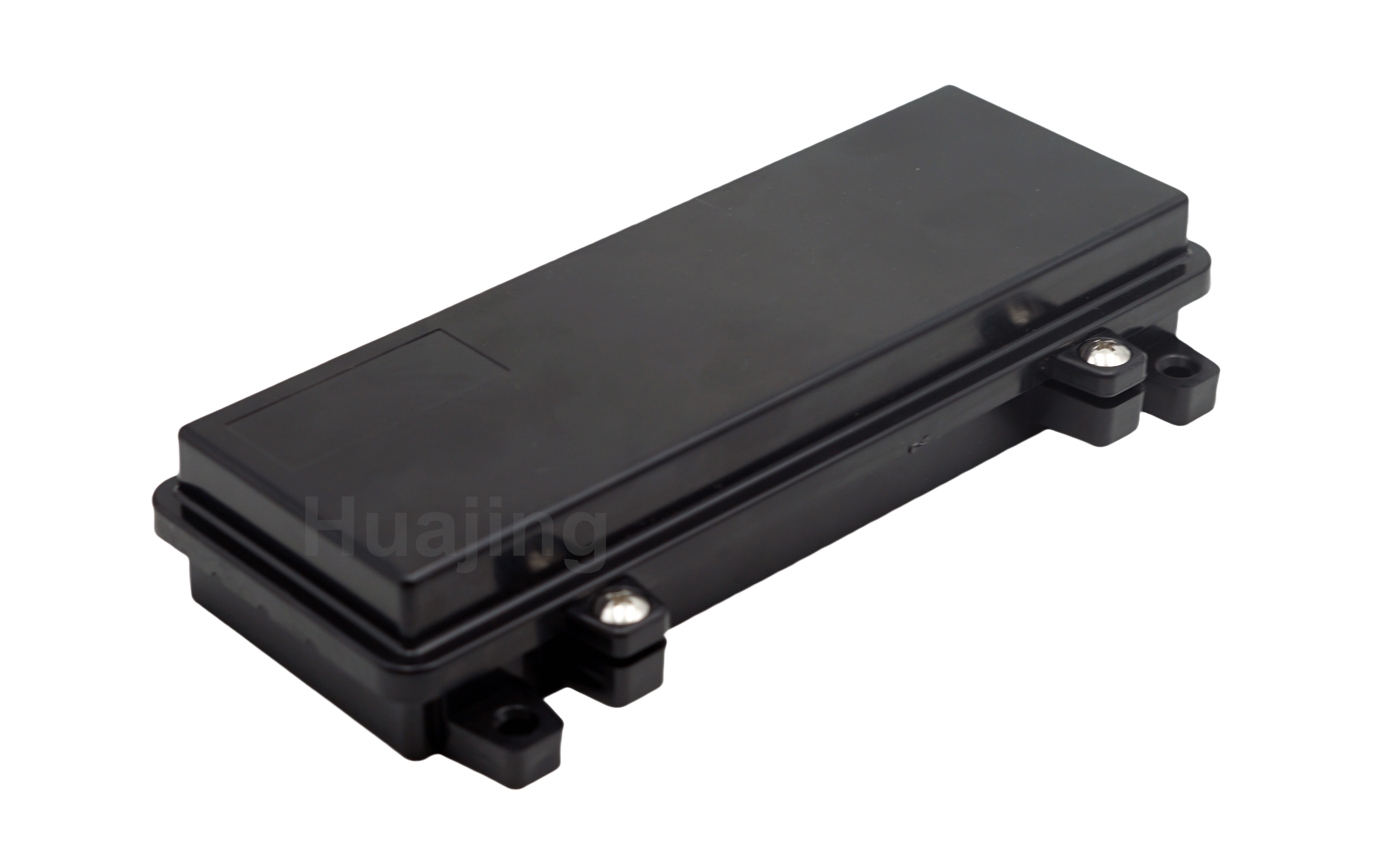

This product can realize the optical splitting of the optical cable, which is suitable for terminal access on the user side.
The box is made of high-quality, impact-resistant plastics;
Can install a 1:2 PLC splitter;
Anti-UV, anti-impact, waterproof;Wall mounting；
The cable ports are specials slots, which can fix theincoming/outgoing cables;
The pigtail output and the optic splitting are in two independent area, which is easy to operate and maintain.
●splice tray additional loss:≤0.01dB
●working temperature: - 20℃ ~ + 60℃
●side pressure: ≥2000N / 10 cm
●impact resistance:≥20N.m
●protective level: IP54
| Parameter | Packing Detail | ||
| Model. | FDB-1x2 splitting box | Carton Size(mm) | |
| Size(mm) | 85*187*32.5 | CBM(m³) | |
| Weight(Kg) | 0.145 | Grossweight(Kg) | |
| Cable in/out | 1 /2 | Others | |
| Cable diameter(mm) | Φ3 or 2x3mm drop cable | Installation | wall mounting(standard) |
| Adapter | SC(single core) | ||
|
