MINI HD-05 Harmonic Reducer

Categories HD-Mini Series
Max Allowable Input Speed: 10000rpm
Certification: CE ROHS
Place of Origin: CHINA
Ratio: 30/50/ 80
Brand Name: SENINTER
Backlash: ≤20 Arcsec
Model Number: HD-05
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

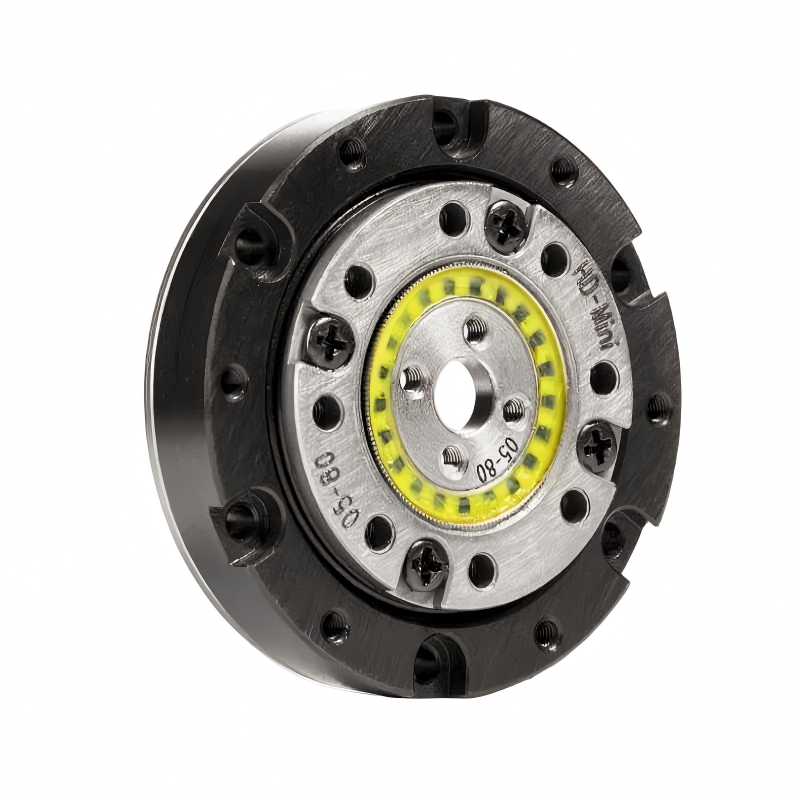

MINI HD-05 Harmonic Reducer

HD Mini-05
Micro Mini Harmonic Reducer
Weight: 0.04kg Dia.: 32mm Thk.: 10.5mm


Dimension Drawing


HD mini-05 Harmonic Reducer Parameter Table


SpecificationUnitRatio 30Ratio 50Ratio 80
Reduction Ratio-305080
Rated Torque @ 2000 rpm InputN·m0.230.380.5
Allowable Peak Torque(Start-Stop Cycle)N·m0.470.871.2
Max Allowable Continuous Average Load TorqueN·m0.350.50.82
Instantaneous Max Allowable TorqueN·m0.851.72.2
Max Allowable Input Speedrpm100001000010000
Rated Average Operating Speedrpm650065006500
Moment of Inertia10−4kg⋅m2


BacklashArcsec≤20≤20≤20
