SYCG-Ⅱ Series Harmonic Drive

SYCG-Ⅱ Series Harmonic Drive
Cup-Type Standard Structure | Zero Backlash | Coaxial Output

Product Overview

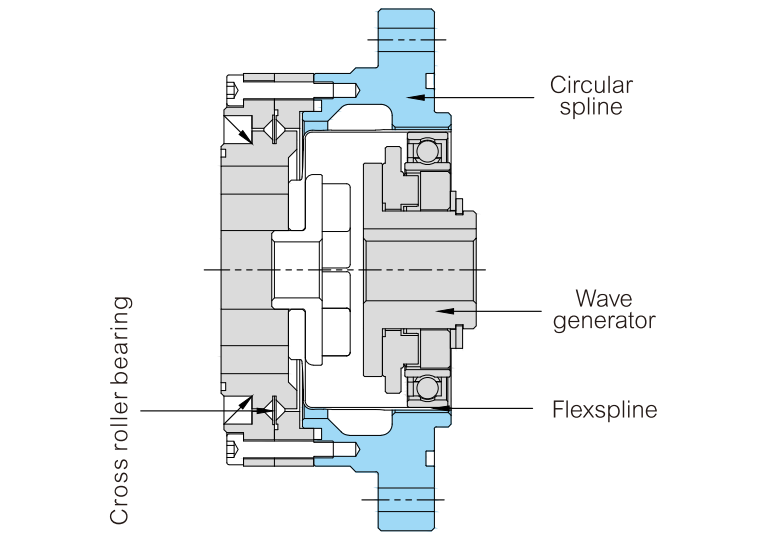

The SYCG-Ⅱ Series features a standard cup-type flexspline. The input shaft connects to the wave generator's inner bore via a cross-slider coupling. The recommended assembly method is fixing the circular spline and outputting through the flexspline, making it ideal for precision motion control applications.


Key Features

  • Cup-Type Standard Structure
    Proven, robust design with strong mounting compatibility for easy system integration.

  • Zero Backlash
    Gear engagement without backlash eliminates lost motion and improves control response.

  • Coaxial Input & Output
    Simplifies the drivetrain and reduces installation space.

  • High Positioning & Rotational Accuracy
    Delivers excellent angular precision and repeatability for demanding positioning tasks.

Typical Application Scenario
Rigid circular spline fixed, flexspline as output – ready for integration into robotic joints, rotary tables, and precision positioning systems.


Dimensional Drawings


Specifications & Performance


ModelReduction ratioRated torque at input 2000r/min(N·m)Permissible peak torque at start/stop(N·m)Permissible max.ave.load torque(N·m)Instantaneous permissible max.torque(N·m)Permissible max.input speed(r/min)Permissible ave.input speed(r/min)Backlash≤(arcsec)Transmission accuracy≤(arcsec)
1450723946800035002090
148010301451800035002090
1410010361470800035001090
175021443491700035002090
1780295635113700035002090
17100317051143700035001090
2050337344127600035002060
2080449661165600035002060
201005210764191600035001060
201205211364161600035001060
25505112772242550035002060
258082178113332550035002060
2510087204140369550035001060
2512087217140395550035001060
325099281140497450035002060
3280153395217738450035001060
32100178433281841450035001060
32120178459281892450035001060
4050178523255892400030001060
40802686753691270400030001060
401003457384841400400030001060
401203828025861530400030001060
