Vertical Horizontal Universal High Frequency Electrodynamics
Vibration Tester
ASLI Electrodynamic Vibration Test Systems are engineered to
simulate real-world vibration conditions that products encounter
during transportation, operation, and various applications. These
systems perform comprehensive vibration tests including sine,
random, sweep, and resonance search to identify mechanical
weaknesses and enhance product reliability.
Widely utilized across multiple industries including electronics,
automotive components, aerospace products, batteries, and packaging
for mechanical reliability testing.
Technical Specifications
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
High Frequency Vibration Tester Features
- Robust suspension system and linear motion guiding with strong
carrying capacity and high stability
- Excellent performance on amplitude variation
- High efficiency D Class power conversion with 3-Sigma peak current
for optimized power consumption
- Rapid self-test diagnostics and chain safeguard for enhanced safety
and reliability
- Perfect waveform reproduction and reduced vibration transmission
- Versatile applications with both vertical and horizontal tables
- Simple operation with user-friendly controller interface
Vertical Expander Configuration
Horizontal Expander Configuration

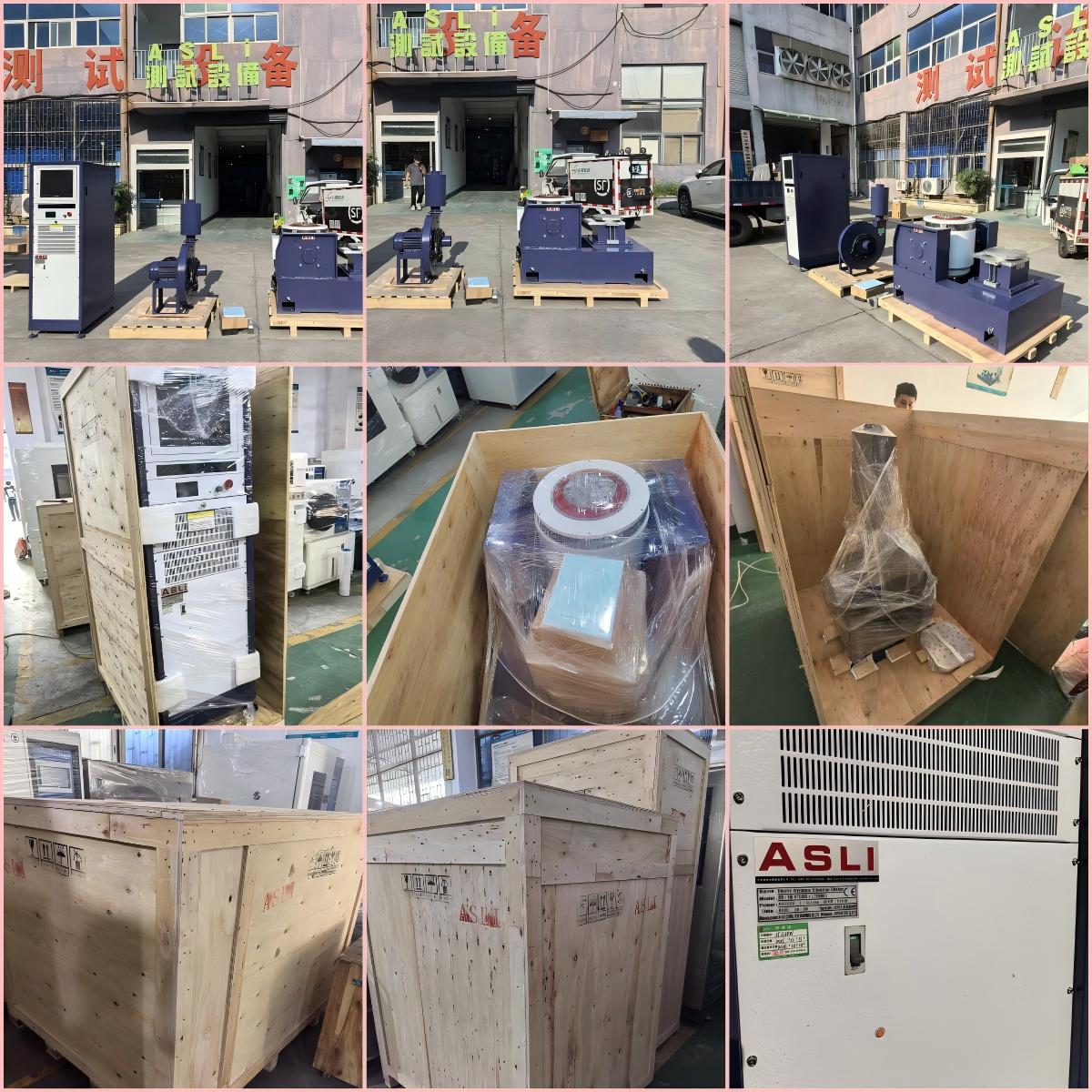

Packaging & Shipping
Company Information

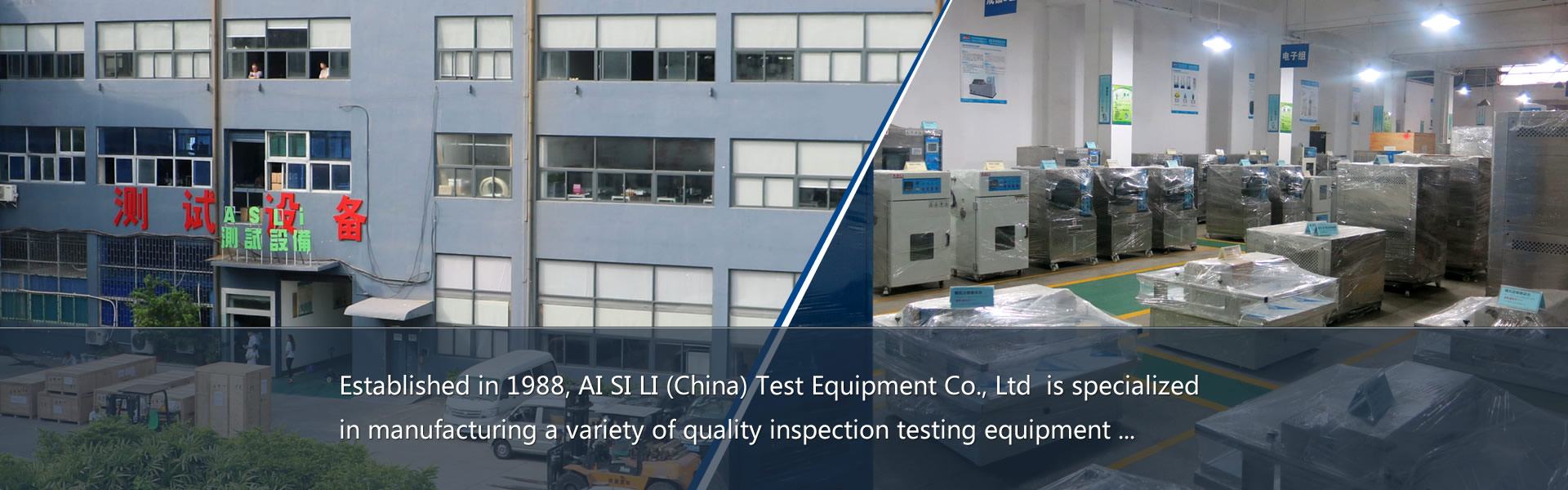

AI SI LI (CHINA) TEST EQUIPMENT CO., LTD. (ASLI) was established in 1988 and is a professional manufacturer of
environmental and mechanical test equipment based in Dongguan,
China.
With decades of experience in testing technology, ASLI provides
both standard and customized testing solutions for industries
including automotive, electronics, aerospace, photovoltaics,
packaging, and pharmaceuticals.
We are committed to providing reliable testing equipment and
professional solutions to help customers improve product quality,
reliability, and durability.
Our Services
Technical Consultation
We help customers identify suitable testing equipment based on test
standards, sample dimensions, weight, test conditions, and
application requirements.
Customized Solutions
We provide customized testing equipment and configurations to meet
specific requirements including chamber size, temperature and
humidity range, test table size, vibration force, and other special
needs.
Equipment Manufacturing
As a direct manufacturer, ASLI manages the entire equipment
manufacturing process to ensure reliable quality, stable
performance, and consistent technical specifications.
Installation & Commissioning
Our engineers provide equipment installation, commissioning, and
operational verification at customer facilities when required.
After-Sales Technical Support
Our technical team provides remote technical support and on-site
service when necessary, helping customers solve equipment and
testing-related issues efficiently.
If you have any questions or requirements about our Vertical
Horizontal Universal High Frequency Electrodynamics Vibration
Tester, please feel free to send your inquiry.
