Type 21 Replace to JohnCrane Elastomer Bellows for Pump Mechanical Seal

Categories Water Pump Mechanical Seal
Productname: Water Pump Mechanical Seal
Supply Ability: 1000/Set/Month
Key Word: T21 mechanical seal
Model Number: T21
Face: VIT/NBR
Oem Service: Available
Price: consult
Packaging Details: Details Carton
Seal Faces: CAR/CER/SIC
Brand Name: YUE MI
Seal: Submersible Pump Seal
MOQ: 10/PCS
Transport Package: box
Payment Terms: T/T
Features: Self-aligning, Easy to Install, Durable
Delivery Time: 5-8 work days
Processing: Drawing
Certification: ISO SGS
Company Info.
YUEMI
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

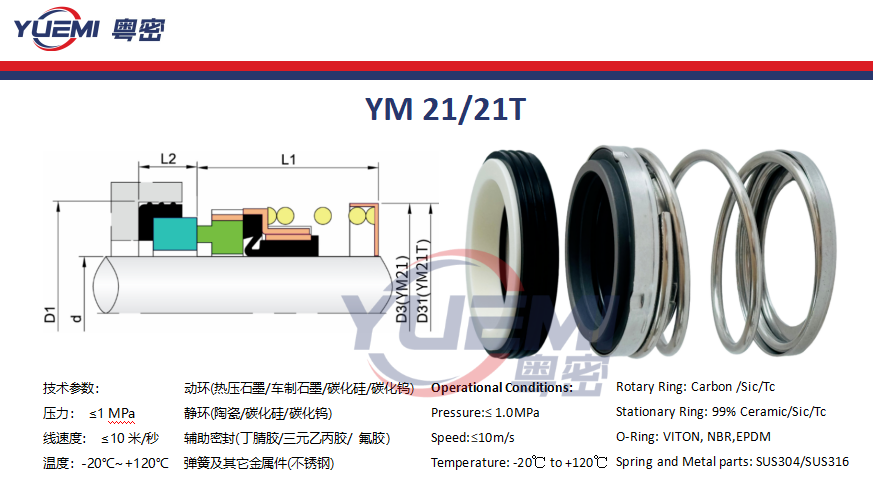

Type 21 Replace to JohnCrane Elastomer Bellows for Pump Mechanical Seal

Product Description

Alternative to: John crane type 21 seal/AES P04/ P04T seal/ Flowserve ( Pac-Seal) 110 seal/ Roten 21A seal/ SEALOL 43 CU Short/ / STERLING 212A /VULCAN 11 seal

The Type 21 is ideal for use in centrifugal, rotary and turbine pumps, compressors, chillers and other rotary shaft equipment. It is also commonly used by the wastewater and water systems industries for applications such as waste treatment, potable water and HVAC.

Operating Limits:
Pressure: ≤10 Bar
Temperature: -20ºC~180ºC
Speed: ≤ 12 m/s
Material:
Face: Carbon,SiC, SSiC, TC
Seat: SiC, SSiC, TC
Secondary Sealing: FKM/NBR/EPDM
Metal: 304SS,316SS
Features
  • The drive band's "dent and groove" design eliminates overstressing of the elastomer bellows to prevent bellows slip and protect the shaft and sleeve from wear.
  • Non-clogging, single-coil spring provides greater dependability than multiple spring designs and will not foul due to fluid contact.
  • Flexible elastomer bellows automatically compensates for abnormal shaft-end play, run-out, primary ring wear and equipment tolerances.
Parameters
TEMPERATURE LIMITS

-40°F to 400°F/-40°C to 205°C (depending on materials used)

PRESSURE LIMITS

150 psi(g)/10 bar(g)

SPEED LIMITS

Up to 2500fpm/13m/s, depending on configuration and shaft size

Recommended Applications
  • Process pumps
  • Other rotating equipment
