| Categories | Data Buoy |
|---|---|
| Battery Capacity: | Up to 8 × 100 Ah Lithium Batteries |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Overall Height: | 5571 mm |
| Model Number: | DX-ST3000 |
| Total Weight: | 3.7 t |
| Surface Treatment: | Anti-Corrosion Epoxy Painting |
| MOQ: | 1 |
| Delivery Time: | 30days |
| Packaging Details: | cartons/pallets |
| Internal Compartment: | Ø1800 × H1200 mm |
| Price: | Negotiable |
| Manufacturing Process: | Steel Plate Forming & Gas-Shielded Welding |
| Supply Ability: | 10pcs/month |
| Freeboard: | 2740 mm |
| Certification: | ISO9001,IEC, IALA |
| Float Diameter: | 3000 Mm |
| Brand Name: | Dexonmarine |
| Draft: | 1560 mm |
| Place of Origin: | Qingdao |
| Company Info. |
| Chengdu Dixin Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Large internal service space, 6.5-tonne buoyancy and expanded onboard system capacity
3000 mm Diameter | 6.5 t Buoyancy | Ø1800 * H1200 mm Internal Space | 8 * 100 Ah Battery Provision
The large internal compartment provides dedicated space for batteries, controllers and supporting onboard components.
A larger equipment area makes internal components easier to arrange, inspect and maintain.
The 3000 mm platform provides additional room for navigation, communication, monitoring and power systems.
As more equipment is integrated into a navigation buoy, the challenge is no longer simply whether the buoy can carry the load.
Installation space, component arrangement and maintenance access also become important.
The DX-ST3000 provides an Ø1800 * H1200 mm internal compartment, giving project teams significantly more room to organize batteries, control equipment and other onboard components within a defined internal space.

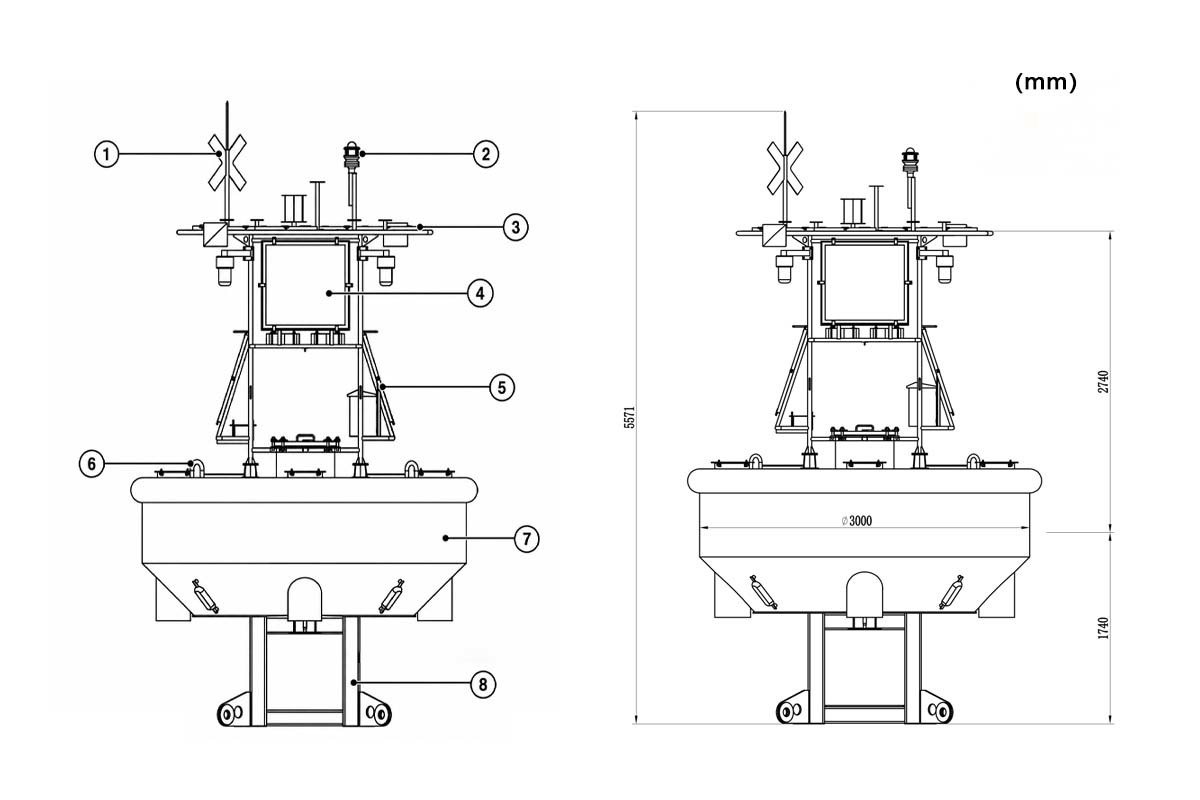

| (1)IALA Top Mark | (2)Navigation Lantern | (3)Upper Equipment Platform | (4)Equipment Enclosure |
| (5)Tower Structure | (6)Lifting Eye | (7)Main Hull | (8)Lower Support Frame |
The current configuration can accommodate up to 8 * 100 Ah lithium batteries, providing greater flexibility when several onboard systems share the buoy's power infrastructure.
Battery quantity and final power configuration can be determined according to the installed equipment and actual project demand.
| System Capacity | Confirmed Configuration |
|---|---|
| Main Float | Ø3000 mm |
| Total Buoyancy | 6.5 t |
| Maximum Payload | 500 kg |
| Internal Compartment | Ø1800 * H1200 mm |
| Battery Provision | Up to 8 * 100 Ah |
Yes. Navigation, communication, monitoring, control and power equipment can be reviewed together when planning the final internal and upper-structure layout.
The arrangement should consider equipment dimensions, power connections, service access, heat management and the required relationship between individual system components.
Future equipment requirements can be considered during the initial configuration so that available internal and structural space is reviewed before production.
|
