PLC Automatic Continuous Electroplating Equipment for Metal Products

Automatic Continuous Electroplating Equipment

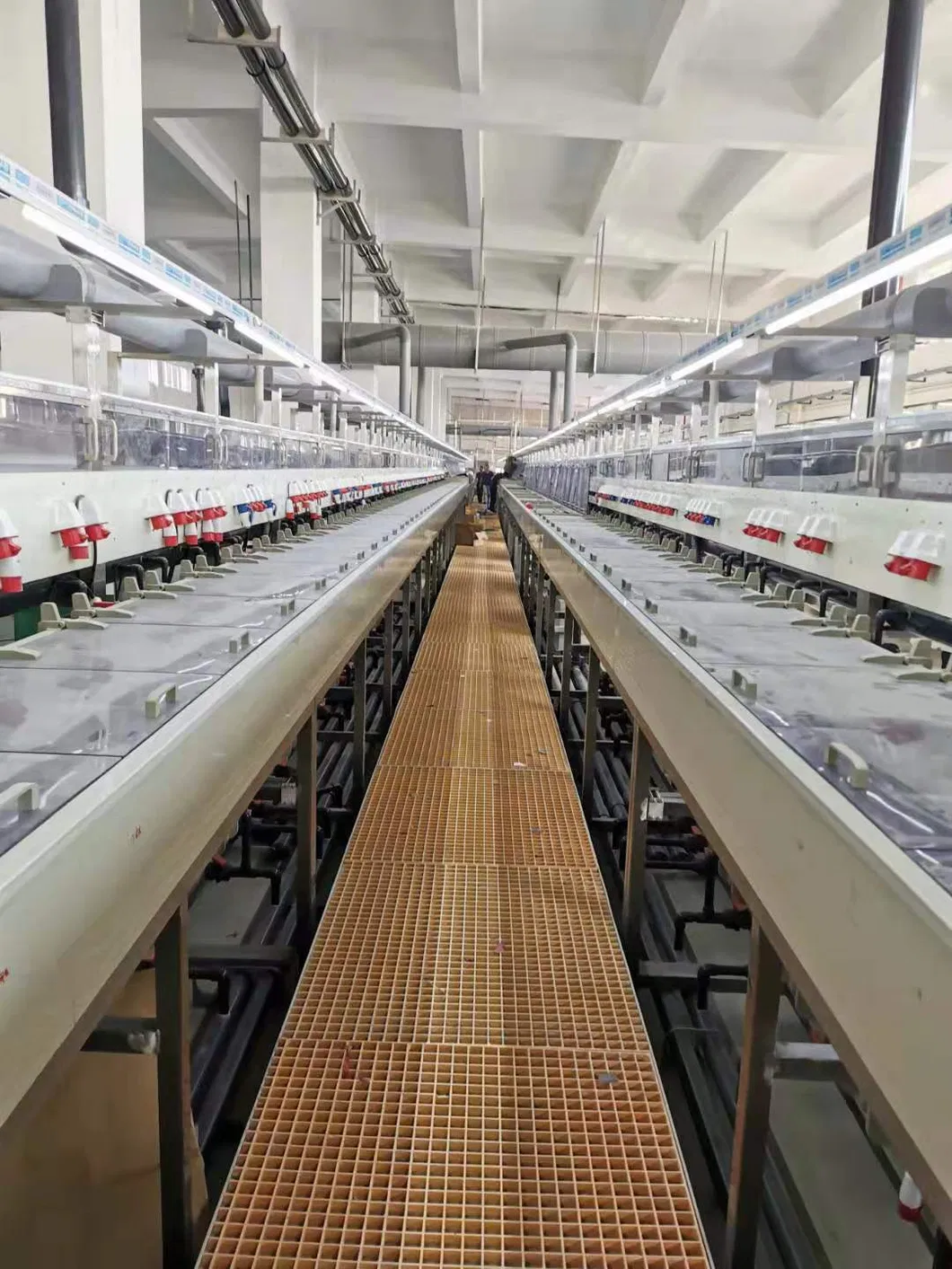

This automatic continuous electroplating equipment is designed for continuous surface finishing of reel-fed metal products and other suitable conductive materials. The system integrates material feeding, pretreatment, electroplating, rinsing, post-treatment, drying and material collection into a continuous production process.
The equipment is engineered for applications that require stable process control and repeatable coating quality. Process tanks, chemical circulation, rinsing stages, rectifiers, filtration, cooling, heating and exhaust treatment can be configured according to the selected plating process.
Greatwell provides customized equipment design, fabrication, electrical control integration, installation guidance and after-sales technical support for continuous electroplating projects.

Continuous Electroplating Process

A typical continuous plating sequence can be configured as:
Material Feeding → Pretreatment → Cleaning → Electroplating → Rinsing → Post-Treatment → Drying → Material Collection

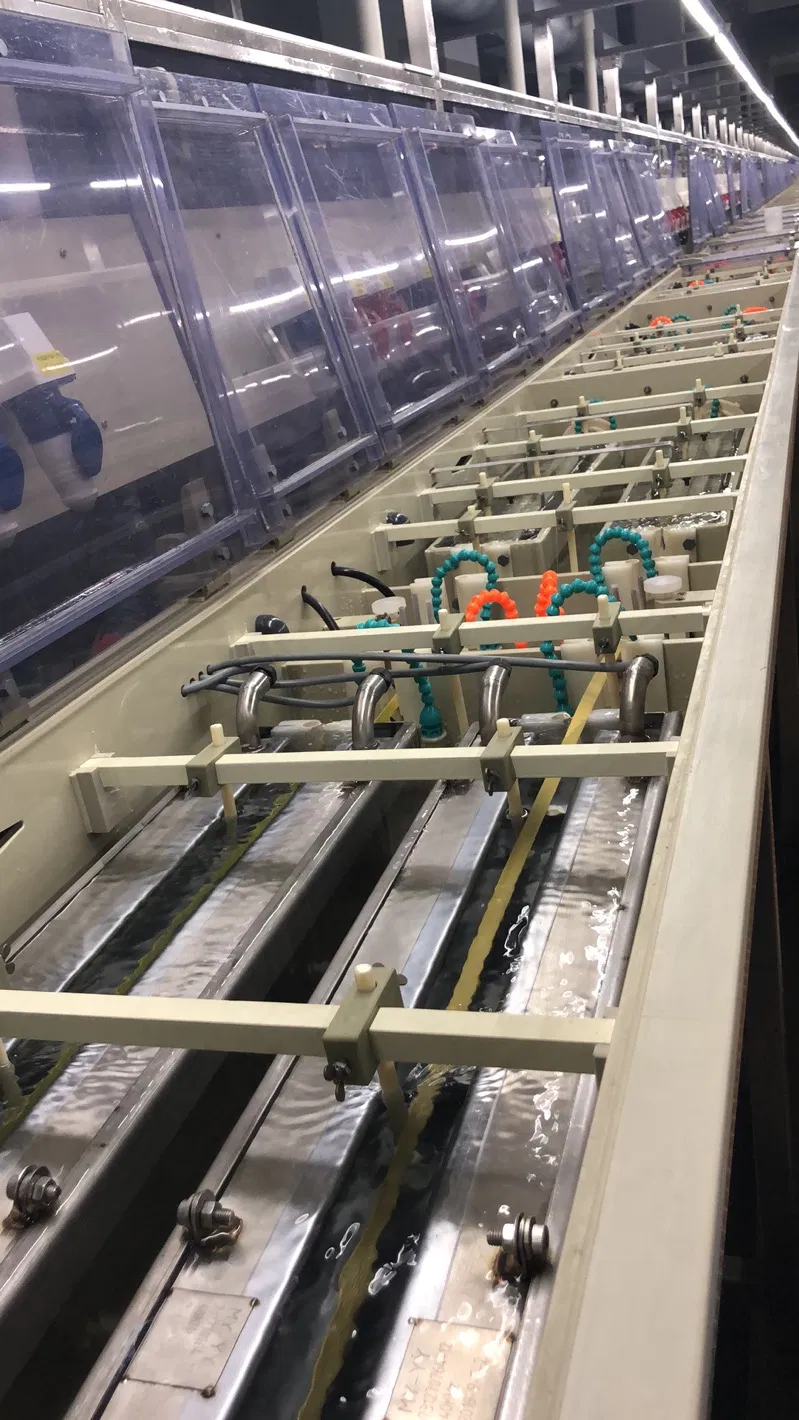

The material is continuously fed through the processing sections at a controlled speed. During electroplating, the workpiece passes through the selected plating solution while the rectifier provides the required electrical current.
Multiple rinsing stages can be arranged between process tanks to reduce solution carryover. Depending on the process, heating, filtration, cooling, air agitation and chemical circulation systems can also be integrated into the line.
The final process sequence and equipment configuration are determined according to the substrate material, plating chemistry, coating specification and required production conditions.

Applications

The continuous electroplating system can be configured for suitable conductive metal products and reel-fed materials, including:

• Metal strips

• Copper alloy components

• Electronic terminals

• Connector components

• Precision metal parts

• Other continuous or reel-fed metal products

The final equipment configuration depends on the substrate, plating chemistry, coating specification, product dimensions and required production conditions.

Tank Design & Manufacturing

The plating tanks are engineered according to the chemical environment and process requirements of the continuous plating line.

• Tank material: PP and 304 stainless steel configurations are available according to the process.

• PP construction: Selected tanks can use Röchling PP sheets with reinforced structures for chemical resistance and mechanical stability.

• Tank reinforcement: Heating tanks can be reinforced with square steel tube structures where additional mechanical strength is required.

• Tank covers: Transparent tempered glass or PP covers can be configured according to the process section.

• Drainage design: Chemical outlets and drainage points are arranged at the tank bottom to facilitate solution discharge and tank cleaning.

• Rinsing system: Multi-stage rinsing can use counter-flow water movement to improve rinsing efficiency and reduce water consumption.

• Welding quality: PP tank welding is controlled for structural strength, smoothness and sealing performance.

Automatic Control System

The continuous electroplating line uses a PLC-based control system with computer monitoring and DMS functions for coordinated operation of the production process.
The control system can manage equipment sequences and monitor key operating conditions throughout the line. Automatic material handling, process timing and auxiliary equipment operation can be integrated into the control architecture according to the project requirements.
The system can also be configured with safety interlocks and emergency-stop functions to support safe operation and controlled shutdown.

Quality Control

Each continuous electroplating system is inspected during fabrication, assembly and pre-shipment testing.

• PP tank welding and structural inspection

• Tank drainage and piping inspection

• Electrical cabinet and PLC wiring inspection

• Rectifier and power supply testing

• Pump and filtration system inspection

• Heating and cooling system testing

• Automatic material handling test

• Safety interlock and emergency-stop testing

• PLC sequence and control-function testing

• Final assembly and trial-run inspection

For customized projects, factory acceptance testing can be arranged according to the agreed technical specifications before shipment.

Manufacturer & Engineering Experience

Greatwell specializes in the design and manufacture of electroplating equipment and environmental protection systems. The company's equipment portfolio covers continuous and reel-to-reel plating systems, automatic gantry plating lines, barrel plating lines, rotary vertical plating lines and other customized surface finishing equipment.
For continuous electroplating projects, the engineering team can support process layout, tank configuration, material handling, electrical control integration and auxiliary system selection according to the customer's production requirements.
The company provides equipment design, fabrication, installation guidance and after-sales technical support as part of its project service.

FAQ

1. What is continuous electroplating equipment?

It is an automated plating system designed to process suitable metal products continuously through pretreatment, electroplating, rinsing, post-treatment and drying sections.

2. Can the equipment be customized?

Yes. Tank configuration, process sequence, material handling, control system and auxiliary equipment can be customized according to the production requirements.

3. What auxiliary equipment can be integrated?

Rectifiers, filtration systems, chillers, heating systems, air blowers, piping and waste gas treatment can be integrated according to the selected process.

4. Is the equipment fully automatic?

The system can be configured for automatic material handling and PLC-based process control. The automation level depends on the project configuration.

5. What is the warranty period?

The standard warranty is 12 months, subject to the agreed equipment and project terms.
