| Categories | Thermoforming Machine |
|---|---|
| Model Number: | DH500 Thermoforming Machine |
| Forming Area: | 500×350mm |
| Forming Depth: | 65mm |
| Certification: | CE Certification |
| Brand Name: | Wenzhou Beyond Machine Co., Ltd. |
| Place of Origin: | CHINA |
| Company Info. |
| Wenzhou Beyond Machine CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

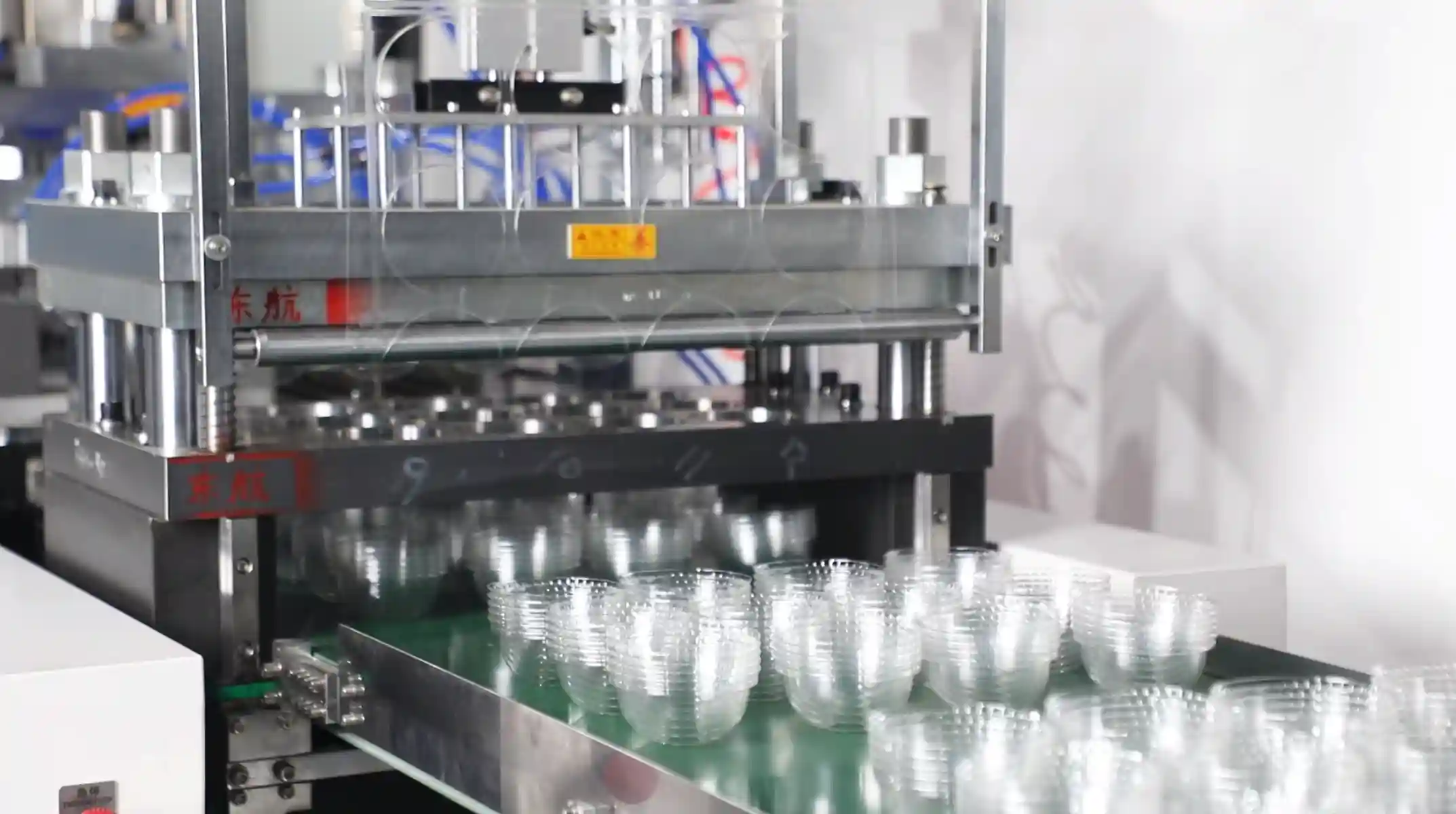

The DH500 thermoforming machine is a compact full-servo option for projects producing thin-gauge plastic packaging from sheet rolls. It combines forming, punching, cutting, and stacking.
Features:
 |  |  |  |
| Food Packaging Box | Plastic Cup Lid | Sauce Cup | Clamshell |
 |  |  |  |
| Food Container | Blueberry Box | Fruit Packaging Box | Food Trays |
| Product family | Details to send before mold design |
|---|---|
| Food containers | Length, width and depth; number of compartments; whether the container uses a separate lid or sealing film; how the empty containers should stack. |
| Trays | Length, width and depth; what the tray will hold; any pockets or raised sections; rim requirements. |
| Clamshells | Dimensions when open and closed; a sample showing the hinge and closure. |
| Cup or bowl lids | A sample of the matching cup or bowl; lid diameter and height; flat or dome shape; any drinking or vent openings. |
Send a product photo, sample or drawing, together with the sheet material, sheet thickness and required output. If you do not have a drawing, start with clear photos and basic measurements.
We first check the material, product depth and complete mold layout against the machine specifications. During a trial, use the intended sheet and check the finished shape, cut edges, lid fit or closure, and stacking. Record the running conditions and accepted output so the proposed configuration can be evaluated against your production needs.
| DH500 | DH500-L | |
|---|---|---|
Suitable Material | PET,PS,PLA,PVC | |
Max. Forming Area | 500×350mm | |
| Max. Forming Depth | 65mm | |
| Material Thickness | 0.15-0.7mm | |
| Working Speed | 20-30 cycles/min | |
| Max. Sheet Width | 520mm | |
| Max. Sheet Roll Dia. | 1000mm | |
| Max. Forming Force | 180kN | |
| Max. Cutting Force | 180kN | 220kN |
| Heating Power | 24kW | |
| Total Rated Power | 26kW | |
| Average Power Consumption | 6-8 kW | |
| Air Pressure | 0.6-0.8Mpa | |
| Air Consumption | >2m³/min | |
| Cooling Water Consumption | 1.5m³/h | |
| Dimension(L×W×H) | 7.3×1.2×1.95m | 8.1x1.2x2.3m |
| Weight | 3200kg | 3700kg |
| Power Supply | 380V, 3Ph, 50Hz | |
 |  |  |

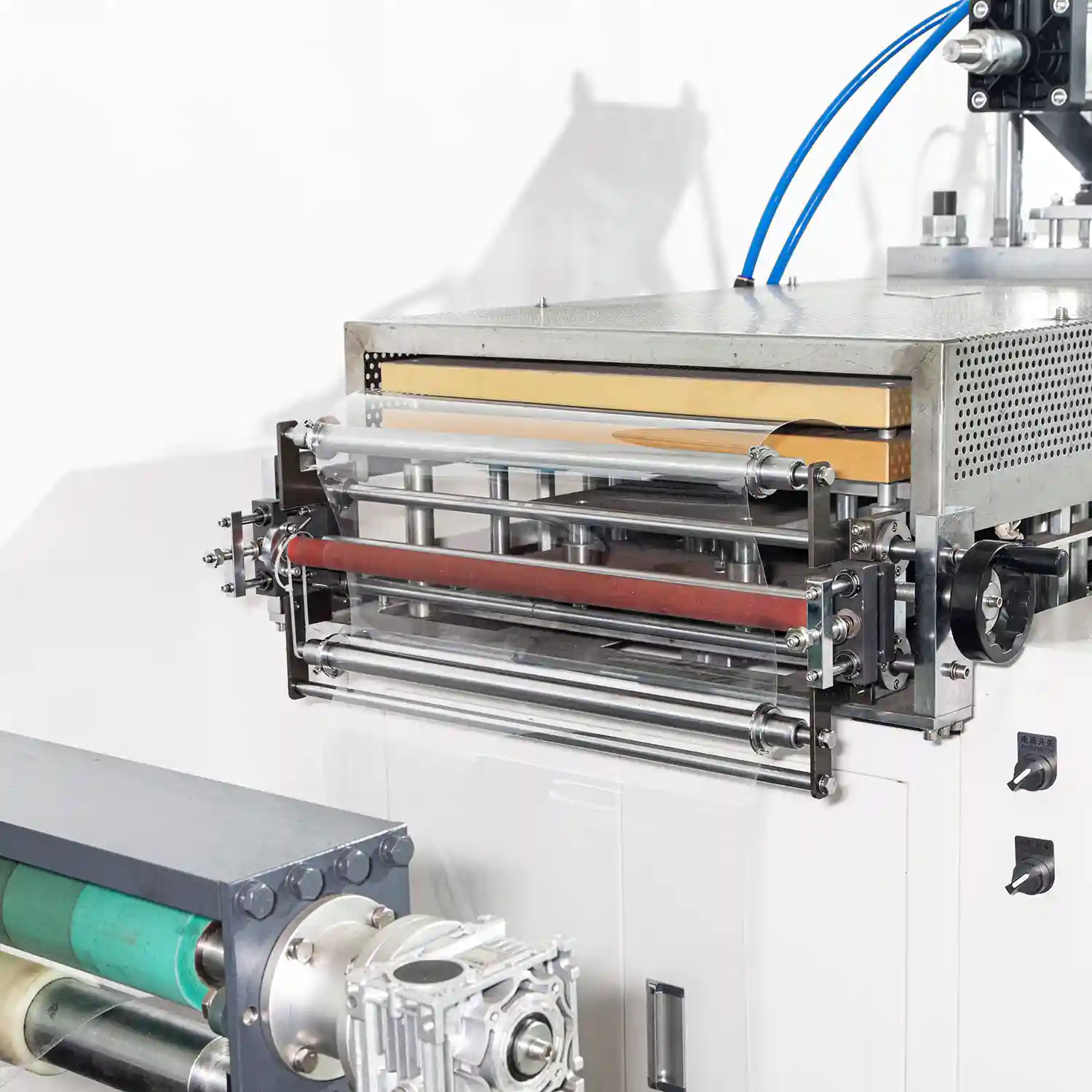

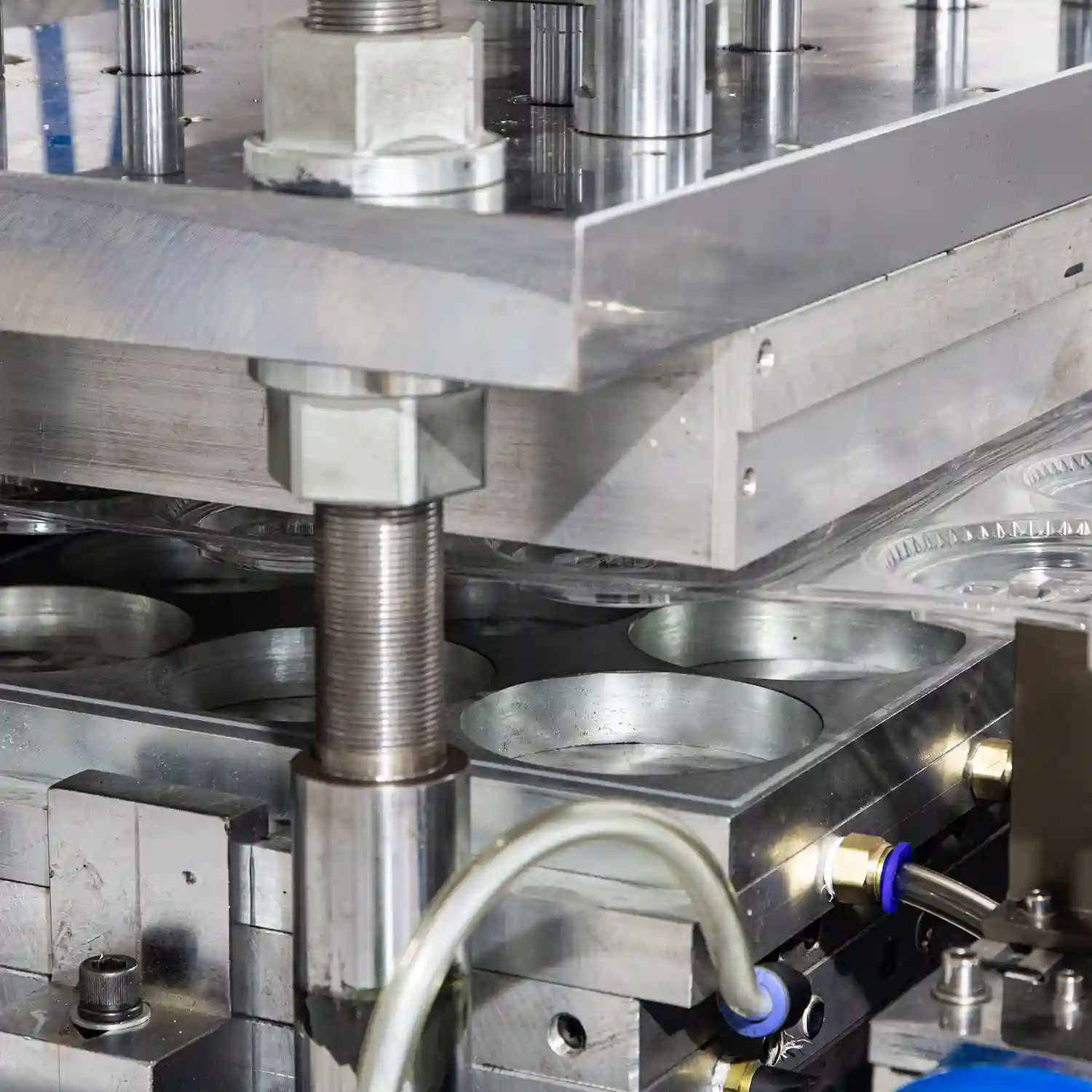

| SHEET FEEDING | HEATING | FORMING |
 |  |  |
| PUNCHING | CUTTING & STACKING | WINDING |
Separate total rated power from average running consumption. The standard power supply is 380 V, 3 phase, 50 Hz. Compare the air and cooling figures above with your plant capacity, and add roll-loading, mold-handling access to the machine footprint.
What packaging projects should first consider DH500?
DH500 is designed for food containers, trays and lids in PET, PS, PLA or PVC. Its 500 × 350 mm forming area and 65 mm maximum depth.
Can a photo replace a product drawing?
Clear photos and basic length, width, depth and rim measurements can start the discussion. A dimensioned drawing or sample is needed before final mold and cutting approval.
What do you check beyond the finished product size?
Review cavity spacing, cut allowance, sheet width and thickness, rim or lid fit, nesting and stack direction. These can change the practical mold layout.
How do I compare DH500 with DH500-L?
Both share the 500 × 350 mm forming area. DH500-L adds laser steel rule die cutting and robotic stacking; choose by the actual cut edge and handling requirement.
|
