| Categories | Diamond Core Drill Rig |
|---|---|
| Drilling depth: | 50M |
| Type: | Rotary Drilling Rig,High Pressure Crawler Drill,Core Drilling Rig |
| Supply Ability: | 2000 sets/day |
| Color: | red,Yellow |
| Packaging Details: | wooden box |
| Product Name: | ST 50 Core Drilling Machine |
| Condition: | New |
| Delivery Time: | 7 days |
| Diameter: | 42mm |
| Brand Name: | SHITAN |
| Price: | 3600-4500USD |
| Model Number: | ST-50 |
| Warranty: | 1 Year |
| Payment Terms: | T/T,Western Union |
| Place of Origin: | China |
| MOQ: | 1 set |
| Weight: | 180KG |
| Certification: | ISO |
| Company Info. |
| Jinzhou Shitan Machinery Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

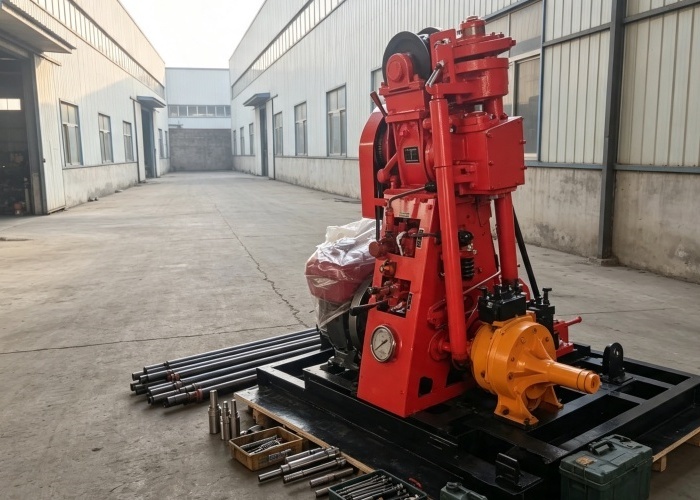

The SPT 50M Bore Rig Machine is a versatile hydraulic drilling system featuring oil pressure feeding with high, medium, and low speed capabilities. This compact drilling rig offers significant advantages including lightweight construction, simple operation, rapid drilling speed, and large diameter core sampling capacity. It is widely used throughout China for geological exploration in challenging terrains.
| Parameter | Specification |
|---|---|
| Diameter of Bore Hole | 73-108mm |
| Maximum Depth | 50m |
| Drill Rod Diameter | 42mm |
| Rotary Speed | 70-650 r/min |
| Reverse Speed | 50-130r/min (R) |
| Diesel Power | 5.7kW |
| Machine Dimensions | 1180*680*1600mm |
| Weight | 180kg |
Compact and lightweight design for geological survey work in high altitude and difficult terrain areas
Hydraulic automatic feeding mechanism improves drilling efficiency and reduces operator labor intensity
8-horsepower high-efficiency sampler provides consistent, powerful power output
Four sets of vertical axle box bearings ensure sufficient rigidity for handling gravel layers, pebble layers, and other complex geological conditions
National patent technology taper clutch offers large transmission torque, easy operation, and maintenance-free performance
Water well drilling and general survey exploration
Geophysical exploration and building foundation investigation
Road construction exploration and blasting hole drilling
Compatible with alloy, diamond, and composite sheet drills based on geological conditions
Capable of drilling through sandy clay and rock layers of grade 2-9
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:
Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
|
