| Categories | Line Array Speaker |
|---|---|
| Model Number: | TMS1.0 |
| Frequency Response:: | 65-18KHZ(-3dB) |
| Sensitivity (1W/1M):: | LF:99dB HF:110dB |
| Weight:: | 21.5KG |
| Grid:: | Black porous iron mesh and sound-permeable fabric |
| Place of Origin: | Made in China |
| Coverage Angle (H×V):: | 80X10° |
| Input method：: | NL4×2，+1 -1LF +2-2HF |
| Rated Imp:: | 8Ω |
| Angle: | Adjustable from 0° to 8° |
| Brand Name: | PDTWINKLE |
| Unit Type:: | 1X10"LF LF1X75"(75mm)LF |
| Power (AES):: | LF:350W HF"100W |
| Max SPL:: | LF:132dB HF:136dB |
| Surface treatment:: | Black water-based paint or polyurea paint |
| H × W × D: | 278x576 x412mm |
| Cabinet Material:: | 15mm multi-layer plywood |
| Company Info. |
| Guangzhou Yinlai Audio Equipment Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

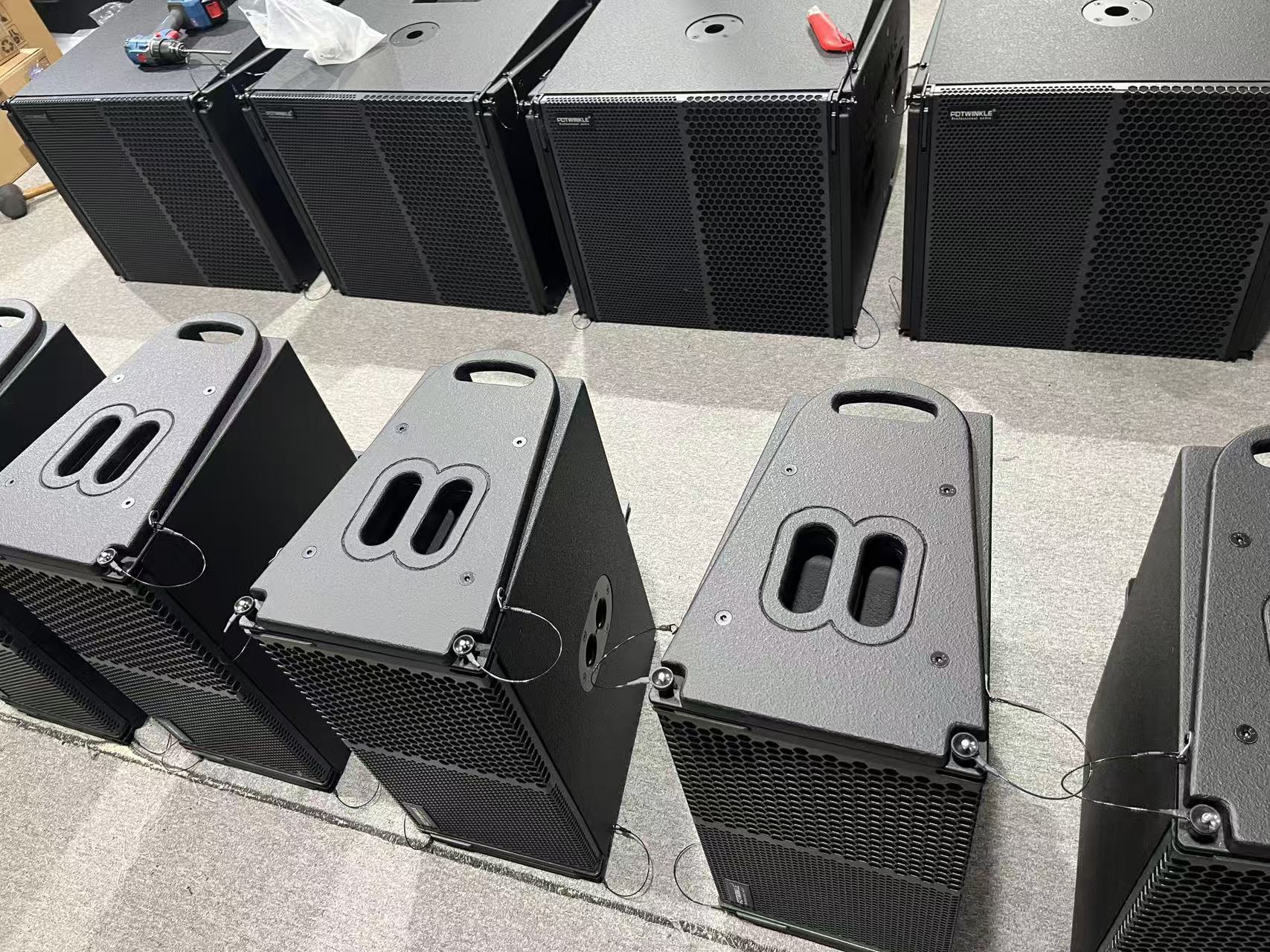

The TMS1.0 single 10-inch line array loudspeaker is a compact touring line array system under the PDTWINKLE brand of Yinlai Audio. As one of PDTWINKLE's flagship models, this PA speaker system is specifically designed for mobile live events and has earned continuous positive feedback since its launch in 2019.
Featuring compact dimensions, high sound pressure level (SPL), and lightweight construction, the TSM1.0 significantly improves operational convenience for rental and touring companies. The system enables easier installation and dismantling while helping to reduce storage and logistics costs for event organiz
|
