64x64 Dots Pixels 16 Bit Processing Indoor Rental Led Display For Stage Application

Categories Indoor Rental LED Display
Brand Name: Bako Vision
Model Number: BIR-III
Certification: CCC.CE.ETL.RoHS
Place of Origin: China
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000m²/month
Delivery Time: 20-25 days
Packaging Details: Flight Case
Module Dimensions (Wxh) (mm): 250X250mm
Pixel Configuration: SMD2121
Panel Dimensions: 500X500/500X1000
Panel Material: Die-Casting Aluminum
Lamp: Nation Star/ Kinglight
Control System: Nova, Linsen
Life Span: 100,000 Hrs
IC Card: Mbi 5124
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

64x64 Dots Pixels 16 Bit Processing Indoor Rental Led Display For Stage Application


64x64 Dots Pixels 16 Bit Processing Indoor Rental Led Display For Stage Application

Indoor Rental Led Display Advantage:

1.Goods be examined before delivery,Professional 72 hours QC texting.

2.Variety of customized products to satisfy different requests.

3.Highest cost-effective price.

4.With pure golden wire connection in LED.

5.The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.

6.All inquiry will be answered within 24 hours by a well-trained and experienced staffs.

7.Top Quality & Reasonable Price & Responsible After Service

8. Protection of your sales area, ideas of design and all your private information.



Indoor Rental Led Display Products features


1.Color Uniformity

We've developed a process that accurately maintains uniformity from the factory to the field, and releases you from years of uncertainty.

2. Two size you can choose:500*500mm or 500*1000mm,it is easy to calculate the area

of led screen


3. Power supplies and receiving cards can be replaced separately and quickly, even in 1 second.


4.The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.


5. Neat appearance, light weight. small size and safe 5V low voltage power supply system all make the module more attractive.



Parameter (you can click on this and then you will get the catalogue 5-Indoor rental led display.pdf)


BIR-III-3.91BIR-III-4.81
Physical Pitch3.91mm4.81mm
Pixel ConfigurationSMD2121SMD2121
Pixel Density65,536 pixels/m²43,264 pixels/m²

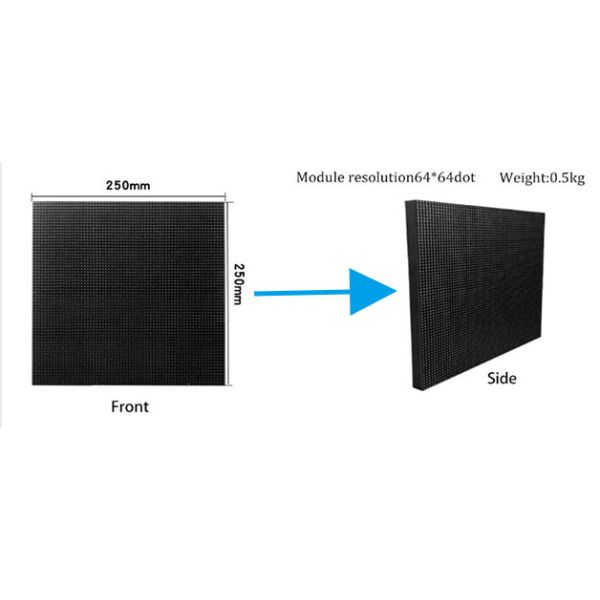

Module Dimensions(W*H)(mm)250*250250*250
Panel Dimensions(mm)500*500*80/500*1000*80500*500*80/500*1000*80
NO. of Modules Per Panel (W*H)2*2/2*42*2/2*4
Panel MaterialDie-Casting AluminumDie-Casting Aluminum
Colors281Trillion281Trillion
Processing16 Bit16 Bit
Physical Resolution of Module(W*H)(mm)64*6452*52
Physical Resolution of Panel(W*H)(mm)128*128 / 128*256104*104 / 104*208
Single Cabinet Weight8/14kg/panel8/14kg/panel
Average Power Consumption64/128W/panel64/128W/panel
Max Power Consumption192/384W/panel192/384W/panel
Brightness1200 nits1200 nits
Viewing AngleH:160°/ V:140°H:160°/ V:140°
Operating Temp/ Humidity-10ºC-60ºC/10%-60%-10ºC-60ºC/10%-60%
Storage Temp/ Humidity-30ºC-60ºC/10%-60%-30ºC-60ºC/10%-60%
Expected Lifetime100,000 Hrs100,000 Hrs
ServicingFront/RearFront/Rear
IP Rating(Front/Rear)IP 40/IP21IP 40/IP21
Max Stacking and Hanging20/1020/10
Refresh Rate>1,920 Hz>1,920 Hz

Pruduct details

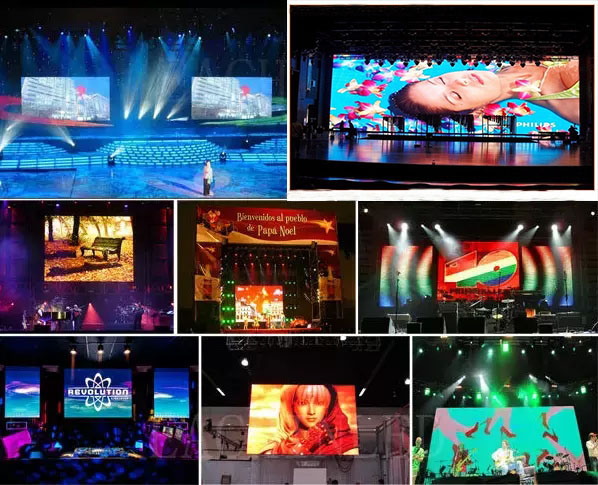

Application Case:

Widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.


Our service:

1. Your inquiry about our products or price will be replied in 24hrs.

2. OEM&ODM, any of your customized requirement we can help to design and put into product.

3. Distributorship are offered for your unique design and some our current models.

4. Protection of your sales area, ideas of design and all your private information.

5. Top quality + Reasonable price + Responsible After Service=Successful & Win-Win.

6. SENY can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.


FAQ:

Q1:Can you tell me why I should choose your company ?
A1:Concentration makes professional .Professional achieves successful .
Our Bako vision have 14 years professional led technical experience .we have our own factory, we are largely expanding our international market.From 2005 to 2019, we only do LED .Now and In the future, we still do LED.We can cooperate from trail order to establish trust step by step .


Q2:What's the warranty of your LED Display ?
A2: 2-5 years warranty .and 100,000hrs life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.


Q3: What's your payment term? How long is your delivery time ?
A3: We accept T/T ,L/C,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.
