Electric Portable Mud Pump , Low Pressure Mud Slurry Pump for Grouting

Categories Drilling Mud Pump
Brand Name: JINZHOU SHITAN
Model Number: BW150
Certification: ISO
Place of Origin: China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 2000 sets per year
Delivery Time: 7-12 days
Packaging Details: Standard Export Package
Structure: Piston Pump
Usage: Grouting
Application: coal mine drilling and grouting
Fuel: Electricity
Pressure: Low Pressure
Maximum Flow: 150L/min
Maximum Pressure: 7Mpa
Theory: Reciprocating Pump
Standard or Nonstandard: Standard
Power: Electric
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Electric Portable Mud Pump , Low Pressure Mud Slurry Pump for Grouting

Electric Portable Mud Pump - BW150 Model
Low Pressure Mud Slurry Pump for Grouting Applications
Key Features
  • Horizontal, triplex, reciprocating piston pump design
  • Four adjustable gear shifts for precise flow control
  • Suitable for grouting cement slurry and mud jacking
  • Electric powered for clean operation
  • Maximum flow rate of 150L/min at 7Mpa pressure
  • Widely used in construction, mining, and engineering projects
Technical Specifications
ParameterValue
Model NumberBW150
StructurePiston Pump
Power SourceElectric (7.5Kw)
Maximum Flow150L/min
Maximum Pressure7Mpa
Stroke70 mm
Cylinder Diameter70 mm
Dimensions1840 × 795 × 995 mm
Weight630 kg
Performance Parameters
Pump Speed: 1500 r/min
Output Volume: 150; 90; 58; 38; 125; 72; 47; 32 l.p.m
Discharge Pressure: 1.8; 3.2; 4.8; 7.0; 2.3; 4.0; 6.0; 7.0 Mpa
Volumetric Efficiency: 85%
Suction Pipe Diameter: 50 mm
Discharge Pipe Diameter: 32 mm
Drilling Depth Capacity: Diamond core drilling <1500 m
Applications
  • Coal mine drilling and grouting operations
  • Railway and hydraulic engineering projects
  • Metallurgical and building construction
  • Geological and engineering exploration

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180,ST-200,ST-260,ST-300,ST-350,ST-400,ST450,ST-450,ST-500, ST-600,ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B,GK180, GK200, GY150, GY200 and 30 impact drill rig,ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

Good quality, professional after-sales service, welcome to order

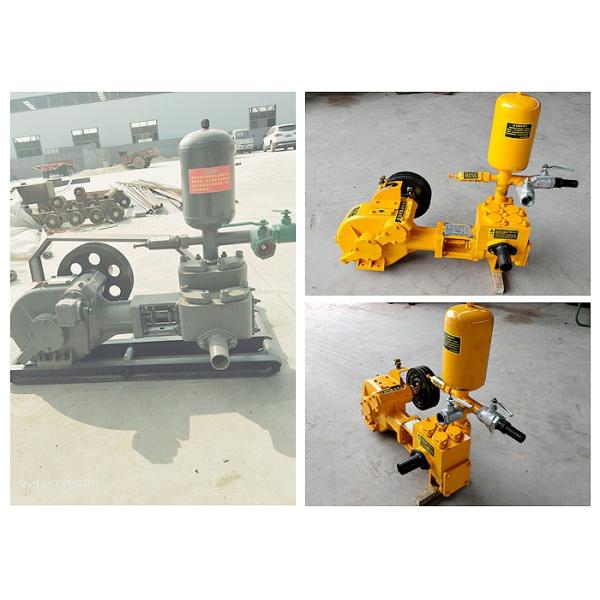

BW150 Electric Portable Mud Pump in operation
