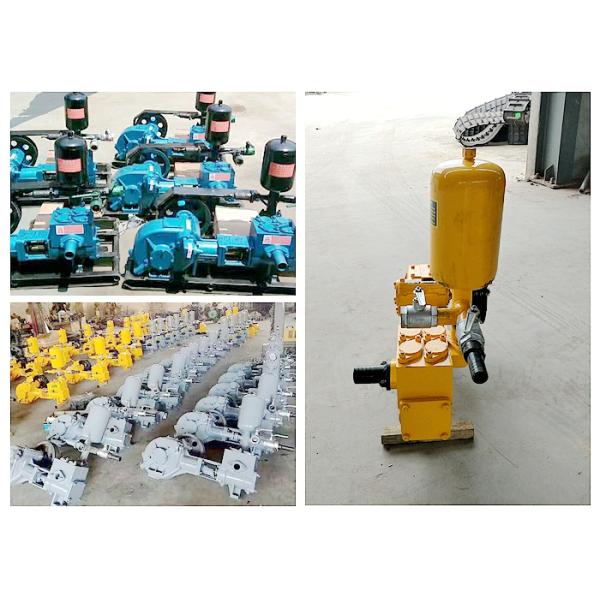

Triplex Small Drilling Mud Pump BW160 for Sale
Product Application:
1. Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.
Product Parameter:
| Type | Horizontal tri-cylinder reciprocating single-acting pistion pump |
| Piston stroke : | 70mm |
| Inside diameter cylinder | 70mm |
| Rated pressure(Mpa) | 2.5 4 6.5 10 |
| Reciprocating piston number | 200 132 83 55 |
| Rated Flow | 160 107 67 44 L/min |
| Volumetric effciency | 95% |
| Overall efficiency | 75% |
| Power | 11Kw |
| Triangle belt type specitications ,number | B2050*4 |
| Suction tube diameter | 51mm |
| Discharge pipe diameter | 32mm |

|
