95-130mm Track Wagon Drill Rock Drill

Categories Drilling Rig Machine
Brand Name: SINOWAY
Model Number: SWDHD726
Certification: ISO9001
Place of Origin: China
MOQ: 1 unit
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50 units per month
Delivery Time: 30 days
Packaging Details: Nude
Rock rigidity: F=6-20
Diameter of hole: 95-130 mm
Drilling depth: 25m
Gradeability: 25°
Air consumption: 7-12 m3/min
Warranty: One year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

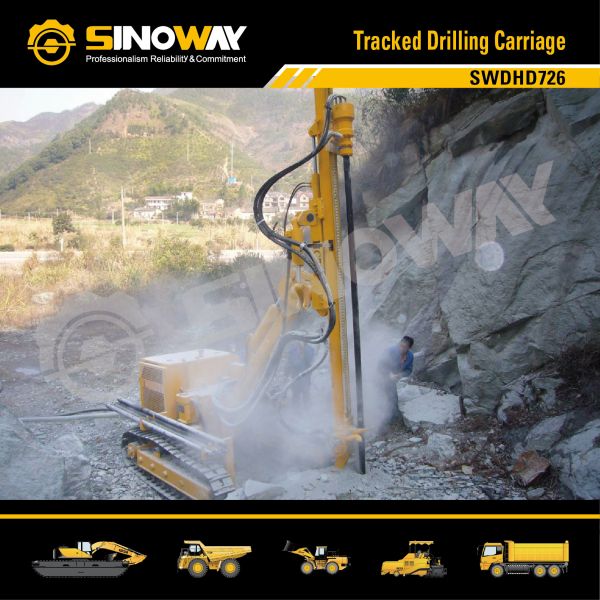

95-130mm Track Wagon Drill Rock Drill

Sinoway Industrial (Shanghai) Co., Ltd is a top package equipment solution provider in China especially for vehicle, construction machinery and mining equipment. As a professional procurement and supply chain service provider, we are always committed to offer our respectable customer high quality products with reliable performance, competitive price and sincere services ensuring every engineering project to be run smoothly and on schedule. With over 20 years' experience in the field of engineering industry and accompanying to fulfill strictly ISO 9001:2008 standard, Sinoway is ready to provide products and services to our clients with professionalism, reliability and commitment. As a professional procurement and supply chain service provider for construction machinery, vehicles and mining equipment, we had established and have been consistently keeping good business relationship with many world famous general contractors like Vinci Construction, China State Construction Engineering Corporation, Enka Group and, as well as many local civil engineering & building companies throughout the world. The bigger projects in which we participated as package equipment provider previously are including the airport project in Algeria, the power plant project in Indonesia, the dredging project in Nigeria, the national No.1 highway project in Congo, the biggest landfill plant project in Kuwait, the rural and municipal road project in Libya and, still we are achieving to offer our equipment and service to more and more projects at present.
Main Features
Sinoway wagon drill is your right choice for your blasting applications on quarry or mining sites. Currently, Sinoway is offering wagon drill which is driven through air compressor, the wagon drills are with down the hole hammers. The best matching of air compressor and wagon drill will offer most cost effective drilling operation, as well as great efficiency for you blasting works.
Compressors for Sinoway wagon drill are mostly with GHH air end from Germany to ensure the service life, high quality hydraulics are introduce also in the wagon drill itself. Choose the right wagon drill for your project now, and we are not going to let you down
Diesel engine, Energy saving, lower noise, less operation cost. Wide range of usage, easy for maintenance.Major component such as motor, control valve and filter from Germany and Japan.Large scope amplitude modulation capacity.
Engine
Compressor
ModelCummins EQ6BTA
TypeSix-cylinder, water cooled, turbocharged, mechanical injection
Rated power118kw
Rated speed2200rpm
Main Technical Specification
Tracked drilling Carriage
Rock rigidityf=6 - 20
Diameter of drill hole95 - 130mm
Depth of drill hole25m
Travelling speed3km/h
Gradeability25°
Rotation speed0 - 70rpm
Working pressure0.7 - 1.6MPa
Air consumption7 - 12m³/min.
Compressor
TypeScrew rotating one stage compression oil cooled
Displacement10.2m³/min.
Pressure1.3MPa
Lubricating modeForced lubricating according to lubricating compression
Drive modeCoupler direct
Volume of lubricating oil105L
Chassis
Compressor
Tyre size6.5-16
Tyre pressure0.6MPa
Tread1560mm
Dimensions
Tracked drilling Carriage
Overall length4250mm
Overall width1980mm
Overall height2260mm
Compressor
Overall length3980mm
Overall width1980mm
Overall height2320mm
Connector sizeR1.1/2"x1, R1"x2
Max. working altitude3000m
Weight
Tracked drilling Carriage4500kg
Compressor4200kg
Main Features
Tracked drilling Carriage
Self-powered high efficiency, energy saving, lower noise, less operation cost, wide range of usage, easy for maintenance, major components such as motor / control valve made in Germany and Japan, large scope amplitude modulation capacity.
Compressor
Advanced microprocessor monitoring all changes for compressed air demand, lowering air consumption, motor / mounted roller / ball bearing made in Germany; advanced separator and filter insuring residual oil content less than 3ppm, aluminium radiator easy for cleaning, anti-high temperature pipe and connector prevent oil leakage.
