16-63mm Plastic Machinery PPR Pipe Manufacturing Machine
Zhangjiagang Langbo Machinery provides a complete PVC/UPVC pipe
production line capable of manufacturing pipes with diameters
ranging from 16mm to 800mm. This versatile system accommodates
various pipe diameters and wall thicknesses for applications
including electrical conduits, agricultural plumbing, and
construction plumbing.
Applications
The UPVC pipes produced by this line are extensively used in
industrial and daily applications including electrical conduits,
water supply pipes, sewage pipes, home decoration, chemical
transportation, and gas distribution lines. These PVC pipes offer
numerous advantages: high strength and rigidity, structural
integrity, excellent chemical resistance, durability, thermal
stability, non-toxic safety, low maintenance requirements, and
cost-effectiveness.

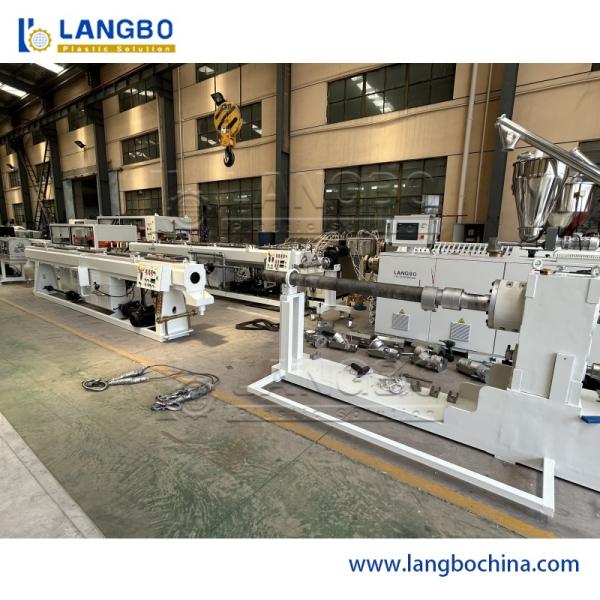

Production Process
PVC powder + additives → Mixing → Material feeder → Twin-screw
extruder → Mould and calibrator → Vacuum and cooling tank →
Spraying cooling machine → Haul-off machine → Cutting machine →
Discharge rack or pipe belling machine.
Product Components
Mixer
Features a specially designed structure that reduces raw material
self-friction, improving energy utilization efficiency. Equipped
with a vacuum suction loading system for low-noise operation and
dust-free working environment.

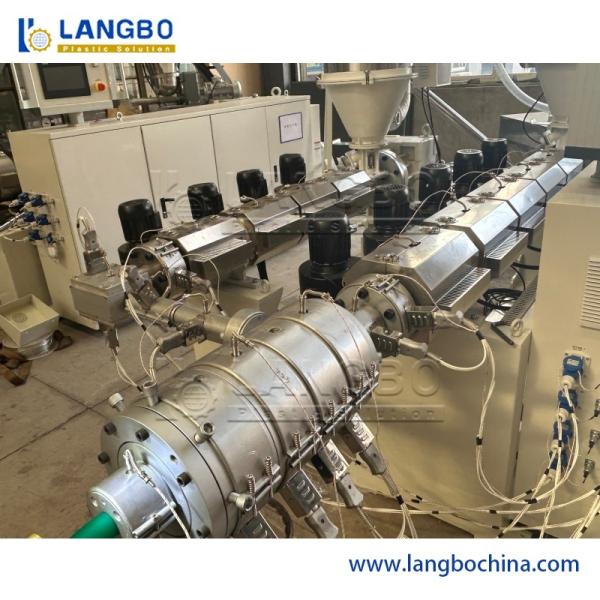

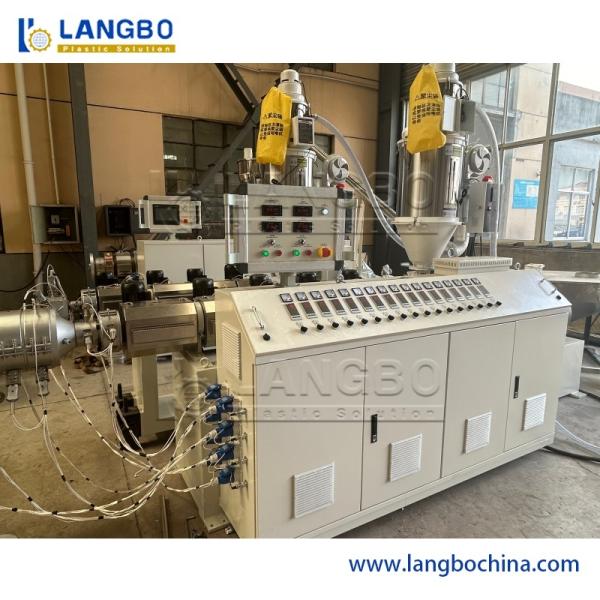

Twin-Screw Extruder
Crafted with top-brand components to guarantee stable production,
high efficiency, and long-lasting durability. The conical
twin-screw design is tailored to raw material characteristics,
ensuring homogeneous mixing, superior plastification, and efficient
material conveying.

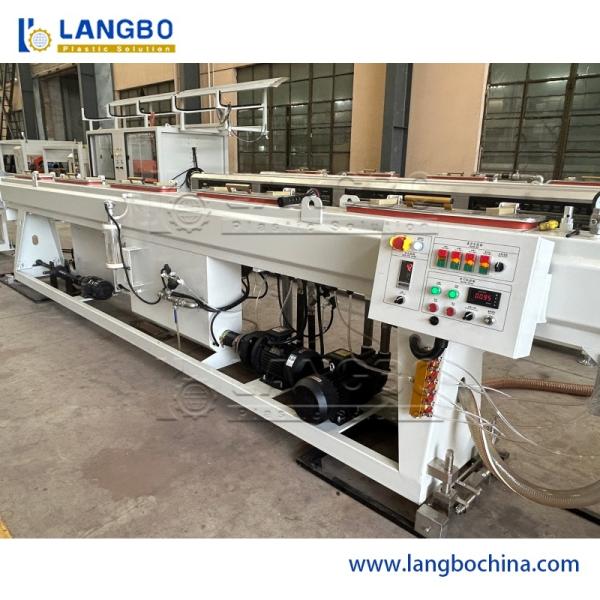

Vacuum Calibration & Cooling
The vacuum calibration tank features a two-chamber structure
integrating vacuum calibration and cooling functions. Both vacuum
tank and spraying cooling tank are constructed from 304 stainless
steel. High-performance vacuum system ensures precise pipe sizing.
Haul-Off Unit
Equipped with three crawler tracks for stable and steady movement
of produced pipes. Adjustable general control allows customization
to meet specific production requirements with flexible hauling
modes.
Cutting Unit
Features high-precision encoder for accurate and stable cutting
lengths. PLC-controlled system supports manual operation for
cutting according to specific application needs.
Technical Features
- Effortlessly grinds various hard and soft PVC materials into powder
for versatile processing capabilities
- Equipped with dust collector to minimize dust pollution and
maintain clean working environment
- Main fan-assisted discharging design reduces operator labor
intensity and streamlines workflow
- Openable host door cover facilitates easy maintenance and cutter
replacement
- Water-air dual cooling system prevents overheating of bearings and
key components for stable operation
- Adjustable powder mesh size (15-100 mesh) allows customization for
different processing needs
- Hassle-free installation and maintenance with easy-access door
cleaning
- Uses well-known brand accessories including motors for long-term
continuous operation
- Wide range of optional accessories with professional solutions
tailored to customer budgets and requirements
Delivery Information
| Lead Time | 30 days after order confirmation |
| Warranty | 12 months |
| Payment Terms | T/T with 30% deposit in advance and 70% balance before delivery |
| Packaging | Standard export wooden cases |
Our Service
- One-year warranty covering the entire machine
- 24-hour technical support availability
- Engineer on-site installation and commissioning services overseas
- Post-warranty machine maintenance guidance and favorable spare
parts pricing
- Training services to help operators master machine operation
