48 Core Optical Fiber Cable , Buried Fiber Optic Cable High Strength

Provide Samples Outdoor ADSS 48 Core Fiber Optic Cable 1KM Price

Description:

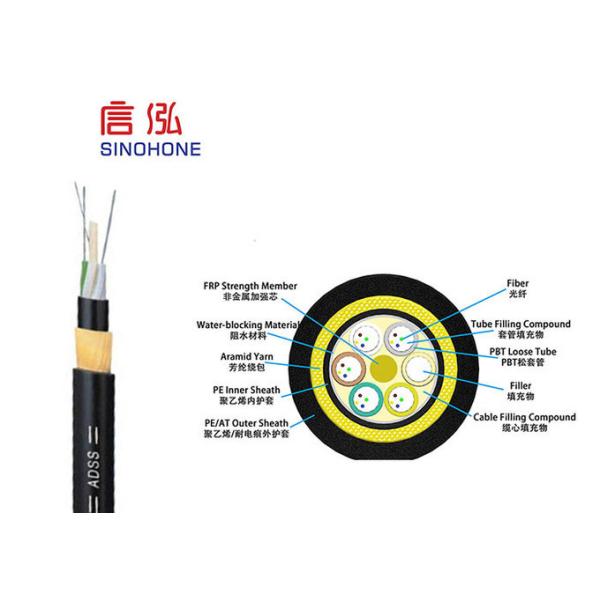

ADSS (All-dielectric self-supporting) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. ADSS is ideal for installation in distribution as well as transmission environments, even whtn live-line intallations are required.

It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.

Characteristics:

• Erected without powering off
• AT sheath, excellent electric tracking resistance
• Light weight, small cable diameter, reducing the influence of wind and ice on the tower and support load, largest span 200 meters
• Excellent tensile properties and temperature characteristics
• Life expectancy more than 30 years

Capacity:

• Aramid Yarn has excellent tensile performance
• Glass yarn also avaible other than aramid, offer better protection against mouse bite
• Fast delivery 200km
• Regular production time around 10 days

Technical Details:

Standards:

YD/T901-2009
IEC60794-1

Temperature:

Operating temperature: -40°C~+70°C
