Energy Saving Stud And Track Roll Forming Machine Low Power Consumption

Categories Stud And Track Roll Forming Machine
Raw Material: Galvalume, Galvanized
Product Name: Metal Decorative Materials Omega Purlin Stud and Track Roll Forming Machine
Weight: 4 tons
Delivery: 30 Working Days
Working Speed: 30 m/min - 50 m/min
Material Thickness: 0.3 mm - 0.8 mm
Brand Name: CANGZHOU WILLING
Model Number: Omega
Certification: ISO CE
Place of Origin: CHINA MAINLAND
MOQ: 1 Set
Price: Negotiable
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 20 Sets Per Month
Delivery Time: 30 Working Days
Packaging Details: 20' FLC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Energy Saving Stud And Track Roll Forming Machine Low Power Consumption

Metal Decorative Materials Omega Purlin Stud and Track Roll Forming Machine

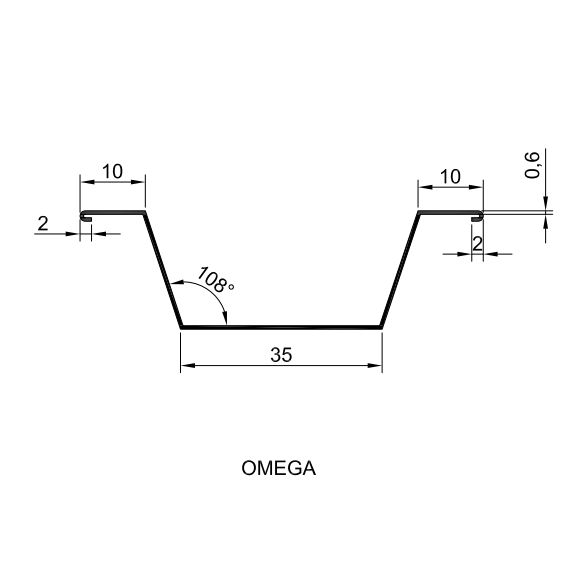

Profile

Specification


No.ItemDescription
1CoilGalvalume, Galvanized
2Raw Material Thickness20-30 GA
3Working Speed30-50 m/min
4Roller Station14 Raws
5

Dimension (L*W*H)

6000 mm*1500 mm*1500 mm
6Machine Weight4500 KG
7

Electrical Control System

PLC (can be customized)

8

Drive Motor Power

7.5 KW
9

Hydraulic Station Power

5 KW
10

Power Supply

240V, 60HZ, 3 PHASES(can be customized)

11

Cutting Accuracy

±2 mm

12

Driving Mode

Single Chain 1 inch

13

Material of Shaft

60 mm 45#steel forged

14Material of Roller

45# Steel Finish Machining, Plated Hard


Guarantee


1. Guaranteed against malfunctions due to manufacturing defects for1 years after date of purchase except Electrical parts.

2. Repairs will not be performed even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation


Payment terms


40% in advance as down payment

60% is paid before the shipment is processed


Delivery


FOB: Tianjin Xingang Port

The Delivery Time: 30 days after the down payment is received.
