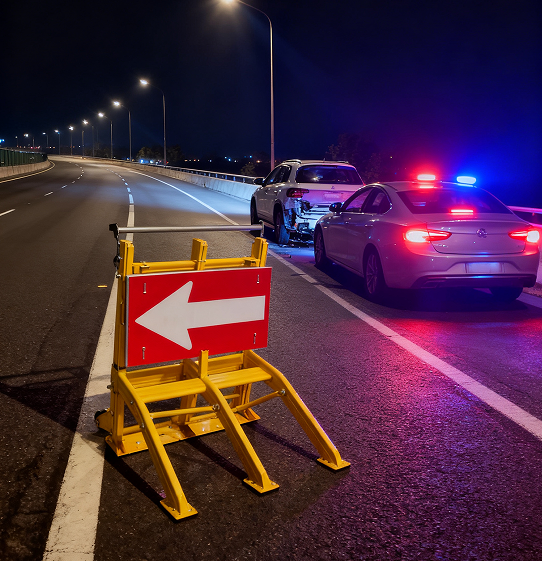

ISO9001 25KG Modular Vehicle Barrier
Mobile Vehicle Barrier Barricades provide anti-ram vehicle
protection and anti-terror security against vehicle attacks. This
mobile vehicle barrier is specifically engineered for low-speed
environments including municipal roads and construction sites,
combining high-visibility warning with physical braking
capabilities.
Core Features
| Feature | Description |
|---|
| Physical Braking | Lever lifts front wheel + friction braking for controlled stopping |
| Lightweight & Flexible | Only 25kg with universal wheels, one-person deployment |
| Foldable Design | Folds for storage, saving transport and warehouse space |
| High-visibility Warning | Striking engineering yellow, optional LED light guide for night
visibility |
| Durable Finish | Aluminum + outdoor-grade electrostatic coating, rust and weather
resistant |
| Dual Buffer System | Bottom shock-absorption modules effectively absorb impact energy |
Technical Specifications
| Item | Specification |
|---|
| Net Weight | 25 kg |
| Dimensions | 320 × 1070 × 860 mm |
| Main Material | High-strength aluminum, wear-resistant rubber |
| Surface Finish | Outdoor-grade electrostatic spraying |
| Product Color | Engineering Yellow / Orange |
| Structure | Foldable design + mobile wheels |
Application Scenarios
- Municipal road construction isolation
- Temporary work zone warning protection
- Traffic flow guidance
- Temporary parking lot control
Product Mobility
The product is equipped with two wheels, designed for ease of
handling, assembly and setup.

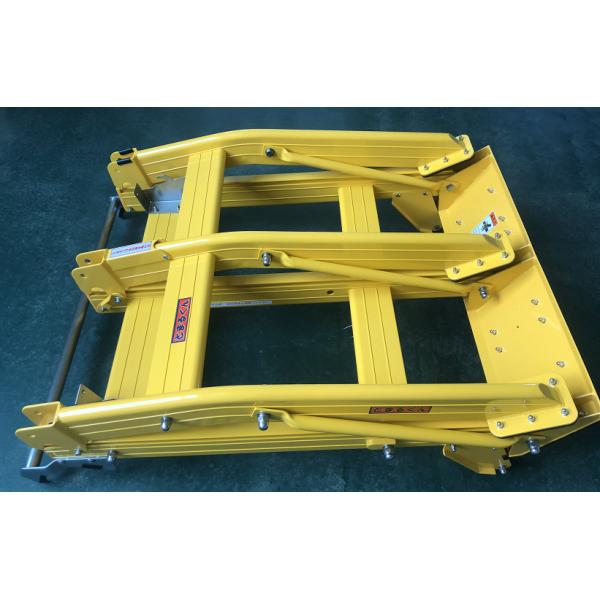

Product Foldability
The product design structure is flexible and ingenious, convenient
for transportation and storage.
Layout Example
Typically, set separation distance at 3 meters for urban roads and
5 meters for high-speed roads. Adjust according to actual road

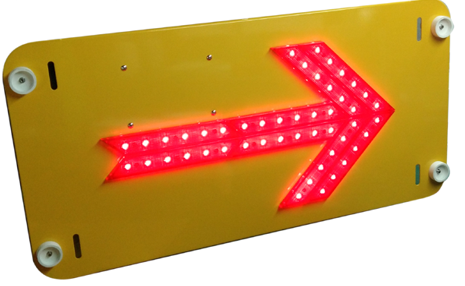

conditions. Warning effectiveness is enhanced when used with our
arrow plate.
RMHs Small Parking Device vs. Traditional Facilities
| Comparison Dimension | Traditional Facilities (Cones/Water Barriers/Steel Barriers) | RMHs Small Parking Device |
|---|
| Safety Level | Isolation/warning only, incapable of braking | Active interception + physical braking |
| Braking Capability | Scatters upon impact, no deceleration | Lever wheel lift + friction braking for controlled stopping |
| Deployment Efficiency | Lightweight but requires individual carrying, poor wind resistance | One-person push into place, bottom wheels, ready to use |
| Portability | Usually requires multiple people or vehicle transport | Only 25kg with wheels, easy one-person operation |
| Transport & Storage | Bulky, non-foldable, low transport efficiency | Foldable design, space-saving, reduces logistics costs |
| Durability | Plastic prone to aging, iron prone to rust | Aluminum + outdoor coating, rust-proof and weather-resistant, long
service life |
| Applicable Environment | Mainly daytime or general roads | All-time applicable, can be equipped with LED light guide for night
warning |
| Buffer Protection | No buffer design, prone to secondary damage after impact | Dual buffer shock-absorption modules, effectively absorb impact
energy |
| Maintenance Cost | Easily damaged, requires frequent replacement | Durable material, simple maintenance, long service life |
Three-Step Braking Process
- Lift - Upon impact, the device lifts the front wheel, redirecting the
force to the ground
- Friction - The bottom rubber pad grips the ground with high friction,
slowing the vehicle down
- Buffer - Built-in shock-absorption modules absorb remaining impact energy
for a smooth stop
Frequently Asked Questions
Q1: Is the quality of this small parking device guaranteed?
Yes, it is guaranteed. The product is manufactured in strict
accordance with the ISO9001 Quality Management System, with rigorous controls from raw material procurement to factory
inspection. As a leading traffic control barrier product in China,
the quality is reliable and trustworthy.
Q2: Is the 25kg weight sturdy enough? Will it break easily upon
impact?
It is absolutely sufficient. The 25kg weight is a precisely
calculated optimal weight ratio, ensuring both the lightweight portability for one-person handling
and the structural strength required for interception. The modular
design allows for more reasonable force distribution, making it
less prone to damage after impact.
Q3: What does modular design mean? What are the benefits?
Modular design means the product has a scientific structure with
independent component functions. The benefits are:
- Easy Maintenance - Damaged parts can be replaced individually without scrapping the
entire unit
- Flexible Combination - Different accessories (such as LED light guides) can be added
according to site requirements
- Stable Quality - Modular production allows for more precise quality control
Q4: What are the advantages compared to other products on the
market?
As a leading traffic control barrier product in China, our
advantages lie in:
- ISO9001 System Guarantee - Full-process quality control for stable quality
- 25kg Golden Weight - The perfect balance between lightness and sturdiness
- Modular Design - Low maintenance costs and flexible use
- Source Factory - Produced in specialized factories with controllable quality and
reasonable prices
Q5: Is the production factory reliable?
Very reliable. We have a professional 25kg modular vehicle barrier production base, strictly implementing ISO9001 standards with thorough checks from
raw materials to finished products. Choosing a source factory
ensures both quality and after-sales support.
Q6: Is the product durable? How long does it last?
Very durable. Made of high-strength aluminum with an outdoor-grade
coating process, it is rust-proof and weather-resistant. Under the
control of the ISO9001 quality system, each component undergoes
durability testing, ensuring many years of normal use.
Q7: Is it suitable for export?
Very suitable. The product meets international quality standards,
and the ISO9001 certification is widely recognized in the
international market. The modular design also facilitates
transportation and customs clearance, making it an ideal choice for
export trade.
