| Categories | FM200 Fire Suppression System |
|---|---|
| Brand Name: | Xingjin / OEM |
| Model Number: | QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2, QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| Certification: | CAL,CMA,CNAS,ILAC-MRA,CCC |
| Place of Origin: | China |
| MOQ: | 2 set system |
| Price: | negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30000 set system |
| Delivery Time: | 15-20 working days after payment or receipt of L/C |
| Packaging Details: | Plywood outer box with bubble bag or paper |
| Cylinder Volume: | 40L, 70L, 90L, 100L, 120L, 150L, 180L |
| Capacity of Gas: | 38kg, 66.5kg, 85.5kg, 95kg, 114kg, 142.5kg, 171kg |
| Pattern of extinguishing: | Enclosed flooding |
| Agent: | Hfc-227ea (FM200) |
| Working pressure: | 4.2MPa / 5.6MPa |
| Color: | Red |
| Discharge time: | ≤10s |
| Power: | DC24V/1.6A |
| Starting Mode: | Automatic, Electrical manual, Mechanical emergency manual |
| Product name: | fm200 fire suppression system |
| Company Info. |
| Guangzhou Xingjin Fire Equipment Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

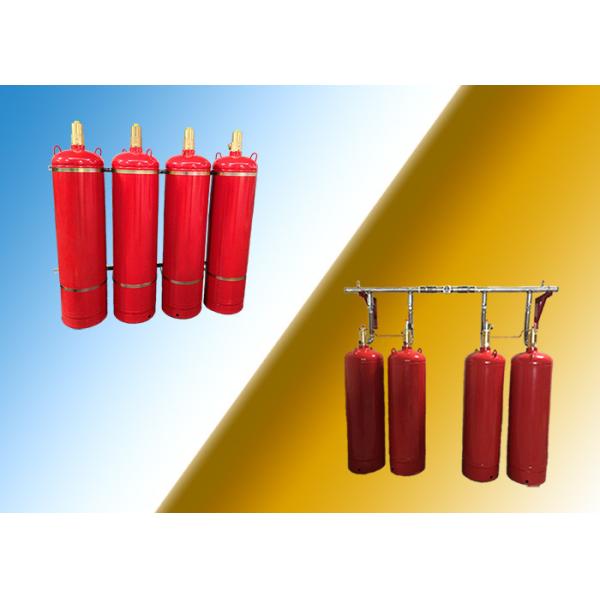

The 90L 5.6MPa pipe network automatic fire suppression system with FM200 is a clean-agent solution engineered for reliable protection of enclosed spaces. HFC-227ea (FM200) is widely deployed in China and around the world, and its primary advantage is compliance with global environmental protection requirements — it poses no threat to the ozone layer. The agent is clean, colorless, and odorless, and the system is easy to install, making it the preferred substitute for halon 1301.
The FM200 gas fire suppression system performs more efficiently when equipped with electric elements. It requires only a small storage room located outside but adjacent to the protected zone, helping to conserve space. The system also features a fast discharge time of less than 10 seconds.
| No. | Specifications | 4.2MPa System | 5.6MPa System |
|---|---|---|---|
| 1 | Capacity | 40L, 70L, 100L, 120L, 150L, 180L | 70L, 90L, 120L |
| 2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2, QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 |
| 3 | Filling pressure | 4.2MPa | 5.6MPa |
| 4 | Max filling rate | 0.95kg/L | 1.08kg/L |
| 5 | Discharge time | ≤10s | |
| 6 | Power | DC24V / 1.6A | |
| 7 | Nitrogen driving device | 6.0 ± 1.0MPa | |
| 8 | Storage surroundings | Temperature: -10 to 50℃; Relative humidity: ≤97% | |
| 9 | Proportion | ≤800m² | |
| 10 | Volume | ≤3600m³ | |
The pipe network type FM200 fire suppression system consists of three parts: the pipe network part, the fire fighting equipment part, and the electrical elements part.
The electrical elements form a set of detecting devices and always play a subsidiary role in each system. This part includes several control panels, manual buttons, discharge indicator lights, alarm bells, sounder-with-light units, smoke detectors, and heat detectors.
The main part of the system is the fire fighting equipment, formed by the following components:
Guangzhou Xingjin Fire Equipment Co., Ltd. specializes in fire suppression systems. Our headquarters is located in Panyu District, Guangzhou — the southern gateway of mainland China. The company maintains a complete and scientific quality management system, and our sincerity, strong capabilities, and reliable quality are recognized throughout the fire protection industry. All Xingjin staff welcome visitors from all regions and industries for visits, guidance, and business cooperation.
We specialize in all types of heptafluoropropane fire suppression systems and aerosol fire suppression systems. Our experienced research and development team brings more than 20 years of work experience in the national fire suppression field.
