| Brand Name: | Bako Vision |
| Model Number: | P4.81 |
| Certification: | RoSH,EMC,SASO,CE,Form-E,CO,Form-A |
| Place of Origin: | China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 6000sqm/month |
| Delivery Time: | 7 DAYS |
| Packaging Details: | Flight case/wooden case |
| Pixel Pitch: | 4.81mm |
| Pixel Density: | 43264 pixels/m2 |
| Brightness: | >6500nits |
| Driving Method: | 1/13 |
| Cabinet Dimension: | 500x500mm/500x1000mm |
| Company Info. |
| LED Vision Technology Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

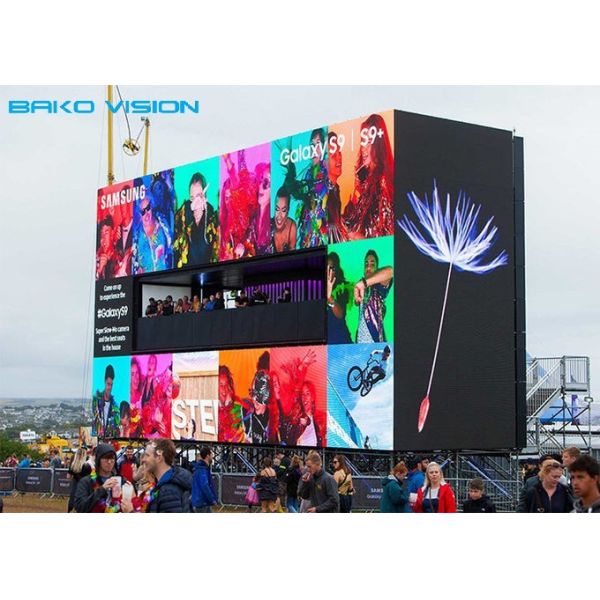

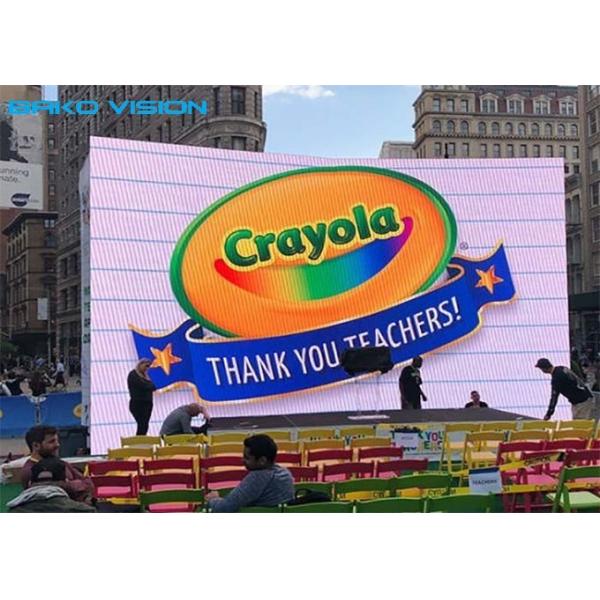

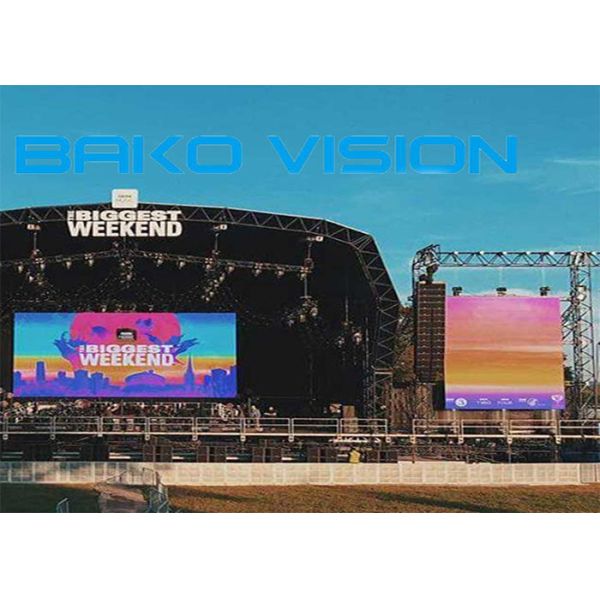

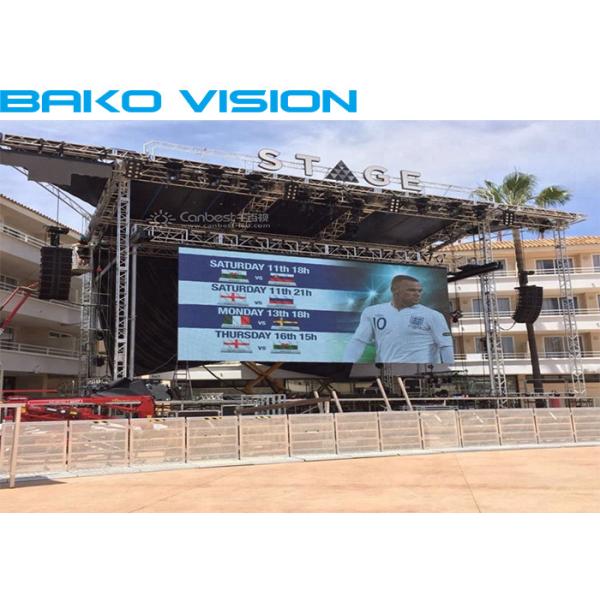

P4.81 High Quality Outdoor LED Video Wall Screen High Contrast Ratio LED Display Stage Event Show Background
Lightweight and Seamless
Product Feature
1 Integrated design: power and receiver card integrated in the
control panel, no signal cable between the module and the power
line, greatly improving the stability and reliability;
2 Stable circuit control technology, simple operation, easy
maintenance;
3 Unique die-cast aluminum box structure, stable, durable,
lightweight;
4 very "light, thin, dense" feature, in order to provide a greater
realization of creative space;
5 accurate, fast and flexible installation location, can
effectively respond to different application areas;
6 Deep gray scale processing technology, high-quality screen
refresh, and create fantastic stage effects;
7 Easy maintenance: with power and signal work status self-check
function, real-time display each product's power and signal work
status, when a product does not display screen, to help you quickly
determine the problem quickly and make the appropriate repair
measures;
Specification
| Model | BOR-II-4.8 |
| Pixel Pitch | 4.81mm |
| Pixel Density | 43264 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 500*500mm/500*1000mm |
| Cabinet Resolution | 104*104px/104*208px |
| Cabinet Weight | 8kg(13kg) |
| Cabinet Material | die casting aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/13 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 320w/m2 |
| Input Voltage | AC 110/220±10%/50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥50000hrs |
| Pixel Failure | <0.0002 |





FAQ
1) Reply your inquiry in 24 working hours.
2) Experienced staffs answer all your query in fluent
English,Spanish,French,German etc.
3) Customized design is available,OEM & ODM are welcomed.
4) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5) Special discount and protection of sales area provided to our distributor.
6) Warmly welcome your visit in our company if available.
7) Guidance service: We can guide on line if customers have questions
about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer's country for on-site guidance.
8) Warranty period: 2 years after shipment.
|
