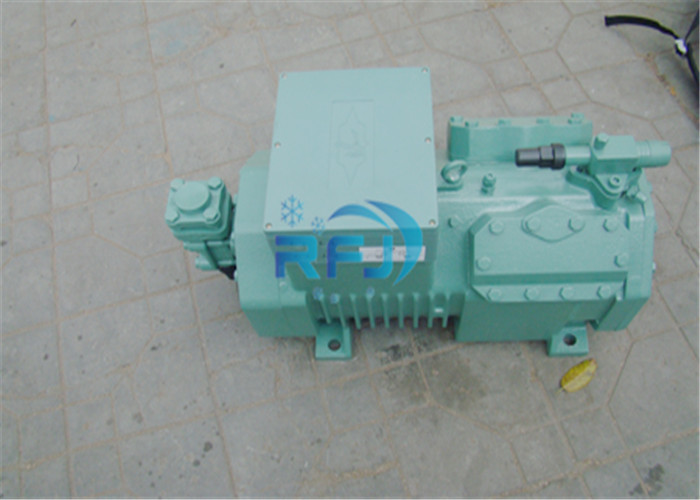

2HP 2FES-2Y-40S Semi Hermetic Compressor For Cold Room

Categories	Semi Hermetic Refrigeration Compressor
Cylinder:	2
Application:	Refrigeration Parts
Payment Terms:	T/T,Western Union,MoneyGram
Certification:	ROHS, CE
Place of Origin:	China
MOQ:	1 piece
Price:	US$712-1000/PC
Supply Ability:	10000Pieces/Year
Delivery Time:	5-7 Days
Packaging Details:	Standard Wooden Package
Refrigerant:	R404 R407C R134A
Weight:	45 KG
Color:	Green
Power:	2HP
Type:	Refrigeration Compressor
Model Number:	2FES-2Y-40S
Warranty:	1 Year
Power Source:	AC POWER

Contact Now

Add to Cart

Company Info.

Shenzhen Ruifujie Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

2HP 2FES-2Y-40S Semi Hermetic Compressor For Cold Room

Product Overview

Semi-hermetic screw compressor designed for low temperature applications and high capacity requirements. Ideal for large freeze rooms with advanced protection features.

CSH/CSW Series compatible with R-22, R-134a, R407C refrigerants
Cost-effective solution with wide application range and strong capacity
Professional design with comprehensive protection against inversion, overheating, overload, exhaust temperature, low oil level, and oil flow issues

Applications

Widely used across various industries including:

Supermarkets
Food industry
Chemical industry
Hotels and restaurants
Medical services

Model Specifications

Compressor Model Comparison

Model	Displ. @1450r/min (m³/h)	Cylinders	Oil Charge (dm³)	Weight (Kg)	Discharge Line	Suction Line
2KES-05Y	4.06	2	1	43	12mm (1/2")	16mm (5/8")
2JES-07Y	5.21	2	1	43	12mm (1/2")	16mm (5/8")
2HES-1Y	6.51	2	1	44	12mm (1/2")	16mm (5/8")
2HES-2Y	6.51	2	1	45	12mm (1/2")	16mm (5/8")
2GES-2Y	7.58	2	1	45	12mm (1/2")	16mm (5/8")
2FES-2Y	9.54	2	1	45	12mm (1/2")	16mm (5/8")
2FES-3Y	9.54	2	1	47	12mm (1/2")	16mm (5/8")

Technical Specifications - 2FES-2Y Model

Parameter	SI Units	Imperial Units
Displacement (1450 RPM 50 HZ)	9.54 m³/h	336.9 CFH
Displacement (1750 RPM 60 HZ)	11.51 m³/h	406.5 CFH
No. of cylinder × bore × stroke	2 × 46mm × 33mm	2 × 1.81inch × 1.3inch
Weight	45 kg	99 lb
Max pressure (LP/HP)	19/32 bar	275/464 psi
Connection suction line	16mm-5/8"	16mm-5/8"
Connection discharge line	12mm-1/2"	12mm-1/2"
Motor version	2	2
Starting current (Rotor locked)	22.5 A	24.0 A
Motor voltage	380-420V Y-3-50 HZ	440-480V Y-3-60 HZ UL
Max operating current	5.3 A	5.3 A

Product Images

Product Tags:

2FES-2Y

2HP Bitzer Cold Room Compressor

2HP 2FES-2Y-40S Semi Hermetic Compressor For Cold Room
