| Categories | Water Purification Membrane |
|---|---|
| Certification: | SGS |
| Place of Origin: | China |
| MOQ: | Negotiatable |
| Price: | Negotiatable |
| Delivery Time: | 5-20 working days after order confirmed by the factory |
| OEM/ODM: | Accept |
| Configuration: | End port or side port/end entry or side entry |
| Material: | 304/316L stainless steel |
| Color: | Polished or Mirror Polish |

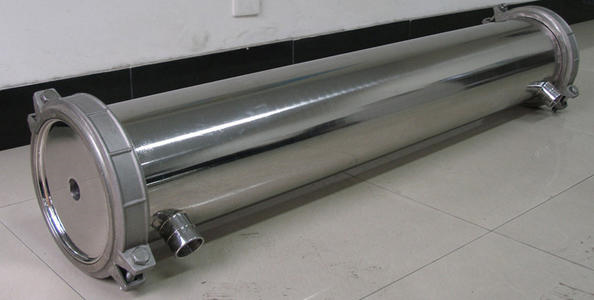

SS membrane housing is the basic component of reverse osmosis equipment and RO system. The material is 304 or 316L stainless steel seamless tubes. Sealing form of end cover includes: clamp, flange, built-in; Water inlet mode covers end port and side port. The length is matched with the number of reverse osmosis membrane components. Inside and outside of the tube is polished.
SS Membrane Housing Specification:
| Specifications | End port | |
| Available pressure rating (psi) | 400 | |
| Length (No. of elements) | For 1-4 pcs of Membrane Element | |
| Housing Material | 304 Stainless Steel or 316L Stainless Steel | |
| Cap Material | SS304 or SS316L | |
| Closure | Victaulic,Tri-clover, Clamp | |
| Design Pressure | 400PSI | |
| Finishing | Polished or Mirror Polish | |
| Operating Temp | 0-95℃ | |
SS Membrane Housing Dimensions:
| Model | L (mm) | L1 (mm) | D (mm) | A | B |
| 8040-1 | 1252 | 1082 | 203 | 1 1/2'' | 1'' |
| 8040-2 | 2268 | 2098 | 203 | 1 1/2'' | 1'' |
| 8040-3 | 3284 | 3114 | 203 | 1 1/2'' | 1'' |
| 8040-4 | 4300 | 4130 | 203 | 1 1/2'' | 1'' |
| 8040-5 | 5316 | 5146 | 203 | 1 1/2'' | 1'' |
| 8040-6 | 6332 | 6162 | 203 | 1 1/2'' | 1'' |
|
