| Categories | Powder Grinder Machine |
|---|---|
| Brand Name: | Brightsail |
| Model Number: | BSP |
| Certification: | CI |
| Place of Origin: | China |
| MOQ: | one set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 20 sets per month |
| Delivery Time: | 30-35 days |
| Packaging Details: | Container |
| Product name: | highly efficient teff flour making machine |
| Material: | SS 304/316 |
| Capacity: | 20-1800 kg/h |
| Input size: | <15mm |
| Fineness: | 60-2500 mesh |
| Crusher motor: | 11-75kw |
| Application: | food,chemical,pharmaceutical,etc |
| Company Info. |
| Jiangyin Brightsail Machinery Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
<15mm Teff Milling Machine With Long Service Life
BSP flour milling machine is made up of crusher, cyclone, dust collector, blower and electric control box with the capabilities of winnowing, non-sieve or mesh, equality of granule size, and continuous processing etc,it is also one of the best-selling products of our company, which is a very good choice for customers with large production demand. Of course, our overseas customers are also very satisfied with this product.
Main components:
(1)The left motor is crush motor;the right motor is classifier
motor.It adopts a small screw feeder, make sure feed speed is even
and controllable.
(2)Material enters the mill chamber via screw conveyor where it is
sheared and milled by fast- rotating blades.The powder passes the
guide ring and enters the classifier chamber.
(3)Rotary valve make powder discharge speed even,Rotary valve is
also made of stainless steel and to clean it and dismantle is
convenient.
(4)Dust is collected inside the dust collecting box.

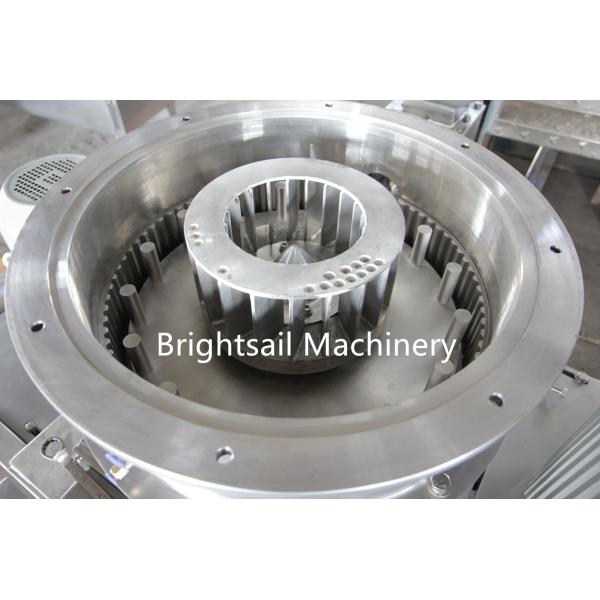

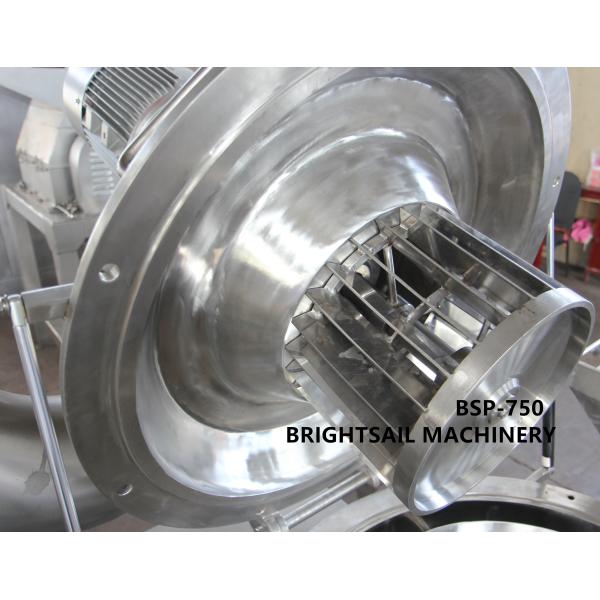

Detailed Images:
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 60-2500 | 60-2500 | 60-2500 | 60-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | -6500 | -5350 | -4600 | -3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Why Choose Us:
Since the establishment of the company, we have been constantly enhancing our service awareness and product specialization under the encouragement of customers, and we have exported machine to over 30 countries.For example, New Zealand, Germany, Poland, Thailand, Pakistan, Qatar, Nigeria and many other countries.So there is no need to worry about our expertise in this field.
|
