Digital Rotary UV Varnish Printing and Cold Foiling machine

Categories Digital Inkjet Printer
Brand Name: ECOOGRAPHIX
Model Number: EcooSpark
Certification: CE
Place of Origin: China
MOQ: 1SET
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 500SETS
Delivery Time: 30DAYS
Packaging Details: Standard Export Packing
Max Roll Width: 288 to 450mm
Material: coated paper,PP film,metalized film,shrink film
Functions: UV varnishing,cold foiling , embossing,lamination
Speed: up to 50m per minute
Voltage: 380V/50HZ , 63KW
Print heads: 5pcs KM 1024i
Packing: 337cm*220cm*230cm(L x W x H)
Gross Weight: 2500KGS
Warranty: 3 Years
Configurations: Web guide,conora,tention control, UV LED
HS Code: 844140
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

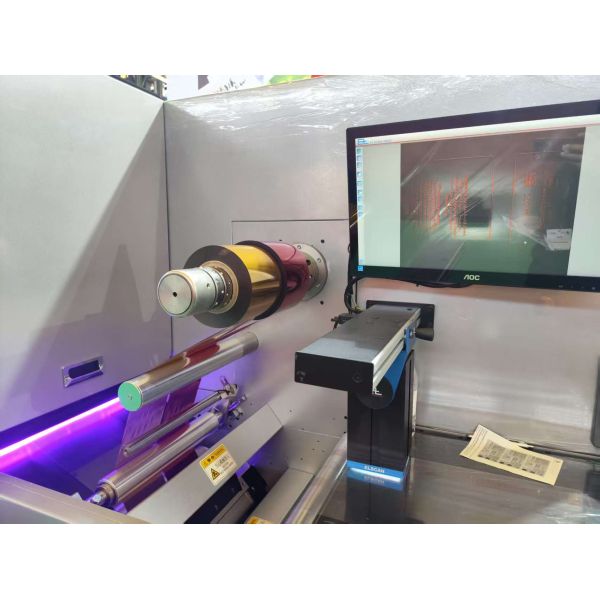

Digital Rotary UV Varnish Printing and Cold Foiling machine

Digital Rotary UV Varnish Printing and Cold Foiling machine


Started in 2018, EcooSpark is the pioneer as the first digital varnishing and foiling machine with over 45 units installations worldwide by now. It is now the 5th generation. Simple design, robustness, reliability and state of art quality are core strengths. This machine can do UV spot varnishing, cold foil stamping, braille printing ,3D embossing and etcs, by KM print head and digital LED UV Inkjet technology.
With about 20 years' exporting experience,we have many customers worldwide, such as OEM for Presstek/Mark Andy , and Sttark in USA,Beneco in Canada, Imaks in Latvia, Focus Print Group in Australia,TSG in Mexico,Esen Graphics in Turkey and so on.We can provide customers reliable quality products with competitive prices.

EcooSpark is the ideal digital label finishing embellishment machine for most digital label printers such as HP Indigo, Xeikon,Screen Truepress and other similars.

Model EcooSpark
Printing TechnologyUV Piezo DoD(drop on demand)-inkjet
Resolutionup to 1440*360 dpi
Printing speed10m/min - 60m/min(depend on polymer layer thickness)
Variable Image systemPDF, optimized PDF, Optional barcode system
Supported image standardsPDF,PDF/VT,TIFF, JPEG, BMP & other data base files
SubstratesOffset, Digital, Plastics, Laminated and coated substrates
Printing image width288mm (extendable to 320 mm) * 10 m (Length)
PolymerWB-DS-Clear Polymer
Polymer layer thicknessFrom 10 up to 180 microns
Ink curingInter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameterMax. 700mm, Core 76mm
Rewinder diameterMax. 700mm, Core 76mm
Substrates thickness30-400 micro
Substrates widthMax 330mm
Press with Foil stationMachine dimensions (LxHxW) 3500mmx1900mmx1800mm
Operating environmentTemperature: 15℃-30℃, Humidity: 40%-80% relative humidity

Electrical requirements

Voltage: 3x380, ±5% 3 phases +G+N ; Frequency: 50/60 Hz

Current: Avg. 25 Amps

Weight2800kg


The strength of our machine configurations are :
1)Full Sets of Mitsubishi servers;
2)HeFeng Corona Treatment;
3)Web guide and Monitoring System: E+L;
4) Full Led-UV curing system;
5) Printing Software: GIS UK;
6)Auto Cleaning System;
7) KM 1024i print head;
8) Multiple sensors for tention control.
There are 288mm, 330 mm and 430 mm model optional (printing width). Most of our machines are used for about 5years now with no trouble,customers are very pleased with the machine stable and perfect performance. We can provide 3 years'warranty for the machine and print heads. Prices and trading terms are negotiable.




FAQ:

Q:Why choose us ?
A: We are manufacturer .We have strict QC policy to control the producing process,strong technica team and after-sales service team to offer best support,try our best to exceeding your expectations.
-Inquiry will be replied with 24 hours.
-OEM service is available.
-Protect your design & information.

Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.

Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.

Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .

Q: What time for delivery ?
A: Machine about 45 days after get your deposit.

Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker until the machine normal running.
-If you meet any problem at any time,we could offer the technical support on line as well.

Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight or D/P etc.


Q: Do you have any certificates?
A:We have CE and ISO certificates .

Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Wenzhou city ,Zhejiang province .We can pick you up from either Shanghai or Wenzhou airport or station by high-speed rail.


Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
