| Categories | Foil Stamping Die Cutting Machine |
|---|---|
| Brand Name: | EcooGraphix |
| Model Number: | ECOO-TD1060S |
| Certification: | ISO9000, CE |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 500 Sets/year |
| Delivery Time: | 45 Days |
| Packaging Details: | Standard export packing |
| Classification: | Foil stamping die cutting machine |
| Maximum Speed(s/h): | 7500 |
| Stock Range: | Cardboard 90-2000g/sqm (E, B flute) |
| Maximum Sheet(mm): | 1060x740 |
| Minimum Sheet Size(mm): | 400x360 |
| Max. Die Cutting Size(mm): | 1040x730 |
| Height Of Cutting Rules(mm): | 23.8 |
| Min. Gripper Margin(mm): | 4 |
| Air Supply: | 0.8-1.0 mpa, ≥0.6 cubic meters/min |
| Company Info. |
| Hangzhou Ecoographix Digital Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
7500Sheets Per Hour Automatic Die Cutter With Stripping
==============================================================
==============================================================
| Model | ECOO-TD1060S |
| Maximum Sheet Size(mm) | 1060 x 740 |
| Minimum Sheet Size(mm) | 400 x 360 |
| Max. Die Cutting Size(mm) | 1040 x 730 |
| Height Of Cutting Rules(mm) | 23.8 |
| Maximum Pressure(N) | 300 x 104 |
| Inside Chase Size(mm) | 1120 x 760 |
| Stock Range | Cardboard 90-2000g/m² (E, B flute) |
| Min. Gripper Margin(mm) | 4 |
| Maximum Speed(s/h) | 7500 |
| The Thickness Of Stamping Plate(mm) | 5 |
| Feeding Pile Height(mm) | 1150 |
| Delivery Pile Height(mm) | 1100 |
| Rated Power(kw) | 23 |
| Air Supply | 0.8-1.0 MPa, ≥0.6m3/min |
| Overail Dimension(mm) | 6000 x 4200 x 2400 |
| Weight Of Machine(kg) | 16000 |
==============================================================


Taiwan OEM Feeder
Taiwan OEM Feeder, assures stable and smooth paperfeeding,
suitable for stocks from thin paper to 4mm corrugated board.

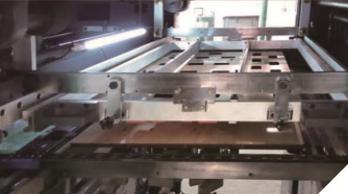

Stripping Unit
Smart stripping design leads to quick make readies and
job change-over, together with accurate stripping even
with complex jobs.

Taiwan OEM Side Lay
Both pull and push functions integrated in one side lay, easy and
convenient setting is obtainable,
side lay to apply to the stable positioning of all kinds of paper running at high speed.
==============================================================
From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.







|
Q2: Where is your factory ?
|
|
Q4: Can you also supply the Workflow and RIP ?
|
These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction. |
|
